Jet  |  SKU: JT9-414226  |  Barcode: 662756127846

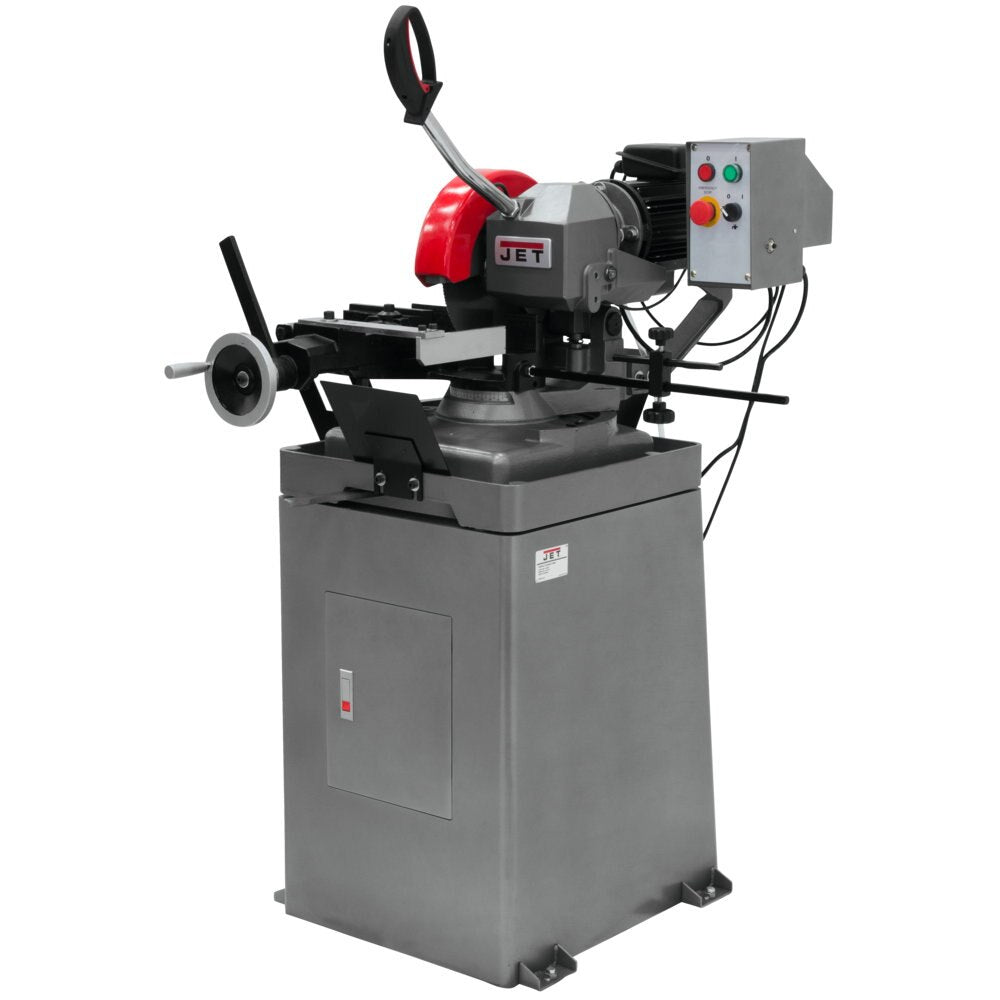

Jet JT9-414226 CS-275, 275mm Ferrous Manual Cold Saw

Free Shipping
$2,989.00 $3,561.43

Description

Jet 414226 Description

JET Coldsaws deliver clean, burr-free cuts and offer machine shop and fabrication professionals a list of features and standard design characteristics that you’ve come to expect from JET. All backed by the industry leading full service Two Year Warranty

Jet 414226 Features

  • Now available in Single Phase 115V
  • Two-piece cast iron blade guard system permits quick and easy blade changes without removing the guards
  • Quick clamping cam-action vise with adjustable gib and material support bar for burr-free cutting operations
  • Hardened and ground direct drive worm shaft and bronze worm wheel transmits maximum torque to the saw blade
  • Blade drive reduction gearbox operates in an oil bath for increaded durability
  • Heavy-Duty cast iron frame base with easy access storage provides a stable cuting platform
  • 1-1/3 Gallon coolant reservoir and pump with flow control system extends blade life
  • Quick tension and release mitering capabilities with stops at 45° right, 45° left
  • Fully adjustable material depth stop for sawing repeatability and increased production

Jet 414226 Specifications

Tubing Rectangle at 45 Degrees (In.) 2-1/5 x 2
Blade Speeds (RPM) 54, 108
Solid Round at 45 Degrees (In.) 3-2/7
Overall Dimensions (L x W xH) (In.) 40 x 39 x 72
Weight (Lbs.) 360
Solid Square at 45 Degrees (In.) 2-1/5 x 2-1/5
Style (Type) SV_1375591258785
Blade Size (Mm.) 275 x 32 x 2
Maximum Vise Opening (In.) 4
Solid Rectangle at 90 Degrees (In.) 3-1/9 x 2
Tubing Round at 45 Degrees (In.) 3-2/7
Tubing Round at 90 Degrees (In.) 3-2/7
Solid Square at 90 Degrees (In.) 2-1/2 x 2-1/2
Tubing Rectangle at 90 Degrees (In.) 3-1/9 x 2
Solid Round at 90 Degrees (In.) 3-2/7
Tubing Square at 45 Degrees (In.) 2-1/5 x 2-1/5
Solid Rectangle at 45 Degrees (In.) 2-1/5 x 2
Tubing Square at 90 Degrees (In.) 2-1/2 x 2-1/2
Motor (HP) 1-1/2 HP, 230V, 3Ph
