Jet JT9-414450 J-7015, 8" x 13" Horizontal Bandsaw
Description
Description
Jet 414450 Description

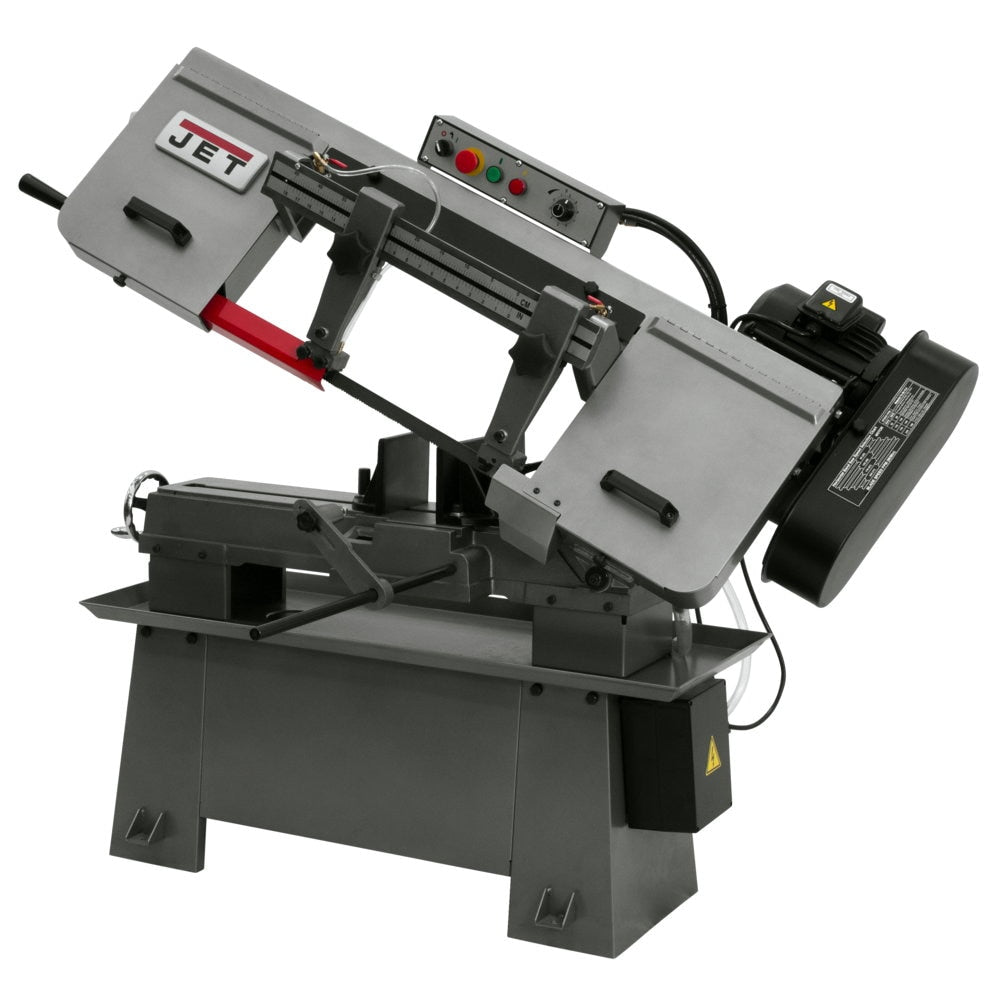

The JET J-7015 Horizontal Bandsaw was manufactured for long lasting, efficient use. Designed to deliver accurate cuts without undue blade fatigue, this JET saw works longer and stronger so productivity never suffers.
Jet 414450 Features
- For added safety, the J-7015 follows strict guidelines and electrical requirements to be certified by CSA Group
- Dual voltage electrics (115/230V) with overload and low voltage protection
- Heavy-Duty transmission utilizes hardened and ground gears operating in an oil bath
- Fully adjustable hydraulic downfeed system
- Carbide blade guides feature parallel double-row ball bearing support
- Longer blade wheel base reduces blade fatigue and increases blade life
- Heavy-duty, rigid steel and cast iron construction of the head and base provides full blade support, eliminating vibration and deflection
- Conveniently located control panel and easily accessible coolant system
- Easy-to-use belt drive tensioner does not require tools for blade speed changes or belt replacement
- Quick-positioning vise with fully adjustable jaws, swivels to 45°
Jet 414450 Specifications
Round at 90 Degrees (In.) | 9 |
Blade Size (In.) | 1 x .035 x 114-1/2 |
Drive | Belt Drive |
Blade Speeds (SFPM) | 82, 132, 170, 235 |
Round at 45 Degrees (In.) | 9 |
Rectangle at 90 Degrees (In.) | 9 x 13 |
Blade Wheel Diameter (In.) | 11-5/8 |
Square at 90 Degrees (In.) | 8-1/2 |
Bed Height (In.) | 27-1/2 |
Cutting Capacity (W x D) (In.) | 8 x 13 |
Rectangle at 45 Degrees (In.) | 9 x 8 |
Weight (Lbs.) | 506 |
Vise Swivels (Deg.) | 45° |
Blade Length (In.) | 114-1/2 |
Motor (HP) | 1-1/2 HP, 115/230V, 1Ph |
Overall Dimensions (L x W x H) (In.) | 62-1/2 x 23 x 48 |
