Jet | SKU:
JT9-414457

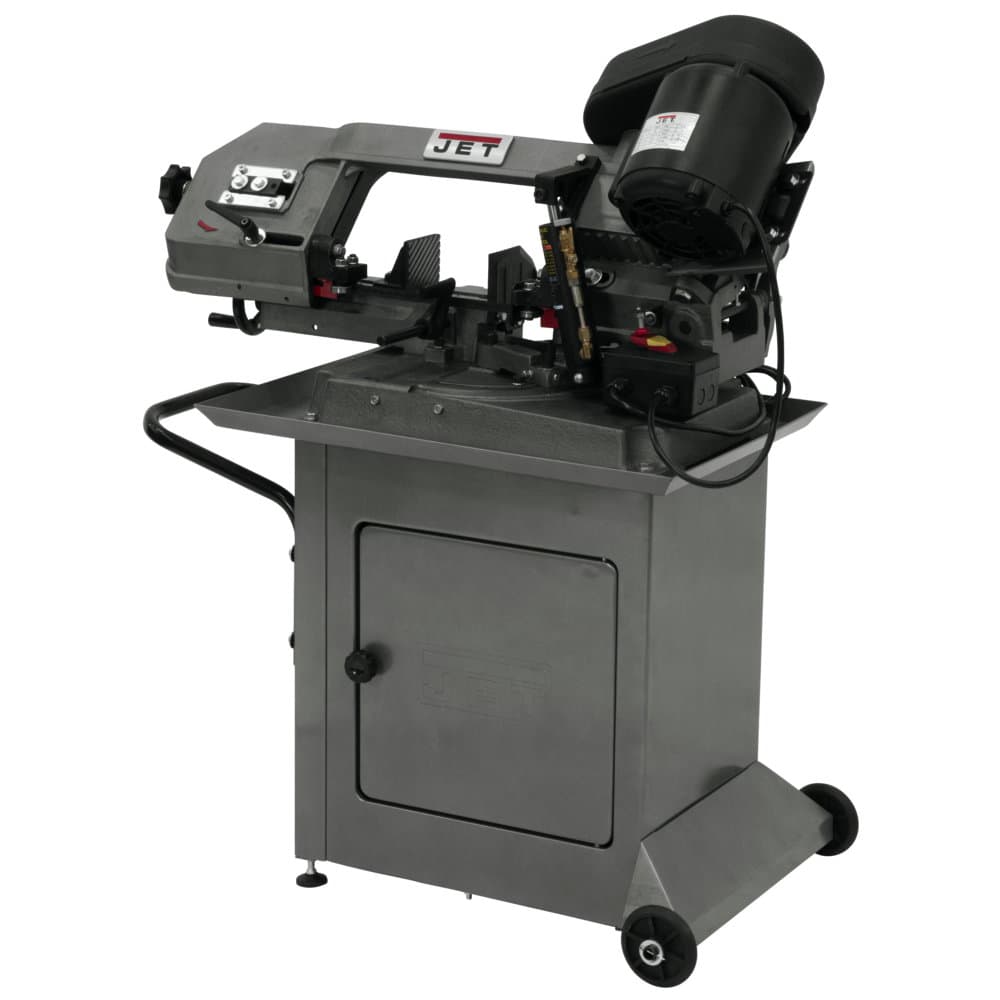

Jet JT9-414457 HBS-56S, 5" x 6" Horizontal Mitering Bandsaw
Free Shipping
$1,329.00
$1,588.57
Unit price
/
Unavailable
Description
Description
Jet 414457 Description
JET Mitering Horizontal bandsaws unique design features a swiveling head while the base remains stationary. This allows the stock to remain same position while making accurate crosscuts and miters. Backed by the industry leading two year warranty, JET Mitering Bandsaws are built to last and deliver precision results.
Jet 414457 Features
- For added safety, the HVBS-56S follows strict guidelines and electrical requirements to be certified by CSA Group
- Blade drive is a sealed, steel, heat treated worm driving a bronze worm gear in an oil bath
- Mitering head swivels to cut any angle 0° - 60° while the work piece remains secured
- Ball bearing supported blade wheel
- Fully adjustable hydraulic downfeed system
- Deluxe enclosed stand with wheels and handle for easy movement
- Adjustable material stop
- 1/2" Carbon Steel Blade
Jet 414457 Specifications
| Bed Height (In.) | 28 |
| Blade Length (In.) | 64-1/2 |
| Blade Size (In.) | 1/2 x .025 x 64-1/2 |
| Blade Speed (SFPM) | 80, 120, 200 |
| Blade Wheel Diameter (In.) | 7-3/8 |
| Cutting Capacity (W x D) (In.) | 5 x 6 |
| Drive | Belt Drive |
| Head Movement (Deg.) | 60° |
| Motor (HP) | 1/2 HP, 115/230V, 1Ph |
| Rectangle at 45 Degrees (In.) | 4 x 2-3/4 and 2 x 3-3/4 |
| Rectangle at 90 Degrees (In.) | 5 x 6 and 2 x 6-3/4 |
| Round at 45 Degrees (In.) | 3 |
| Round at 90 Degrees (In.) | 5 |
| Vise Swivels (Deg.) | 45° |
| Weight (Lbs.) | 172 |
| Overall Dimensions (L x W x H) (In.) | 37 x 20-3/4 x 41 |
| Prewired Voltage (V.) | 115 |
| Rectangle at 60 Degrees (In.) | 5 x 1-3/4 |
| Round at 60 Degrees (In.) | 1-3/4 |
