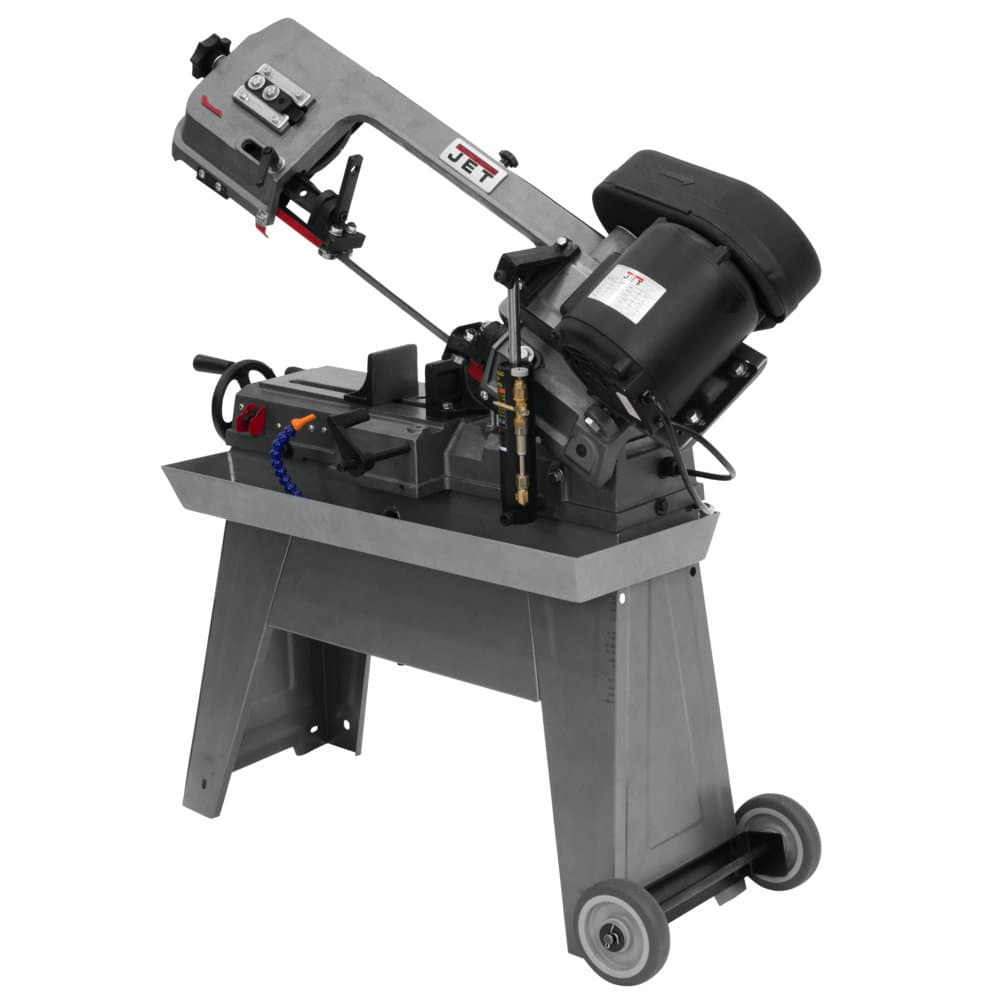

Jet JT9-414461 J-3130, 5" x 8" Horizontal Bandsaw
Free Shipping
$1,399.00
$1,665.71
Unit price
/
Unavailable
Loading delivery estimate...
Description
Description
Jet 414461 Description
Adjustable guides and hydraulic feed, steel worm gear and bronze drive gear, and auto shutoff at end of the cut are some of the features that makes this JET Hydraulic Band Saw a must for any professional machine shop. The built-in handle and wheels makes relocation within your workspace quick and easy.
Jet 414461 Features
- For added safety, the J-3130 follows strict guidelines and electrical requirements to be certified by CSA Group
- Blade drive is a steel, heat treated worm driving a bronze worm gear in an oil bath
- Adjustable blade guides with side eccentric shaft with ball bearings with rear-ball bearings
- Fully adjustable hydraulic downfeed system
- Wheels and handle for easy movement
- Adjustable material stop
- 1/2" Carbon Steel Blade
Jet 414461 Specifications
| Round at 90 Degrees (In.) | 5 |
| Blade Size (In.) | 1/2 x .025 x 68 |
| Drive | Belt Drive |
| Blade Speeds (SFPM) | 85, 125, 200 |
| Round at 45 Degrees (In.) | 4-1/2 |
| Rectangle at 90 Degrees (In.) | 7-1/2 x 5 |
| Blade Wheel Diameter (In.) | 7-1/2 |
| Bed Height (In.) | 23-1/2 |
| Cutting Capacity (W x D) (In.) | 5 x 8 |
| Rectangle at 45 Degrees (In.) | 4-1/2 x 5 |
| Weight (Lbs.) | 134 |
| Vise Swivels (Deg.) | 45° |
| Blade Length (In.) | 68-1/2 |
| Motor (HP) | 1/2 HP, 115V, 1Ph |
| Overall Dimensions (L x W x H) (In.) | 37 x 16 x 37 |
