Jet | SKU:
JT9-414466

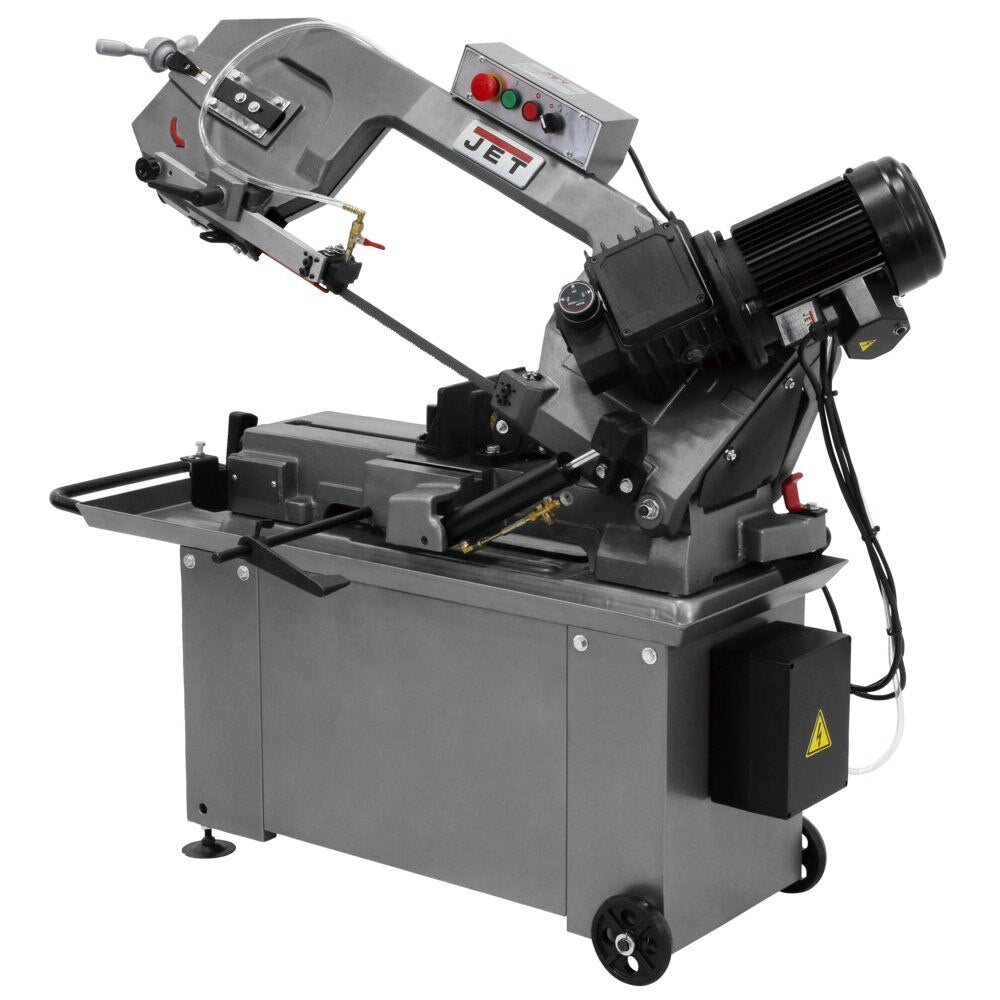

Jet JT9-414466 HBS-814GH, 8" x 14" Horizontal Geared Head Bandsaw
Free Shipping
$3,399.00
$4,175.71
Unit price
/
Unavailable
Description
Description
Jet 414466 Description
The JET HBS-814GH was engineered with the operator in mind. An easy access control panel and heavy-duty geared head transmission for quick speed change means productivity never slows. Like every JET machine we manufacture, professionals know they can rely on this saw when the project is on the line.
Jet 414466 Features
- Hardened and ground drive shaft and worm gears transmit maximum torque to blade wheels
- Heavy-duty geared head transmission for quick speed changes
- Fully adjustable hydraulic downfeed system
- Easily accessible saw control panel
- Quick-positioning vise with fully adjustable jaws, swivels to 45°
- Built-in, self propelled blade brush extends blade life
- Wheels permit easy storage and movement
- Coolant system
- Adjustable material stop
- 3/4" Bi-Metal blade
Jet 414466 Specifications
| Round at 90 Degrees (In.) | 8 |
| Blade Size (In.) | 3/4 x .035 x 97 |
| Drive | Geared Head |
| Blade Speeds (SFPM) | 135, 197, 256 |
| Round at 45 Degrees (In.) | 6-1/2 |
| Rectangle at 90 Degrees (In.) | 14 x 8 and 2 x 14 |
| Blade Wheel Diameter (In.) | 12 |
| Bed Height (In.) | 26 |
| Cutting Capacity (W x D) (In.) | 8 x 14 |
| Rectangle at 45 Degrees (In.) | 6-1/2 x 6 and 2 x 7 |
| Weight (Lbs.) | 363 |
| Vise Swivels (Deg.) | 45° |
| Blade Length (In.) | 97 |
| Motor (HP) | 1 HP, 115/230V, 1Ph |
| Overall Dimensions (L x W x H) (In.) | 51-1/2 x 18-1/8 x 44 |
| Throat Depth (In.) | 8 |
