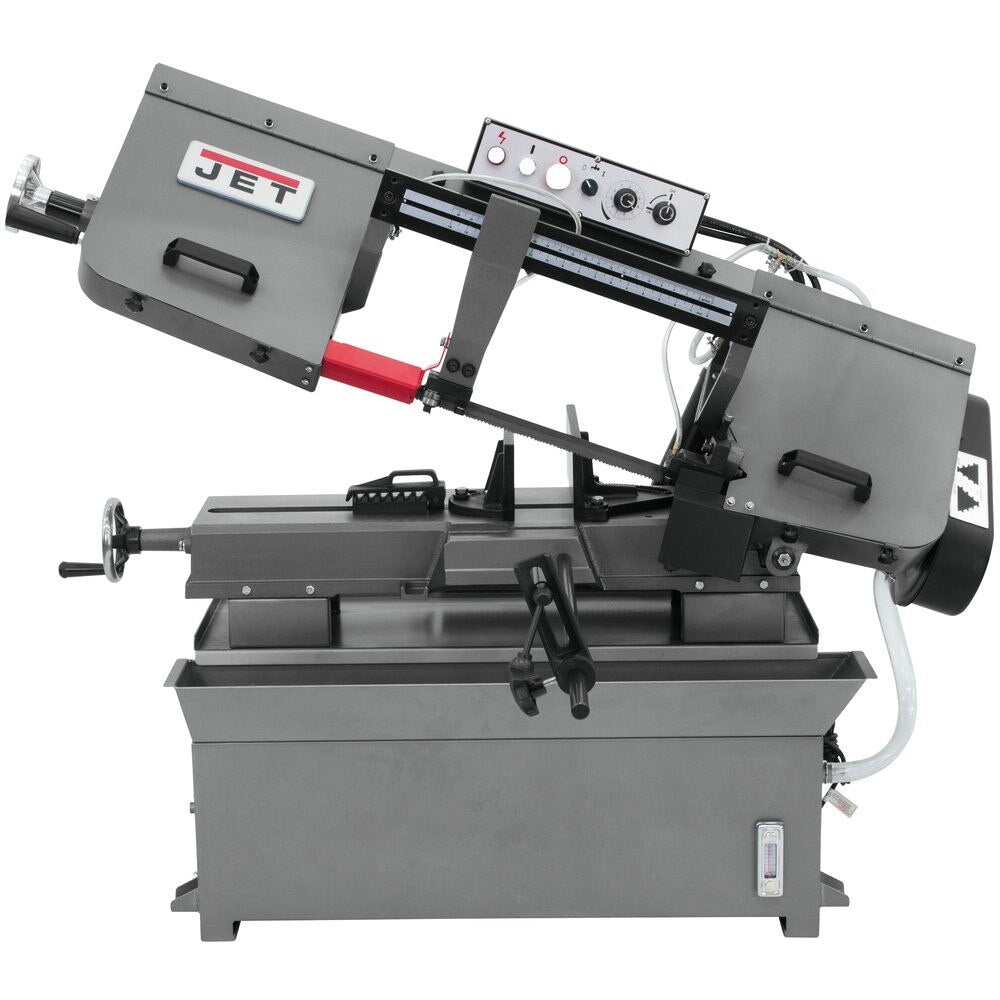

Jet JT9-414468 HBS-916W, 9" x 16" Horizontal Bandsaw
Free Shipping
$5,179.00
$6,345.10
Unit price
/
Unavailable
Loading delivery estimate...
Description
Description
Jet 414468 Description
Large handwheel, built-in gauge, blade guides, quick-positioning vise and removable chip tray are but a few of the features that make this JET Horizontal Bandsaw among the best when compared to the competition. Efficiency, precision and functionality combined to deliver superior results time after time
Jet 414468 Features
- Large hand wheel and built-in gauge provides easy blade tensioning
- Quick-positioning vise with fully adjustable jaws, swivels to 45°
- Easy access chip tray allows quick cleanup
- Blade is fully guarded, regardless of blade guide position
- Carbide blade guides feature parallel double-row ball bearing support
- Coolant is distributed through the blade guides
- Built-in, self propelled blade brush extends blade life
- Fully adjustable hydraulic downfeed with separate on/off control valve
- Automatic shut-off after cut
- Coolant system
Jet 414468 Specifications
| Round at 90 Degrees (In.) | 9 |
| Blade Size (In.) | 1 x .035 x 119-1/2 |
| Drive | Belt Drive |
| Blade Speeds (SFPM) | 82, 132, 170, 235 |
| Round at 45 Degrees (In.) | 6-1/8 |
| Rectangle at 90 Degrees (In.) | 8-1/2 x 14 and 2 x 16 |
| Blade Wheel Diameter (In.) | 13 |
| Bed Height (In.) | 25 |
| Cutting Capacity (W x D) (In.) | 9 x 16 |
| Rectangle at 45 Degrees (In.) | 9 x 6-1/8 |
| Weight (Lbs.) | 704 |
| Vise Swivels (Deg.) | 45° |
| Blade Length (In.) | 119-1/2 |
| Motor (HP) | 1-1/2 HP, 115/230V, 1Ph |
| Overall Dimensions (L x W x H) (In.) | 65 x 28 x 42 |
