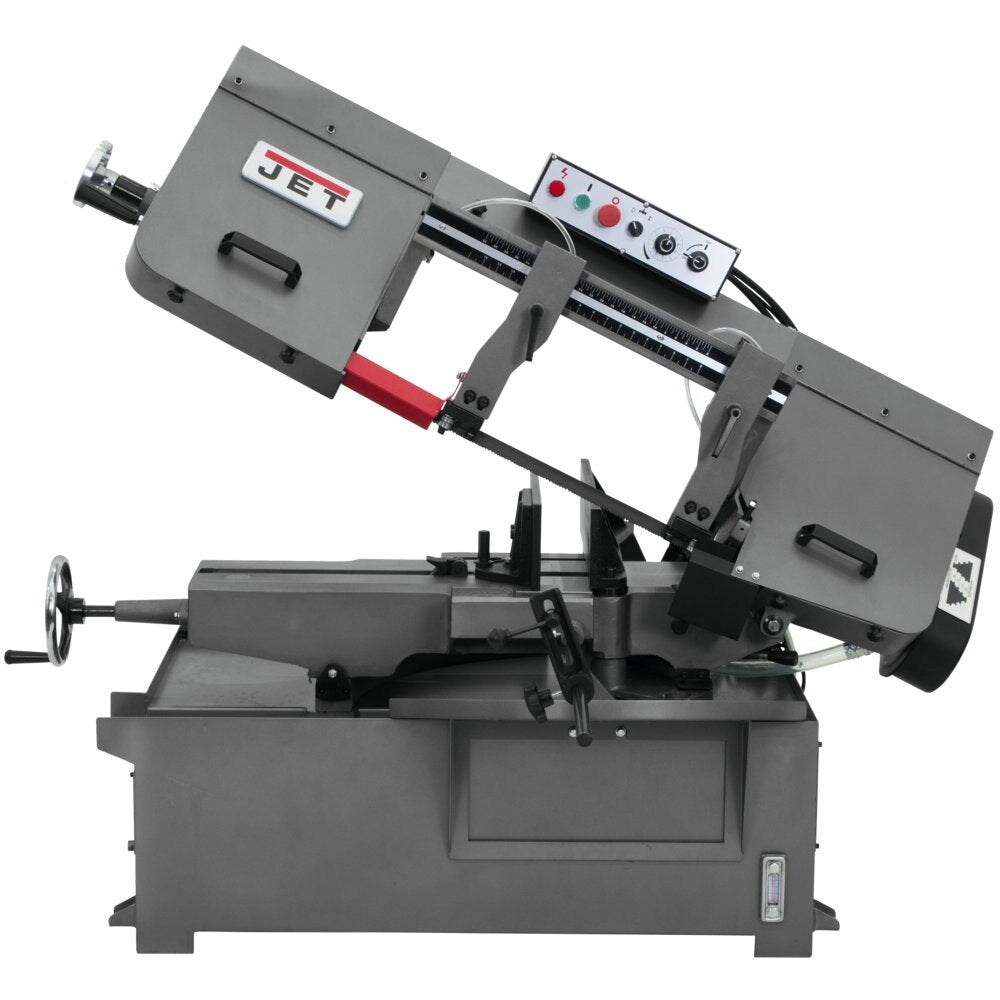

Jet JT9-414479 MBS-1014W-1, 10" x 14" Horizontal Mitering Bandsaw
Free Shipping
$8,299.00
Unit price
/
Unavailable
Description
Description
Jet 414479 Description
JET Mitering Horizontal bandsaws unique design features a swiveling head while the base remains stationary. This allows the stock to remain same position while making accurate crosscuts and miters. Backed by the industry leading two year warranty, JET Mitering Bandsaws are built to last and deliver precision results.
Jet 414479 Features
- Mitering head swivels to cut any angle 0° - 45° while the work piece remains secured
- Large , easy-to-read scale for accurate positioning of the saw head
- Fully adjustable hydraulic downfeed with separate on/off control valve
- Large hand wheel and built-in gauge provides easy blade tensioning
- Carbide blade guides with roller bearings
- Coolant is distributed through the blade guides
- Quick positioning vise reduces set-up time
- Built-in, self propelled blade brush extends blade life
- Automatic shut-off after cut
- Coolant system
Jet 414479 Specifications
| Bed Height (In.) | 25 |
| Blade Length (In.) | 130 |
| Blade Size (In.) | 1 x .035 x 130 |
| Blade Speed (SFPM) | 82, 132, 210, 330 |
| Blade Wheel Diameter (In.) | 14 |
| Cutting Capacity (W x D) (In.) | 10 x 14 |
| Drive | Belt Drive |
| Head Movement (Deg.) | 45° |
| Motor (HP) | 2 HP, 230V, 1Ph |
| Rectangle at 45 Degrees (In.) | 9 x 8-1/2 |
| Rectangle at 90 Degrees (In.) | 10 x 14 |
| Round at 45 Degrees (In.) | 9 |
| Round at 90 Degrees (In.) | 10 |
| Vise Swivels (Deg.) | 45° |
| Weight (Lbs.) | 946 |
| Overall Dimensions (L x W x H) (In.) | 26 x 69 x 44 |
| Prewired Voltage (V.) | 230 Only |
| Throat Depth (In.) | 10-1/2 |
