Jet | SKU:
JT9-414559

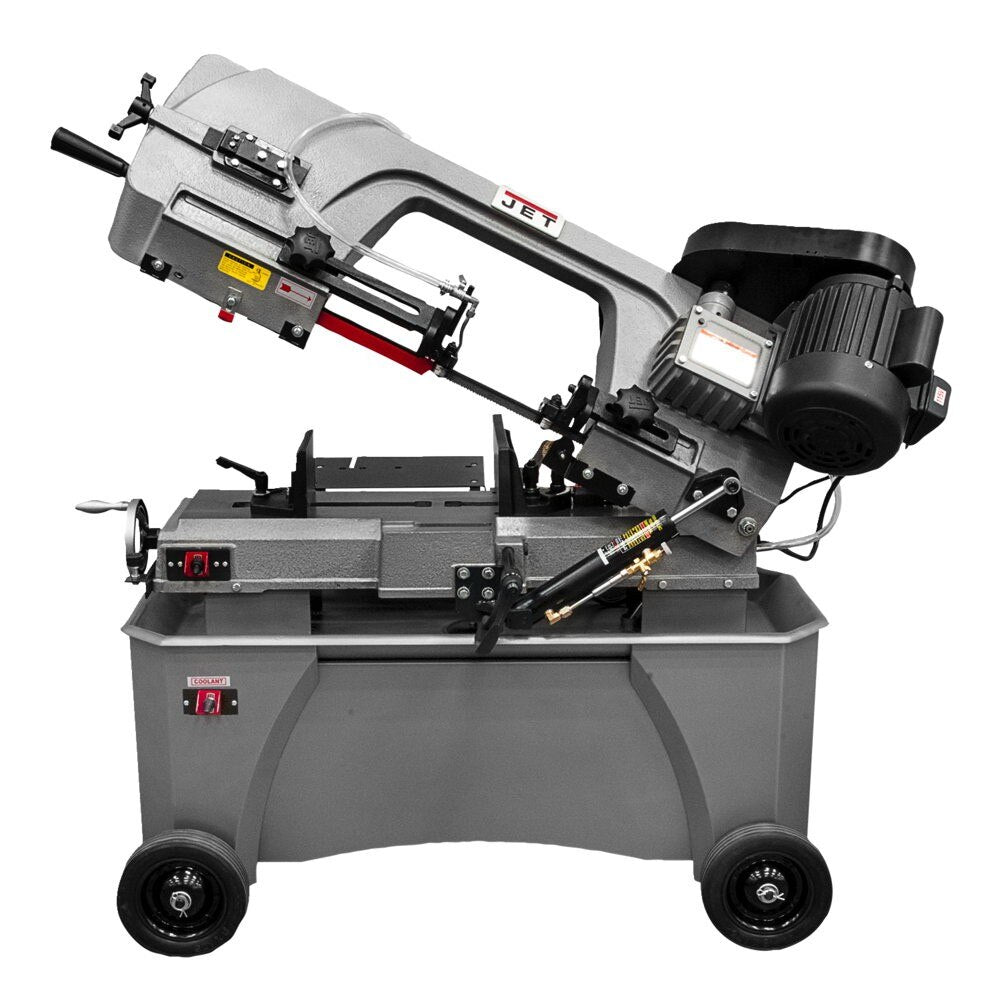

Jet JT9-414559 HVBS-712, 7" x 12" Horizontal / Vertical Bandsaw
Free Shipping
$1,949.00
$2,366.64
Unit price
/
Unavailable
Loading delivery estimate...
Description
Description
Jet 414559 Description
The JET HVBS-712 Horizontal/Vertical Metalworking Bandsaw has everything any operator needs to tackle even the toughest job. JET increased the width and height of the stand and added new features that exceed expectations. The HVBS-712 is another innovative JET product packed with features you’ve come to expect.
Jet 414559 Features
- 9-7/16" x 10" work table in the vertical position
- Rapid action vise miters to 45°
- Improved Height and width of stand with built-in storage cabinet and chip tray
- Adjustable material stop for repeatability
- CSA/CUS Certification
- Blade drive is a belt to sealed, hardened and ground gear drive system
- Blade wheels are made from flanged cast iron for increased durability
- Auto shut-off after cut
- Adjustable ball bearing blade guides
- Cast mounted adjustable hydraulic downfeed
Jet 414559 Specifications
| Round at 90 Degrees (In.) | 7 |
| Blade Size (In.) | 3/4 x 0.032 x 93 |
| Drive | Step Pulley |
| Blade Speeds (SFPM) | 86, 132, 178, 260 |
| Round at 45 Degrees (In.) | 4-1/2 |
| Rectangle at 90 Degrees (In.) | 4 x 11 / 7 x 10-3/8 |
| Blade Wheel Diameter (In.) | 11-3/4 |
| Square at 90 Degrees (In.) | 7 x 7 |
| Bed Height (In.) | 22-1/4 |
| Cutting Capacity (W x D) (In.) | 7 x 12 |
| Square at 45 Degrees (In.) | 4-1/2 x 4-1/2 |
| Rectangle at 45 Degrees (In.) | 6-1/2 x 4-1/2 |
| Head Movement (Deg.) | 0 |
| Vise Swivels (Deg.) | 45 |
| Coolant Capacity (Gal.) | 1 |
| Blade Length (In.) | 93 |
| Motor (HP) | 3/4 HP, 115/230V, 1Ph |
| Overall Dimensions (L x W x H) (In.) | 48 x 17 x 40 |
| Throat Depth (In.) | 7 |
