Jet | SKU:
JT9-414560

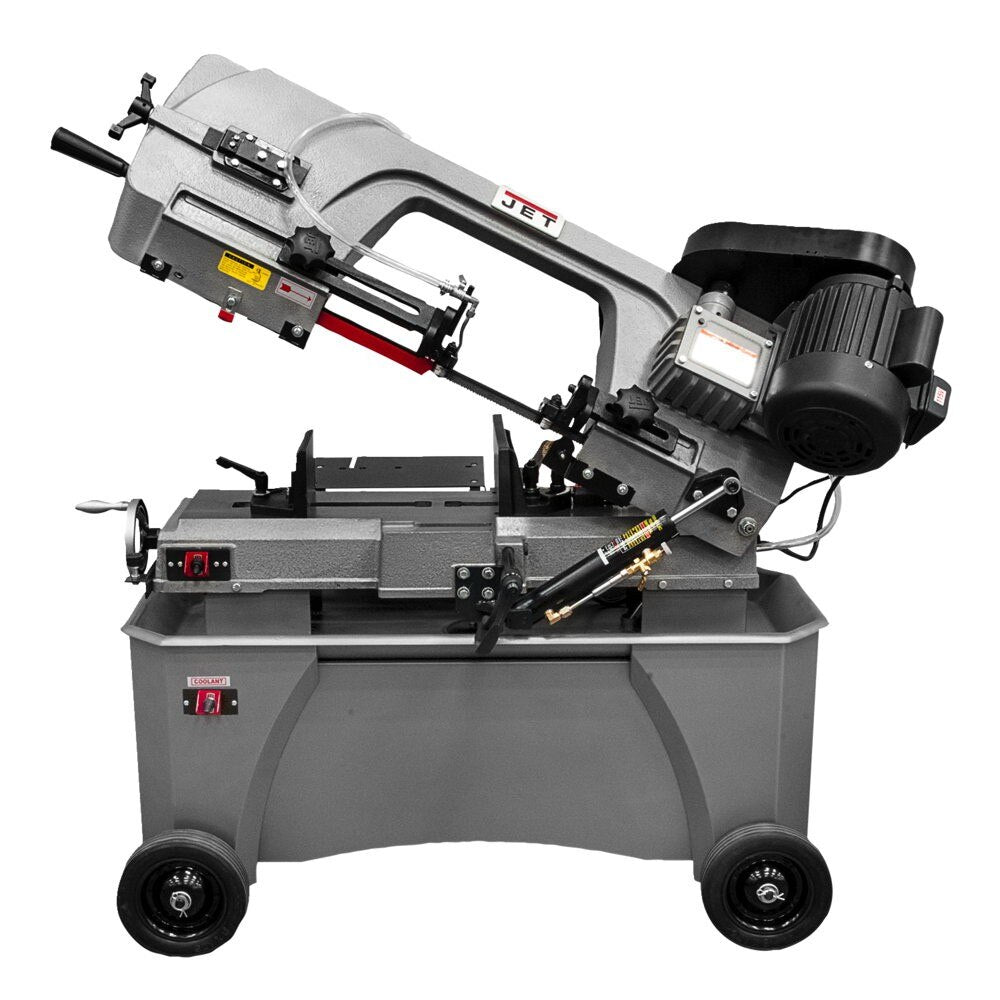

Jet JT9-414560 HVBS-712D, 7" x 12" Deluxe Horizontal / Vertical Bandsaw
$359.01 off
Free Shipping
$1,699.99
$2,059.00
Unit price
/
Unavailable
Loading delivery estimate...
Description
Description
Jet 414560 Description
The JET HVBS-712D Deluxe Horizontal/Vertical Metalworking Bandsaw has everything any operator needs to tackle even the toughest job. Increased the width and height of the stand and added new features that exceed expectations. The HVBS-712D is another innovative JET product packed with features you’ve come to expect
Jet 414560 Features
- Large 10" x 12" infeed table assembly extends the support area and can be used in either horizontal or vertical positions
- Multi-position blade guides enhance use in vertical position by increasing the throat capacity from 4" to 8" and creates a safer working position
- Tool-less quick lock vise with preset mitering positions at 15°, 30° & 45°
- Improved Height and width of stand with built-in storage cabinet and chip tray
- Micro adjustable tool-less material stop for accurate set-up and repeatability
- CSA/CUS Certification
- Blade drive is a belt to sealed, hardened and ground gear drive system
- Blade wheels are made from flanged cast iron for increased durability
- Auto shut-off after cut
- Adjustable ball bearing blade guides
Jet 414560 Specifications
| Round at 90 Degrees (In.) | 7 |
| Blade Size (In.) | 3/4 x 0.032 x 93 |
| Drive | Step Pulley |
| Blade Speeds (SFPM) | 86, 132, 178, 260 |
| Round at 45 Degrees (In.) | 5 |
| Rectangle at 90 Degrees (In.) | 4 x 11 / 7 x 10-1/4 |
| Blade Wheel Diameter (In.) | 11-3/4 |
| Square at 90 Degrees (In.) | 7 x 7 |
| Bed Height (In.) | 22-1/4 |
| Cutting Capacity (W x D) (In.) | 7 x 12 |
| Square at 45 Degrees (In.) | 5 x 5 |
| Rectangle at 45 Degrees (In.) | 6 x 4 |
| Head Movement (Deg.) | 0 |
| Vise Swivels (Deg.) | 45 |
| Coolant Capacity (Gal.) | 1 |
| Blade Length (In.) | 93 |
| Motor (HP) | 3/4 HP, 115/230V, 1Ph |
| Overall Dimensions (L x W x H) (In.) | 48 x 17 x 44 |
| Throat Depth (In.) | 7 |
