Jet  |  SKU: JT9-414800  |  Barcode: 731325450248

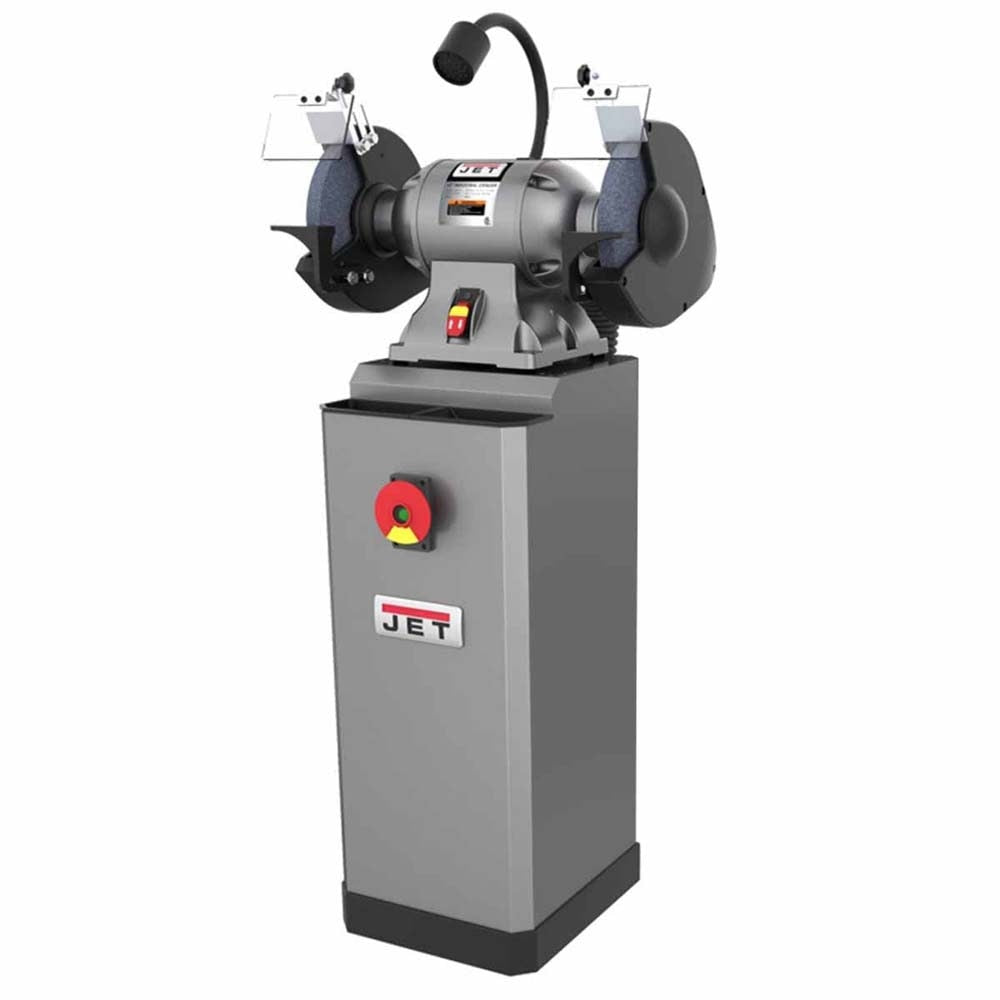

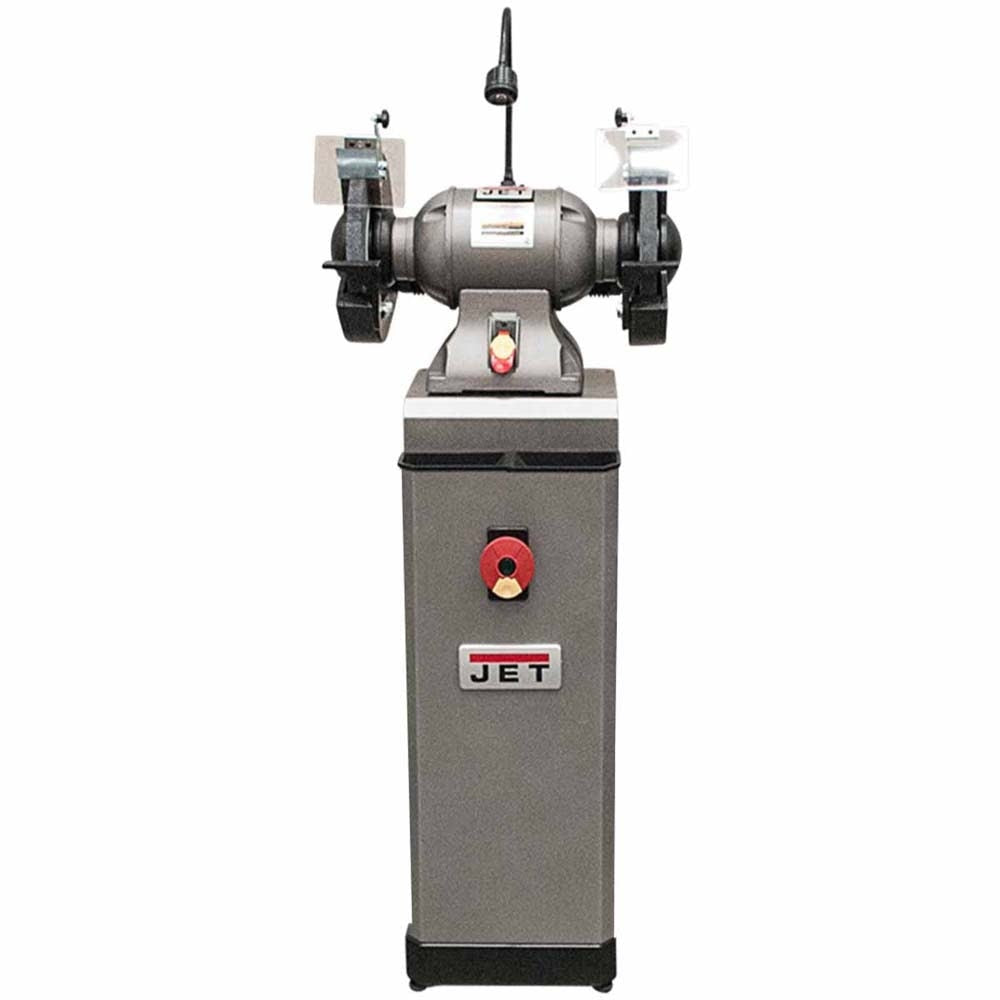

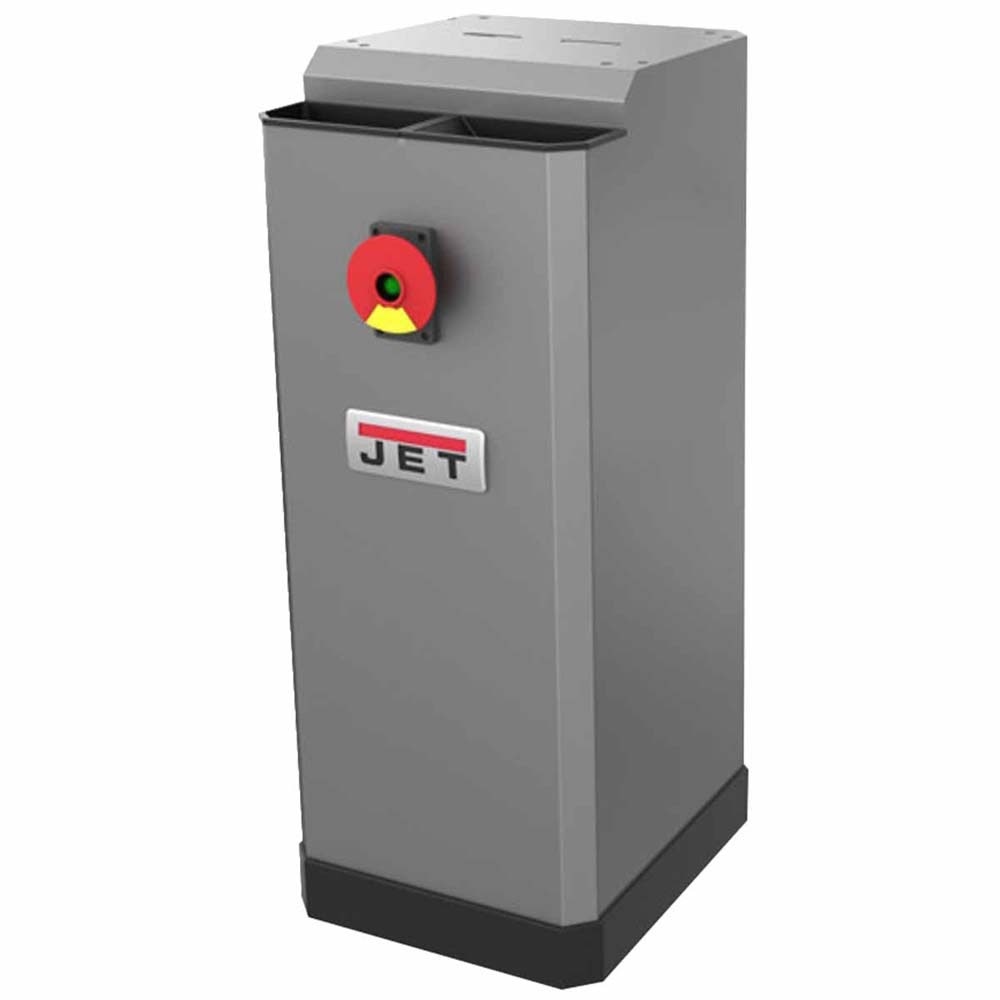

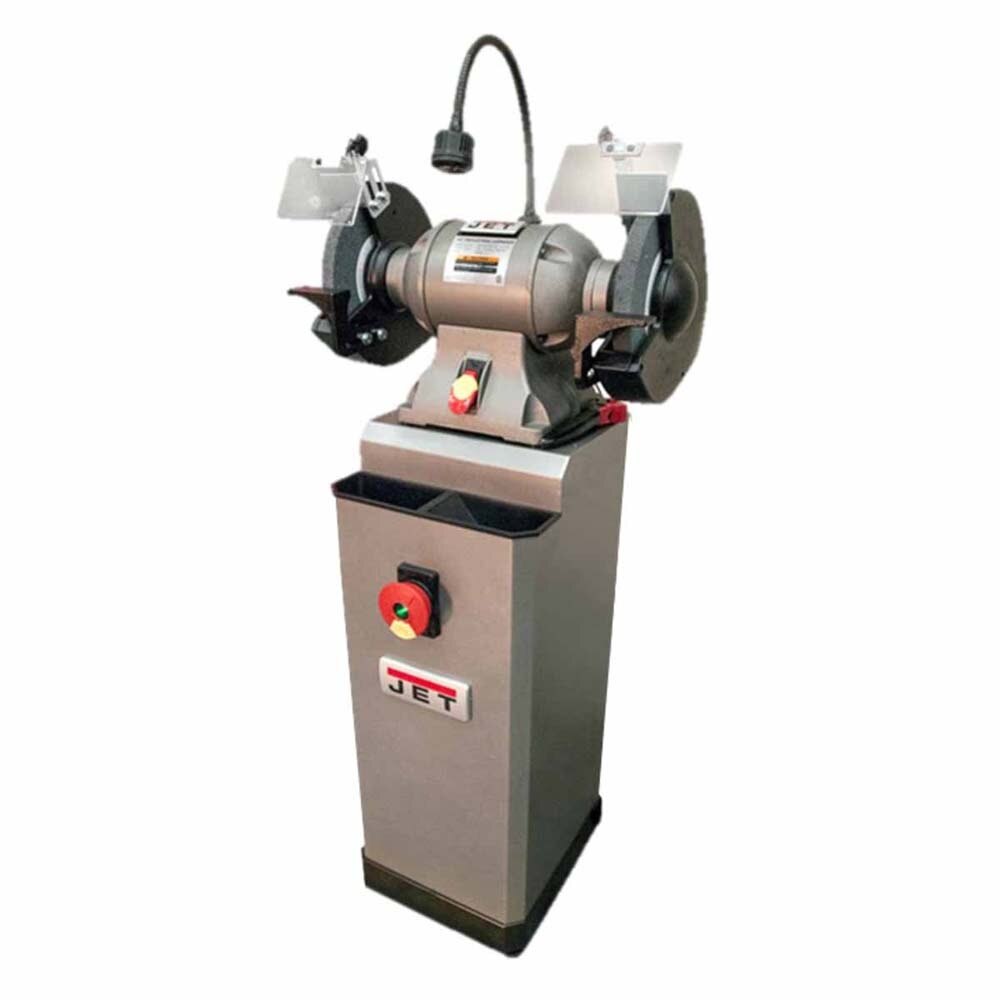

Jet JT9-414800 JDCS-505, Metal Dust Collector Stand 115V

Free Shipping
$1,509.00 $1,831.43
Loading delivery estimate...

Description

Jet 414800 Description

JET’S new Metal Dust Collection Stand is great for collecting abrasive dust from most brands Bench Grinders and Bench Top Belt & Disc Sanders.

Jet 414800 Features

  • Universal Metalworking Dust Collection Stand, fits ANY BRAND bench grinder and bench top belt & disc sanders
  • Turbo fan design provides a maximum of 472 CFM of air movement for effective metal dust collection
  • Non-sparking aluminum fan blade and housing eliminates the risk of fire during the collection of abrasive dust and chips
  • Two removable water pots gives you the features of a pedestal stand along with all the benefits of a dust collector
  • Chips and dust collect into a metal drawer that is easy to empty, and the high temperature filters are replaceable
  • ANY BRAND bench top belt, disc or combination machine can be mounted using the optional Universal Adapter Plate (414830)
  • Two 115V Outlets on side of unit for bench grinders & lamps
  • Heavy-Duty 16 gauge steel construction
  • Four Adjustable Leveling Pads
  • Large On/off switch with safety key

Jet 414800 Specifications

Motor (HP) 1/2 HP, 115V, 1Ph (20A)
Hose Size (W x L) (In.) 2 Inlets @ 3"
Overall Dimensions (L x W xH) (In.) 15-1/2 x 16 x 32-1/4
Style (Type) Stand
Maximum Hose Velocity (SFPM) 3,465
Filter Efficiency 90% @ 50 Microns
Filter Size (W x L x D) (In.) 6-3/4 x 2-5/8 x 13-1/2
Maximum CFM 472
Sound Rating (Db.) 75 db @ 10 Ft
Static Pressure (Wc.) 748
Max. Static Pressure (Wc.) 2,440
