Jet | SKU:
JT9-415560

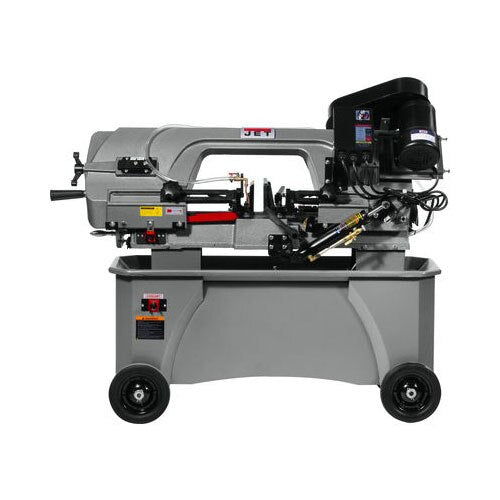

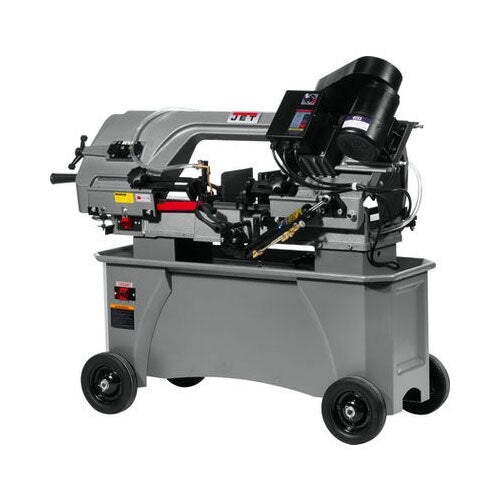

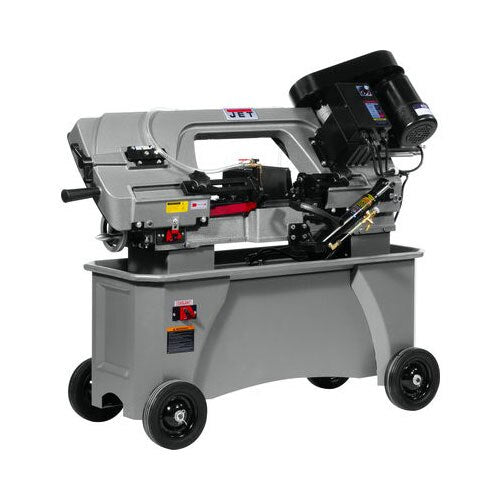

Jet JT9-415560 Vari-Speed Horizontal/Vertical Bandsaw Deluxe, 7"x12" 1HP
Free Shipping
$2,389.00
$2,900.93
Unit price
/
Unavailable
Loading delivery estimate...
Description
Description
Jet 415560 Description
The JET HVBS-712DV Horizontal/Vertical Variable Speed metalworking bandsaw’s industry-leading innovation is centered around increased output and operator safety. Powered by a 3-step gear one horse power DC motor, the HVBS-712V produces unbeatable torque while consuming less energy and is capable of producing speeds from 88 – 270 SFPM. The multi-position blade guide increases throat capacity from 4’’ to 8’’ inches in vertical position.
Jet 415560 Includes
- (1) Vari-Speed Horizontal/Vertical Bandsaw Deluxe, 7"x12" 1HP
Jet 415560 Features
- Sealed Hardened and Ground Gear Drive
- Heavy Casted Iron Bow and Bed
- large torque of New DC motor
- Improved Wider Stand with Built-in Storage Cabinet and Chip Tray
- Blade Wheels are made of flanged cast iron
- CSA/US Certified
- UL Listed Switches
- Blade Tensioning Guides
- Auto Shut-Off after Cut
- Blade is fully guarded
- Cast Mounted Hydraulic Downfeed for Ease of Cut

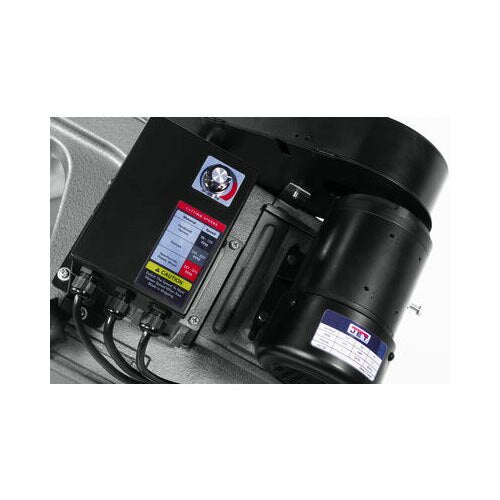

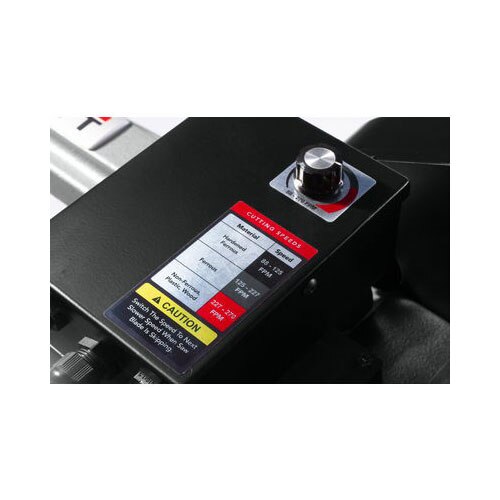

- Speed changes are now done with the turn of a knob, no need to change belts
- Four 8" Rubber Wheels for Ease of Movement

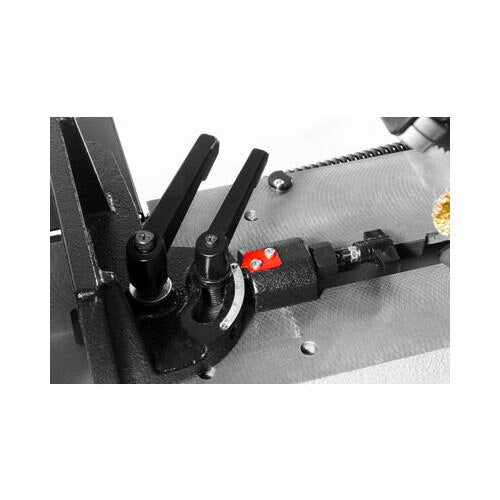

- Tool-less Quick Lock Vise with Preset Mitering Positions at 15, 30 & 45 degrees

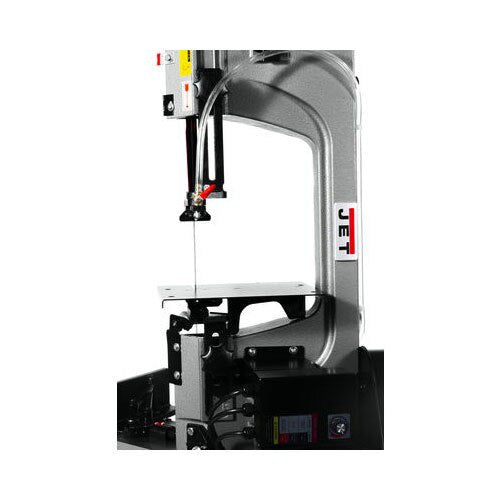

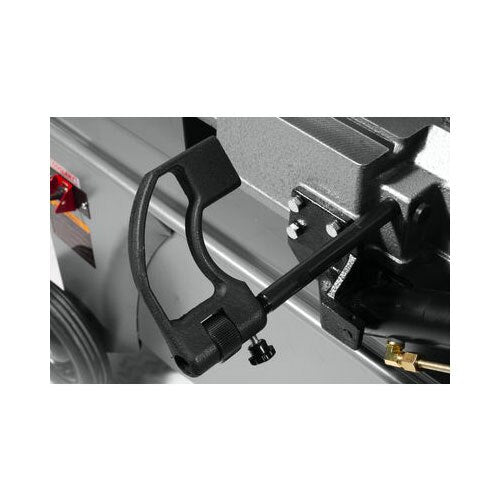

- Multi-Position Blade Guide enhance use in Vertical position and increases the throat capacity from 4" to 8"
- Adjustable Hydraulic Feed System

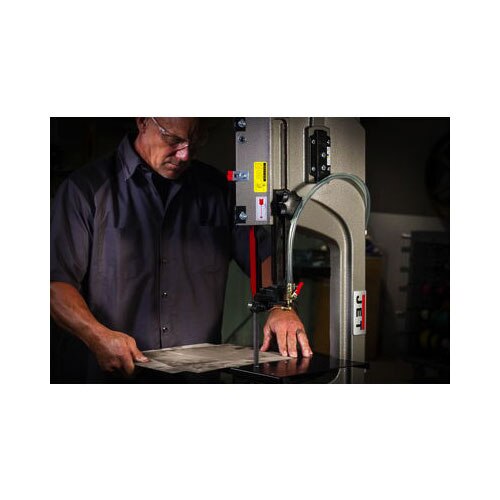

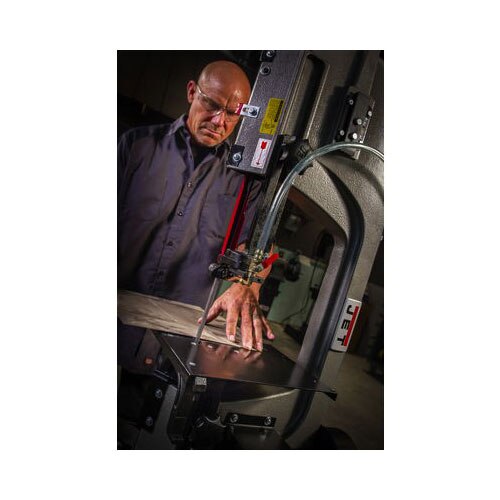

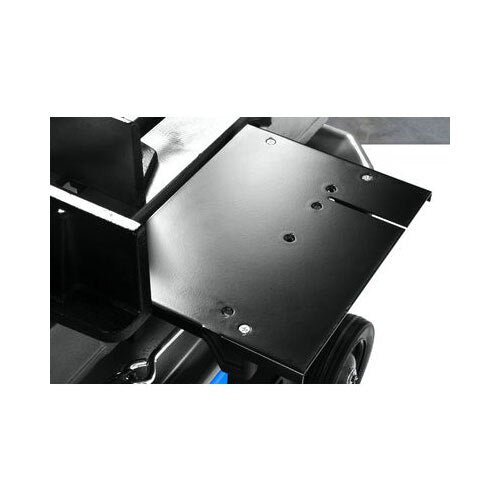

- Vertical 5" x 6" Worktable
- Large 10" x 12" Infeed Table Assembly extends the support area and can be used in either horizontal or vertical positions
Jet 415560 Specifications
| Round at 90 Degrees | 7" |
| Round at 45 Degrees (In.) | 5 |
| Rectangle at 90 Degrees (In.) | 1 (H) x 12 (W); 2(H) x 11-1/4 (W); 4(H) x 11 (W); 7(H) x 10-1/4 (W) |
| Rectangle at 45 Degrees (In.) | 6 (H) x 4 (W) |
| Square at 90 Degrees (In.) | 7 x 7 |
| Square at 45 Degrees (In.) | 5 x 5 |
| Throat Depth (In.) | 7 |
| Vise Swivels (Deg.) | 45 |
| Blade Speeds (SFPM) | 88 - 270 |
| Blade Wheel Diameter (In.) | 11-3/4 |
| Blade Size (In.) | 3/4 x .032 x 93 |
| Bed Height (In.) | 22-1/4 |
| Motor (HP) | 1HP,115V,1Ph , 7.5 Amp, 3500RPM DC moto |
| Overall Dimensions (L x W x H) (In.) | 48 x 17 x 44 |
| Vertical Work Table | 10 x 12 |
| Net Weight (lbs) | 368 |
