At a Glance
RPM
20000 RPM
Motor Horsepower
1 HP
Air Inlet Size
1/4 in NPT
Collet Size
1/4 in
Air Consumption
5.3 CFM
Sold As
Individual
Color
Black
Description
Description
Jet 505481 Includes

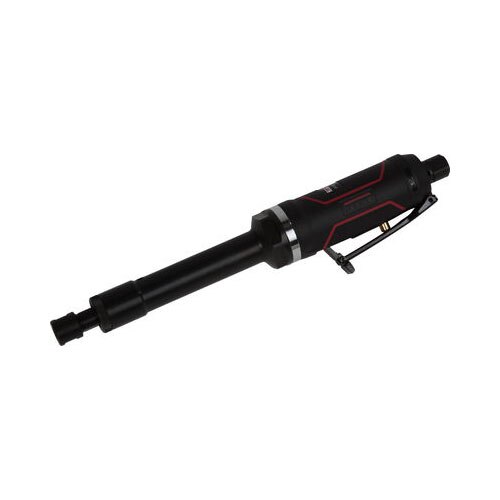

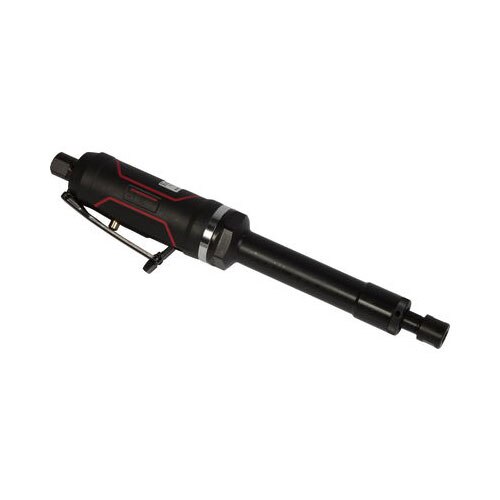

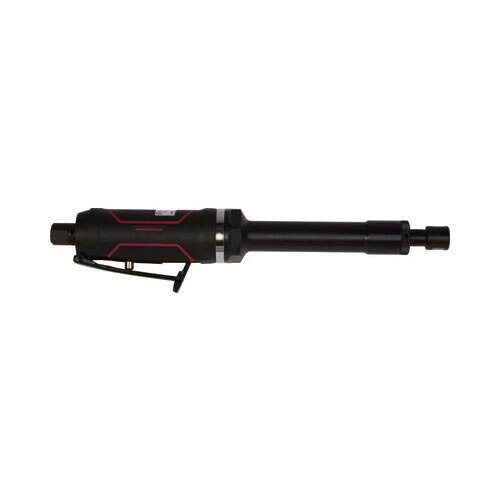

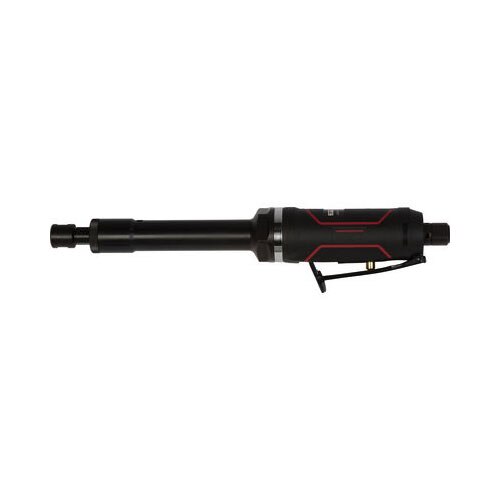

- (1) JAT-481, 1/4", 1 HP Extended Die Grinder
Jet 505481 Features
- Upgraded Full, 1 HP motors provide the heavy-duty power needed for harsh industrial environments
- Impact resistant composite housings reduce tool weight and user fatigue.
- Extended design for additional reach
- Variable-speed throttle ramps up to maximum RPM, while the safety lock prevents accidental engagement
- 360° Rotating air inlet keeps the air hose tangle free for added safety
- Comes standard with 1/4" Erickson collet
- Rear facing exhaust
- Performace @ 90 PSI. Air Inlet NPT 1/4". Min Hose Size 3/8"
Jet 505481 Specifications
| Classification | R12 |
| Collet Size (In.) | 1/4 |
| Body Type | Full, Extended |
| Horse Power (HP) | 1 |
| Free Speed (RPM) | 20,000 |
| Air Inlet (NPT/In.) | 1/4 |
| Air Hose (ID/In.) | 3/8 |
| Air Pressure (PSI) | 90 |
| Air Consumption (CFM) | 5.3 |
| Sound Power (db) (A) | 98 |
| Sound Pressure (db) (A) | 87 |
| Vibration Value (m/s²) | 0.46 |
| Overall Length (In.) | 13 |
| Weight (Lbs.) | 3.2Rated to last for those demanding 12 hour days, the R12 Series air tools are built to tackle the most extreme jobs. Engineered for Overtime, these tools feature the superior strength and durability needed across a wide range of applications. |
Toolup Part # :
388900
