At a Glance
Overall Length
14-1/2 in
Air Inlet Size
3/8 in NPT
Air Consumption
17 CFM
Sold As
Individual
Color
Gray
Description
Description

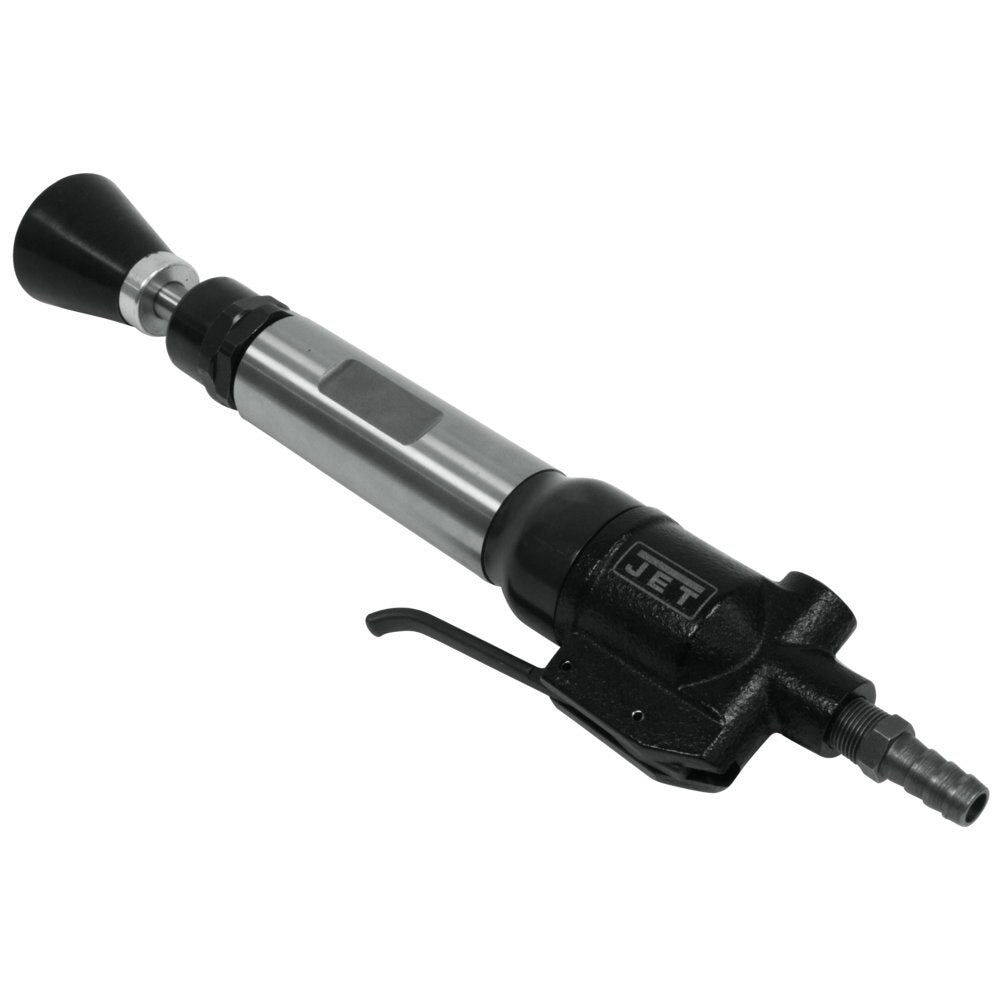

Jet 550601 Description
JET® Sand Rammers are available in bench and floor models. The bench models deliver fast, powerful blows for ramming small, medium and large forms. The floor models deliver maximum power with slow, powerful blows that efficiently and quickly compact all types of backfill. Each model is ergonomically designed providing greater ease of handling with reduced operator fatigue
Jet 550601 Features
- Front end seal protects the piston from excessive dirt and debris extending tool life
- Fast powerful blows for compacting small, medium and large sand molds
- Heavy-Duty, industry proven valve design
- All Steel cylinder housing for increased durability
- Performance @ 90 PSI. Air Inlet NPT 1/4". Min Hose Size 3/8"
- Butt Type: Rubber
Jet 550601 Specifications
| Taper (Deg.) | 1.38 |
| Noise Level (dB) (A) | 102.9 |
| Blows Per Minute | 1000 |
| Piston Stroke (In.) | 2-9/16 |
| Bore Size (In.) | 6/7 |
| Butt Diameter (In.) | 2-3/64 |
| Air Inlet (NPT/In.) | 3/8 |
| Air Hose (ID/In.) | 3/8 |
| Air Consumption (CFM) | 17 |
| Vibration Value (m/s²) | 33.84 |
| Overall Length (In.) | 14-1/2 |
| Air Pressure (PSI) | 90 |
Toolup Part # :
388881
