At a Glance
Overall Length
35-1/4 in
Air Inlet Size
3/8 in NPT
Air Consumption
17 CFM
Sold As
Individual
Description
Description

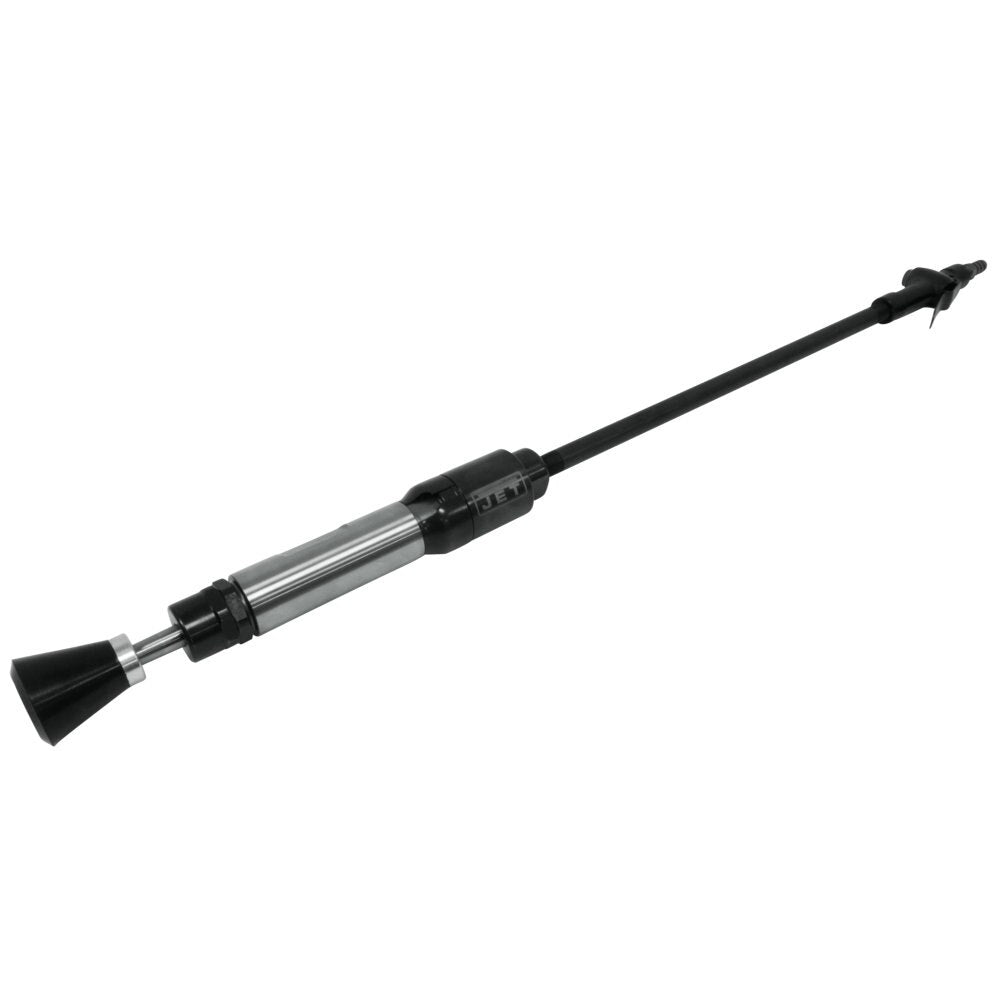

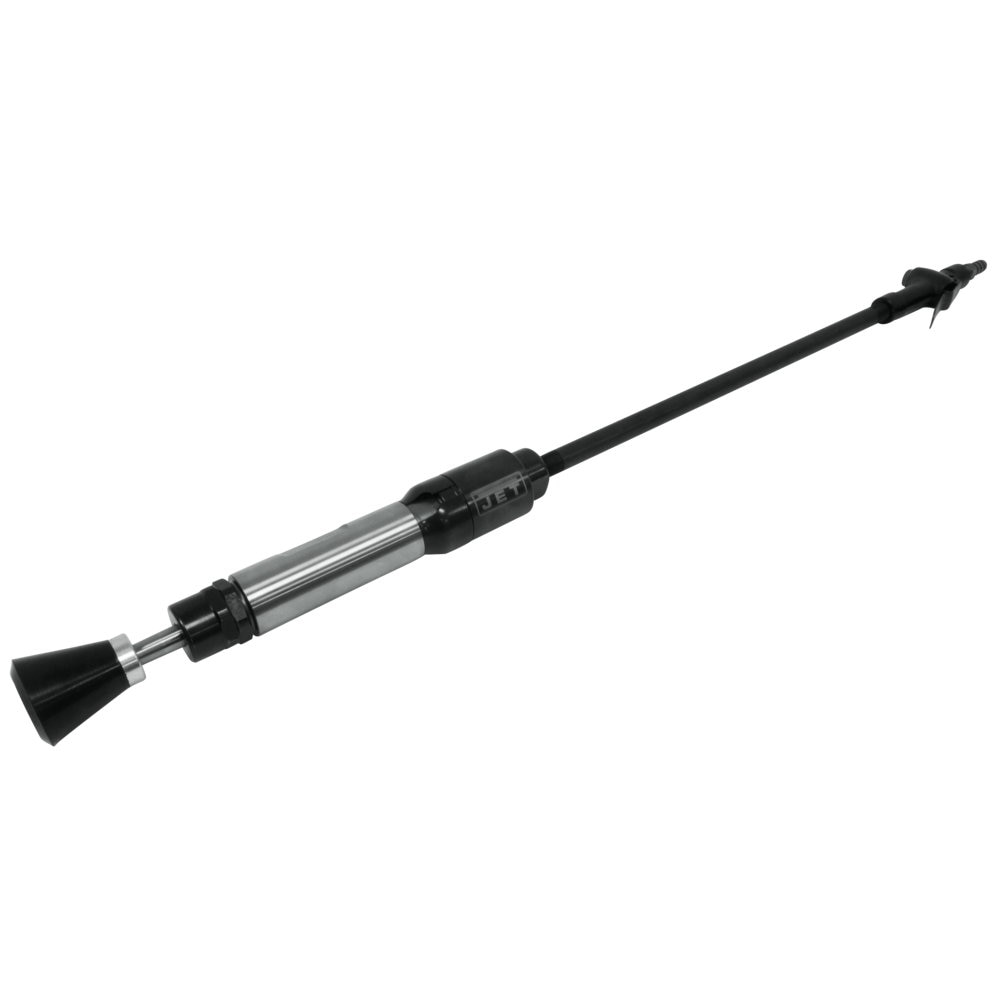

Jet 550603 Description
JET® Sand Rammers are available in bench and floor models. The bench models deliver fast, powerful blows for ramming small, medium and large forms. The floor models deliver maximum power with slow, powerful blows that efficiently and quickly compact all types of backfill. Each model is ergonomically designed providing greater ease of handling with reduced operator fatigue
Jet 550603 Features
- Front end seal protect the piston from excessive dirt and debris extending tool life
- Maximum power with slow, powerful blows for compacting large sand molds
- Highly efficient way to quickly compact all types of backfill and sand
- All Steel cylinder housing for increased durability
- Heavy-Duty, industry proven valve design
- Performance @ 90 PSI. Air Inlet NPT 3/8". Min Hose Size 3/8"
- Butt Type: Rubber
Jet 550603 Specifications
| Taper (Deg.) | 1.38 |
| Noise Level (dB) (A) | 111.8 |
| Blows Per Minute | 1000 |
| Piston Stroke (In.) | 2-9/16 |
| Bore Size (In.) | 6/7 |
| Butt Diameter (In.) | 2-3/64 |
| Air Inlet (NPT/In.) | 3/8 |
| Air Hose (ID/In.) | 3/8 |
| Air Consumption (CFM) | 17 |
| Vibration Value (m/s²) | 32 |
| Overall Length (In.) | 35-1/4 |
| Air Pressure (PSI) | 90 |
Toolup Part # :
388883
