Jet | SKU:
JT9-550620

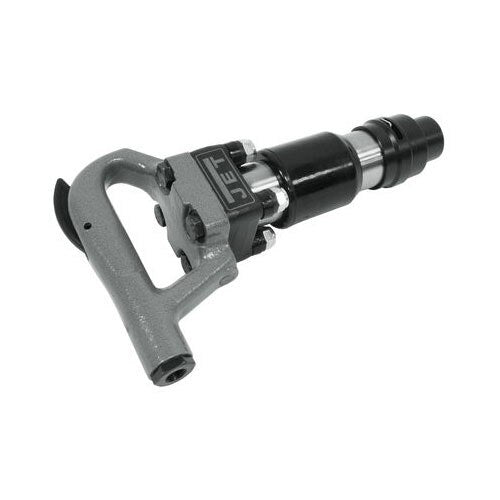

Jet JT9-550620 JCT-3620, 3" Stroke, Round Shank, 4-Bolt Chipping Hammer
Free Shipping
$632.99
$878.00
Unit price
/
Unavailable
Description
Description
Jet 550620 Description
JET® Chipping Hammer are available in two heavy-duty designs with multiple capabilities. The Four Bolt D handle model is designed for extra strength and provides better grip. The Saw Tooth handle model is engineered to dissipate the impact energy more efficiently. Each type has the option of round or hex shaped bushing shanks. Each model can accommodate standard oval collared chisels and retainers, making these heavy-duty Chipping Hammer a staple on any construction site
Jet 550620 Includes
- (1) JCT-3620, 3" Stroke, Round Shank, 4-Bolt Chipping Hammer
Jet 550620 Features
- Heat treated cylinder and piston for added durability
- Heavy-Duty, industry proven valve design

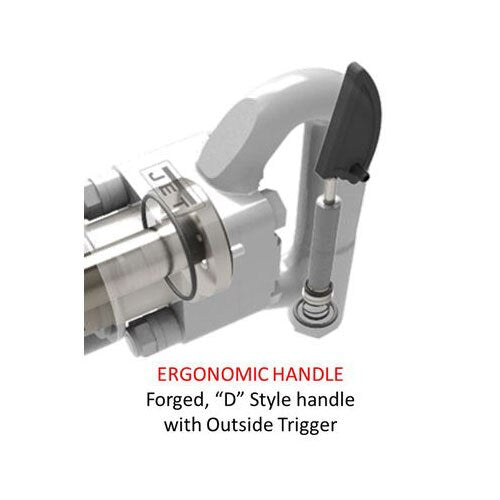

- Ergonomic "D" style forged handle with outside trigger
- Easy servicability with the 4-Bolt backhead
- Comes with standard type retainer
- Performace @ 90 PSI. Air Inlet NPT 3/8". Min Hose Size 1/2"
Jet 550620 Specifications
| Shank Bushing Style | Round |
| Shank Bushing Size (In.) | 0.680 |
| Piston Stroke (In.) | 3-1/32 |
| Bore Size (In.) | 1-3/16 |
| Blows Per Minute (BPM) | 2,200 |
| Energy Per Blow @ 90 PSI (Ft.) (Lb.) | 17 |
| Rivet Capacity (In.) | 1-1/4 |
| Air Inlet (NPT/In.) | 3/8 |
| Min. Air Hose (ID/In.) | 1/2 |
| Air Pressure (PSI) | 90 |
| Air Consumption (CFM) | 34 |
| Noise Level (dB) (A) | 95.0 |
| Vibration Value (m/s²) | 15.0 |
| Overall Length (In.) | 14 |
| Weight (Lbs.) | 18 |
