Jet | SKU:
JT9-577000
Jet JT9-577000 J-4103 2 x 72 Square Wheel Belt Grinder 115V 1PH
Free Shipping
$2,549.00
$3,070.00
Unit price
/
Unavailable
Description
Description
Jet 577000 Description

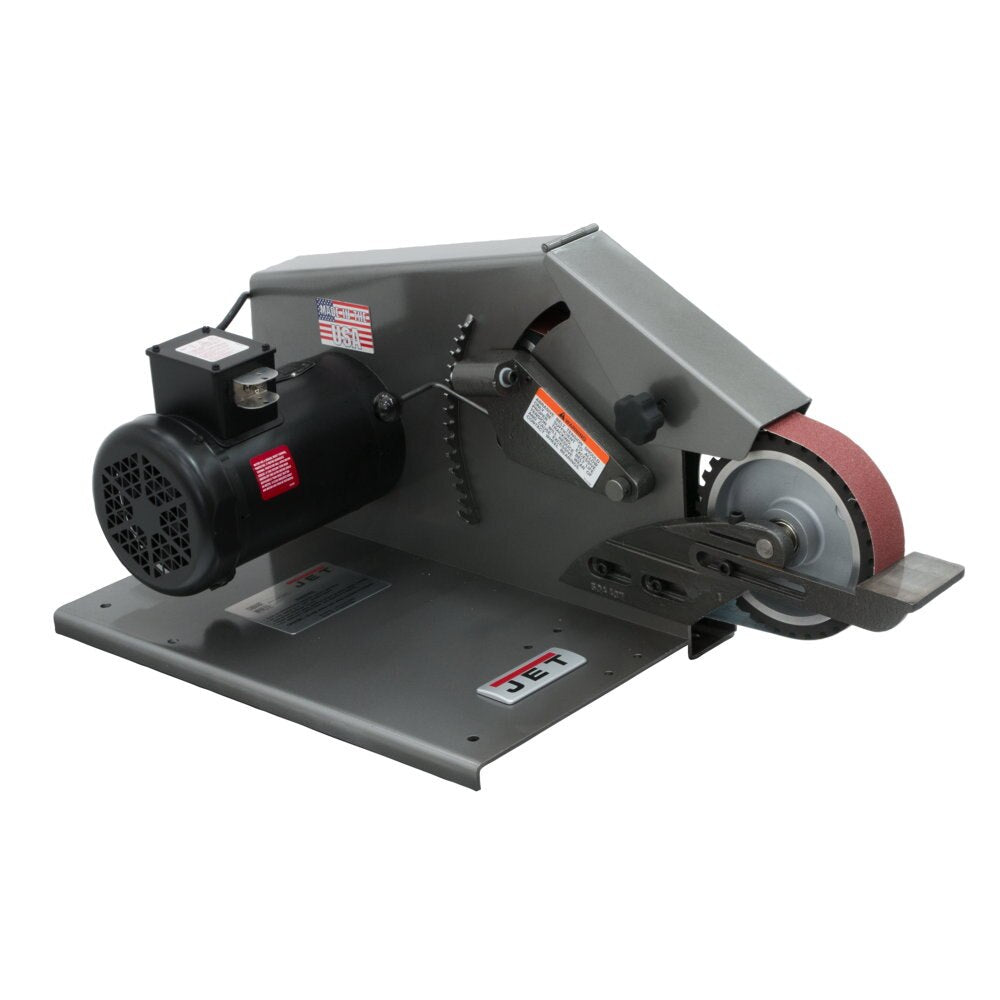

The JET Square Wheel Grinder is a belt grinder that uses a flat platen and idler wheels at each end to achieve a long, flat grinding surface. This innovative design permits grinding on the front wheel, which is square to the work and not crowned. The JET Square Wheel Belt Grinder, Models J-4103 and J-4126AC, grind, deburr and chamfer with equal proficiency both internal/external on parts large and small parts. Accessories allow the user to convert the Square Wheel Belt Grinder for polishing or buffing finished parts
Jet 577000 Features
- MADE IN THE U.S.A.
- Puts a satin finish on steel, iron or aluminum
- Grind difficult to reach areas with the 3" X 2" or 1-1/2" X 2" diameter contact wheels
- Yoke surface conforms to shape of the surface to produce an even, smooth finish
- For grinding, and refinishing cylindrical shapes.
- Performs intricate contouring or internal finishing on uniquely shaped parts
- Serrated contact wheel is used for removing heavy stock, cleaning up a weld or snagging a casting
Jet 577000 Specifications
| Style (Type) | Belt |
| Weight (Lbs.) | 163 |
| Belt Speed (SFPM) | 4,600 |
| Contact Wheel Size (W x L) (In.) | 8 x 2, 3 x 2, 1-1/2 x 2 |
| Belt Size (W x L) (In.) | 2 x 72 |
| Motor (HP) | 1 HP, 115/230V, 1Ph |
| Overall Dimensions (L x W x H) (In.) | 17 x 31 x 17 |
