Jet 577004 Description

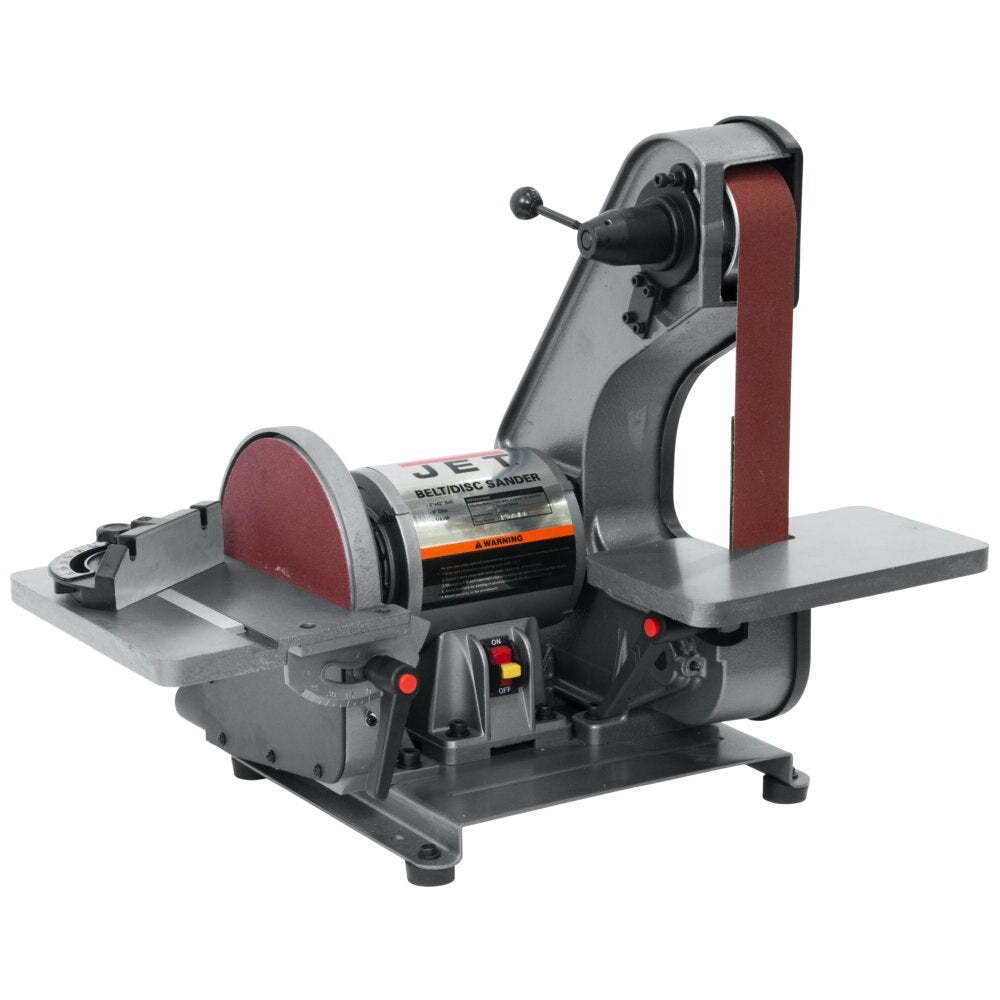

Another JET combination Bench Belt and Disc Sander designed to deliver the superior finish. The design of this machine permits sanding, grinding and finishing of outside curves or odd-shaped pieces. Heavy-duty base, cast construction and cast iron tilting table means you are getting the very best JET has to offer.
Jet 577004 Features
- Abrasive belt unit does the work of a jig-saw, copying saw or hand file while removing material and finishing at the same time, allows the operator to get into small oppenings plus handle odd shapes and angles
- Deluxe miter gauge that turns and locks for common angles, 45° both left and right
- Allows for sanding, grinding or finishing of outside, curves or odd shaped work pieces on the belt
- Hinged idler wheel cover
- Cast Iron construction
- Heavy-duty steel base and rubber feet
- Adjustable dust deflector and dust chute
Jet 577004 Specifications
| Style (Type) | Belt & Disc |
| Weight (Lbs.) | 60 |
| Belt Speed (SFPM) | 3,100 |
| Disc Diameter (In.) | 8 |
| Table Slots (In.) | 5/8 |
| Disc Speed (RPM) | 3,450 |
| Belt Table Size (In.) | 10 x 6 |
| Disc Table Size (L x W) (In.) | 10-3/4 x 7-1/2 |
| Belt Size (W x L) (In.) | 2 x 42 |
| Motor (HP) | 3/4 HP, 115V, 1Ph |
| Overall Dimensions (L x W x H) (In.) | 20-1/2 x 22-3/4 x 20 |
| Disc Table Tilt (Deg.) | 45° out |
| Belt Table Tilt (Deg.) | 45° out |
Toolup Part # :
61975
