Jet  |  SKU: JT9-690019  |  Barcode: 662755515903

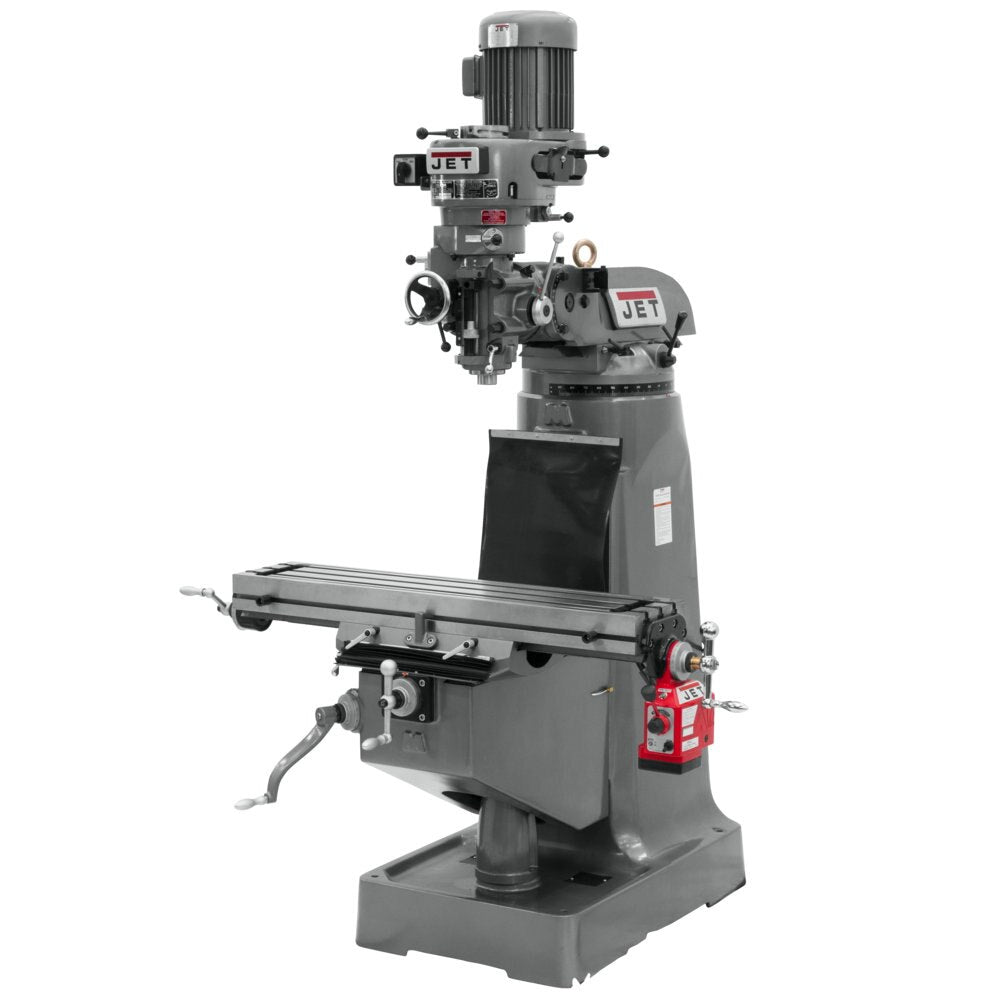

Jet JT9-690019 JTM-1 Mill With X-Axis Powerfeed

Free Shipping
$12,249.00 $14,985.71

Description

Jet 690019 Description

Three-stage power down feed with auto stop, high precision Class 7 spindle bearings and the rugged stability of Meehanite® castings ensures you get everything you need from the JTM-1 and 2 models. The internally cooled spindle head prevents seizing, and JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty

Jet 690019 Features

  • Meehanite casting
  • Precision bored and honed milling head
  • Large diameter quill is chromed
  • High precision Class 7 spindle bearings
  • Spindle head is internally cooled
  • Satin chrome finished dials
  • Heavy duty splined motor drive
  • One piece quill pinion and shaft
  • Three stage power downfeed with automatic stop
  • Heavy duty spindle brake

Jet 690019 Specifications

Spindle Travel (In.) 5
Table Cross Travel (In.) 12-1/2
T-Slot Centers (In.) 2-1/2
Distance Spindle to Column (Min.) (In.) 4-1/2
Quill Down Feed Rates (IPR) .0015 - .003 - .006
Work Table Weight Capacity (Lbs.) 550
Quill Diameter (In.) 3-3/8
Collet Capacity 1/8 - 7/8
Overall Dimensions (L x W x H) (In.) 57 x 64 x 82
Number of Spindle Speeds 16
Range of Spindle Speeds (RPM) 80 - 5,440
Head Movement (Deg.) 90° R & L, 45° F & B
Weight (Lbs.) 2,200
Motor (HP) 2 HP, 230V, 3Ph
Style (Type) Step Pulley R8
Table Size (L x W) (In.) 9 x 42
Distance Spindle to Column (Max.) (In.) 19
T-Slots Number and Size (In.) 3 and 5/8
Powerfeed X-Axis
