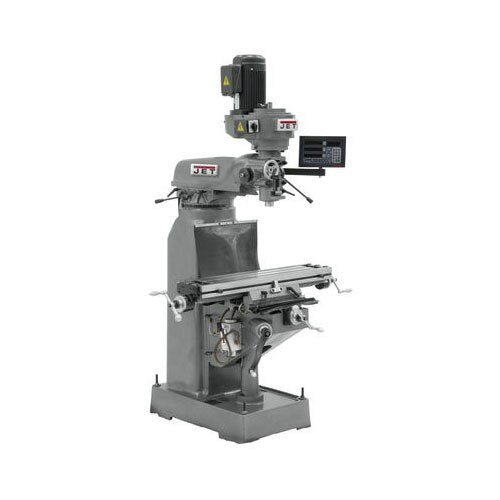

Jet JT9-690146 JVM-836-3 Mill with ACU-RITE 203 DRO with X-Axis Powerfeed
Free Shipping
$13,819.00
$16,704.29
Unit price
/
Unavailable
Description
Description
Jet JT9-690146 Description
The precision bored and honed milling head, coupled with the hardened and ground 8" x 36" table ensures retention of tolerances, while locks on all moving surfaces increase user safety. The JET JVM-836 has features you've come to expect that are backed by the industry-leading JET Two Year Warranty
Jet JT9-690146 Includes
- (1) JVM-836-3 Mill with ACU-RITE 203 DRO with X-Axis Powerfeed
Jet JT9-690146 Features
- Precision bored and honed milling head
- Large diameter quill is chromed
- High precision spindle bearings
- Over 10" of front to back ram travel
- Locks on all movable surfaces
- Hardened and ground precision table
- Head tilts left or right
- Graduated scale on column
- Precision ground dovetail ways
- One shot lubrication system
Jet JT9-690146 Specifications
| Style (Type) | Step Pulley R8 |
| Distance Spindle to Column (Max.) (In.) | 15-3/4 |
| Digital Readout | ACU-RITE 203 |
| Distance Spindle to Column (Min.) (In.) | 5-1/4 |
| Number of Axis | 2 |
| Collet Capacity | 1/8 - 7/8 |
| Powerfeed | X-Axis |
| Table Longitudinal Travel (In.) | 22-1/4 |
| Spindle Taper (In. x TPI) | R-8 |
| Table Longitudinal Travel with Powerfeed (In.) | 18 |
| Table Size (L x W) (In.) | 7-7/8 x 35-3/4 |
| Table Cross Travel (In.) | 9-1/2 |
| Quill Diameter (In.) | 3-3/8 |
| T-Slots Number and Size (In.) | 3 and 5/8 |
| Number of Spindle Speeds | 10 |
| T-Slot Centers (In.) | 2-1/2 |
| Range of Spindle Speeds (RPM) | 120 - 1,550 |
| Work Table Weight Capacity (Lbs.) | 500 |
| Quill Down Feed Rates (IPR) | .0015 - .003 - .006 |
