Jet | SKU:
JT9-690231

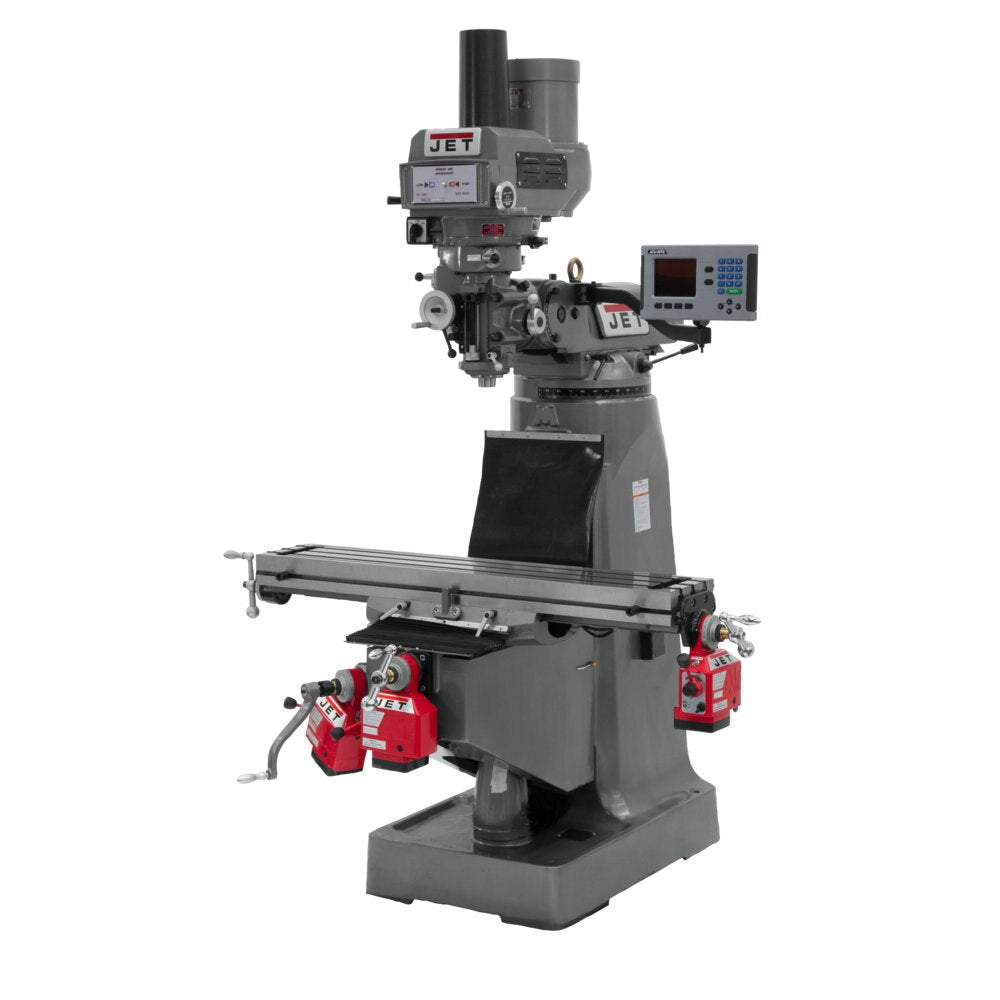

Jet JT9-690231 JTM-4VS Mill With Acu-Rite 200S DRO With X, Y & Z Powerfeeds With Air Powered Draw Bar
Free Shipping
$21,418.99
$26,032.86
Unit price
/
Unavailable
Description
Description
SPECIFICATIONS:
• Spindle Travel (In.): 5
• Table Cross Travel (In.): 12
• T-Slot Centers (In.): 2-1/2
• Min. Distance Spindle to Column (Min.) (In.): 4-1/2
• Quill Down Feed Rates (IPR): .0015 - .003 - .006
• Quill Diameter (In.): 3-3/8
• Collet Capacity: 1/8 - 7/8
• Overall Dimensions (L x W x H) (In.): 66 x 63 x 85
• Number of Spindle Speeds: Variable
• Range of Spindle Speeds (RPM): 60 - 4,200
• Head Movement: (Deg.): 90° R & L, 45° F & B
• Motor (HP): 3 HP, 230/460V, 3Ph
• Style (Type): Variable Speed R8
• Table Size (L x W) (In.): 9 x 49
• Max. Distance Spindle to Column: 19
• T-Slots Number and Size: (In.): 3 and 5/8
• Digital Readout: ACU-RITE 200S
• Powerfeed: X, Y and Z-Axis
• Power Draw Bar: Pneumatic
• Travel of Knee: (In.): 14-1/2
• Travel of Ram: (In.): 13-3/8
• Max Distance Spindle to Table: (In.): 17-1/2
• Table Longitudinal Travel: (In.): 34
• Table Longitudinal Travel With Powerfeed: (In.): 28-3/4
• Spindle Taper (In. x TPI): R-8
• Spindle Travel (In.): 5
• Table Cross Travel (In.): 12
• T-Slot Centers (In.): 2-1/2
• Min. Distance Spindle to Column (Min.) (In.): 4-1/2
• Quill Down Feed Rates (IPR): .0015 - .003 - .006
• Quill Diameter (In.): 3-3/8
• Collet Capacity: 1/8 - 7/8
• Overall Dimensions (L x W x H) (In.): 66 x 63 x 85
• Number of Spindle Speeds: Variable
• Range of Spindle Speeds (RPM): 60 - 4,200
• Head Movement: (Deg.): 90° R & L, 45° F & B
• Motor (HP): 3 HP, 230/460V, 3Ph
• Style (Type): Variable Speed R8
• Table Size (L x W) (In.): 9 x 49
• Max. Distance Spindle to Column: 19
• T-Slots Number and Size: (In.): 3 and 5/8
• Digital Readout: ACU-RITE 200S
• Powerfeed: X, Y and Z-Axis
• Power Draw Bar: Pneumatic
• Travel of Knee: (In.): 14-1/2
• Travel of Ram: (In.): 13-3/8
• Max Distance Spindle to Table: (In.): 17-1/2
• Table Longitudinal Travel: (In.): 34
• Table Longitudinal Travel With Powerfeed: (In.): 28-3/4
• Spindle Taper (In. x TPI): R-8
