Jet  |  SKU: JT9-690539  |  Barcode: 731325451917

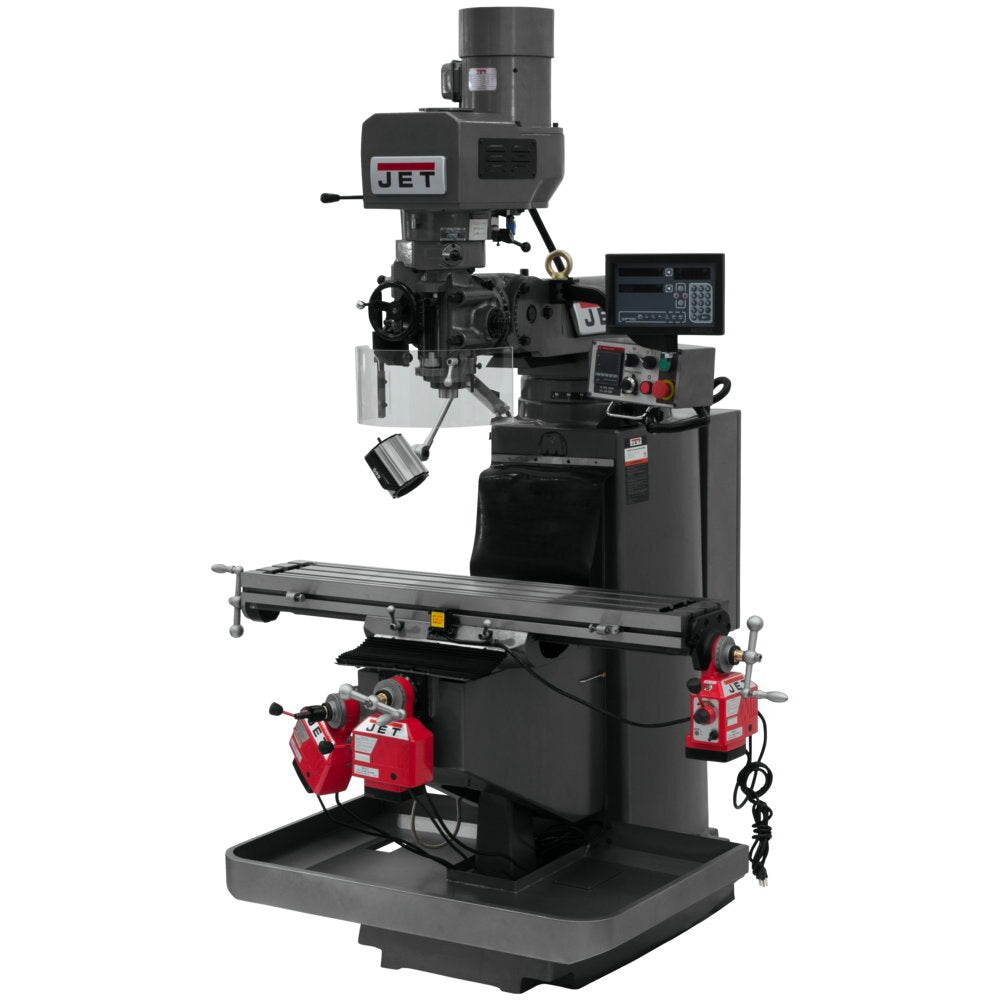

Jet JT9-690539 JTM-949EVS with Newall DP700 DRO X,Y & Z Powerfeeds

Free Shipping
$23,699.00 $29,401.43

Description

Jet 690539 Features

  • New! JET designed Certified MeehaniteĀ® casting with enhanced ribbing ensures rigidity and tolerance retention
  • Swing away control box houses an e-stop and puts all controls at the operators fingertips
  • The innovative design of the machine base provides an easier solution to level the machine without raising it up off the floor
  • Automatic oiler releases 3 to 6 cc/cy of lubrication every 30 minutes
  • For added safety, the heavy-duty spindle break stops the spindle and interrupts the power, preventing accidental start-ups
  • The electrical box has been relocated to the back of the mill and houses two 115V outlets for powered accessories
  • CSA/CUS Certified
  • Class 7 spindle bearings support the spindle for maximum rigidity in heavy cutting applications
  • Spindle head is internally cooled extending bearing, belt and motor life
  • Table and ways are hardened up to 54 HRC and precision ground for greater accuracy

Jet 690539 Specifications

Spindle Travel (In.) 5
Table Cross Travel (In.) 12-5/8
T-Slot Centers (In.) 2-1/2
Min. Distance Spindle to Column (Min.) (In.) 4-3/4
Quill Down Feed Rates (IPR) .0015 - .003 - .006
Work Table Weight Capacity (Lbs.) 720
Quill Diameter (In.) 3-3/8
Collet Capacity 1/8 - 7/8
Overall Dimensions (L x W x H) (In.) 67 x 64 x 86
Number of Spindle Speeds Variable
Range of Spindle Speeds (RPM) 60 - 4,500
Head Movement (Deg.)
Number of Axis 2
Motor (HP) 3HP, 230V, 3Ph
Style (Type) EVS
Table Size (L x W) (In.) 9 x 49
Max. Distance Spindle to Column 18-1/8
T-Slots Number and Size (In.)
Digital Readout Newall DP700
Powerfeed X, Y and Z-Axis
Travel of Knee (In.)
Travel of Ram (In.)
Max Distance Spindle to Table (In.)
Table Longitudinal Travel (In.)
Table Longitudinal Travel With Powerfeed (In.)
Saddle Width (In.)
Column Width (In.)
Inverter Type Delta, B
number of axis 2
Spindle Taper (In. x TPI) R-8
