Jet  |  SKU: JT9-690542  |  Barcode: 731325451948

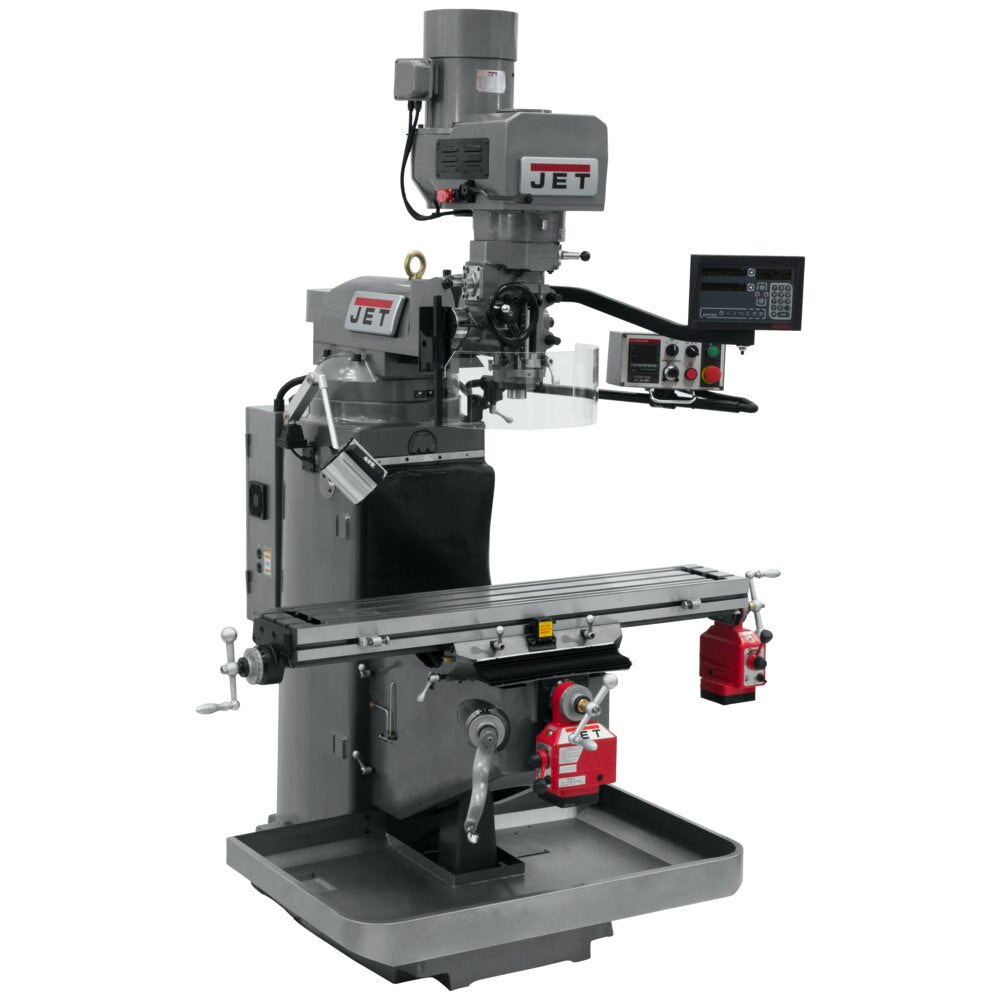

Jet JT9-690542 JTM-949EVS Mill, 3Axis Newall DP700 DRO, X/Y-Axis Powerfeeds

Free Shipping
$22,959.00 $28,471.43

Description

Jet 690542 Features

  • New! JET designed Certified Meehanite® casting with enhanced ribbing ensures rigidity and tolerance retention
  • Swing away control box houses an e-stop and puts all controls at the operators fingertips
  • The innovative design of the machine base provides an easier solution to level the machine without raising it up off the floor
  • Automatic oiler releases 3 to 6 cc/cy of lubrication every 30 minutes
  • For added safety, the heavy-duty spindle break stops the spindle and interrupts the power, preventing accidental start-ups
  • The electrical box has been relocated to the back of the mill and houses two 115V outlets for powered accessories
  • CSA/CUS Certified
  • Class 7 spindle bearings support the spindle for maximum rigidity in heavy cutting applications
  • Spindle head is internally cooled extending bearing, belt and motor life
  • Table and ways are hardened up to 54 HRC and precision ground for greater accuracy

Jet 690542 Specifications

Spindle Travel (In.) 5
Table Cross Travel (In.) 12-5/8
T-Slot Centers (In.) 2-1/2
Distance Spindle to Column (Min.) (In.) 4-3/4
Quill Down Feed Rates (IPR) .0015 - .003 - .006
Work Table Weight Capacity (Lbs.) 720
Quill Diameter (In.) 3-3/8
Collet Capacity 1/8 - 7/8
Overall Dimensions (L x W x H) (In.) 67 x 64 x 86
Number of Spindle Speeds Variable
Range of Spindle Speeds (RPM) 60 - 4,500
Head Movement (Deg.) 90° R & L, 45° F & B
Number of Axis 3 (Knee)
Motor (HP) 3HP, 230V, 3Ph
Style (Type) EVS
Table Size (L x W) (In.) 9 x 49
Distance Spindle to Column (Max.) (In.) 18-1/8
T-Slots Number and Size (In.) 3 and 5/8
Digital Readout Newall DP700
Powerfeed X and Y-Axis
Travel of Knee (In.) 15-3/4
Travel of Ram (In.) 15-1/4
Max Distance Spindle to Table (In.) 20-3/4
Table Longitudinal Travel (In.) 36
Table Longitudinal Travel With Powerfeed (In.) 30-3/4
Saddle Width (In.) 11-1/2
Column Width (In.) 18
Inverter Type Delta, B
number of axis 3 (Knee)
Spindle Taper (In. x TPI) R-8
