Jet  |  SKU: JT9-690576  |  Barcode: 731325452563

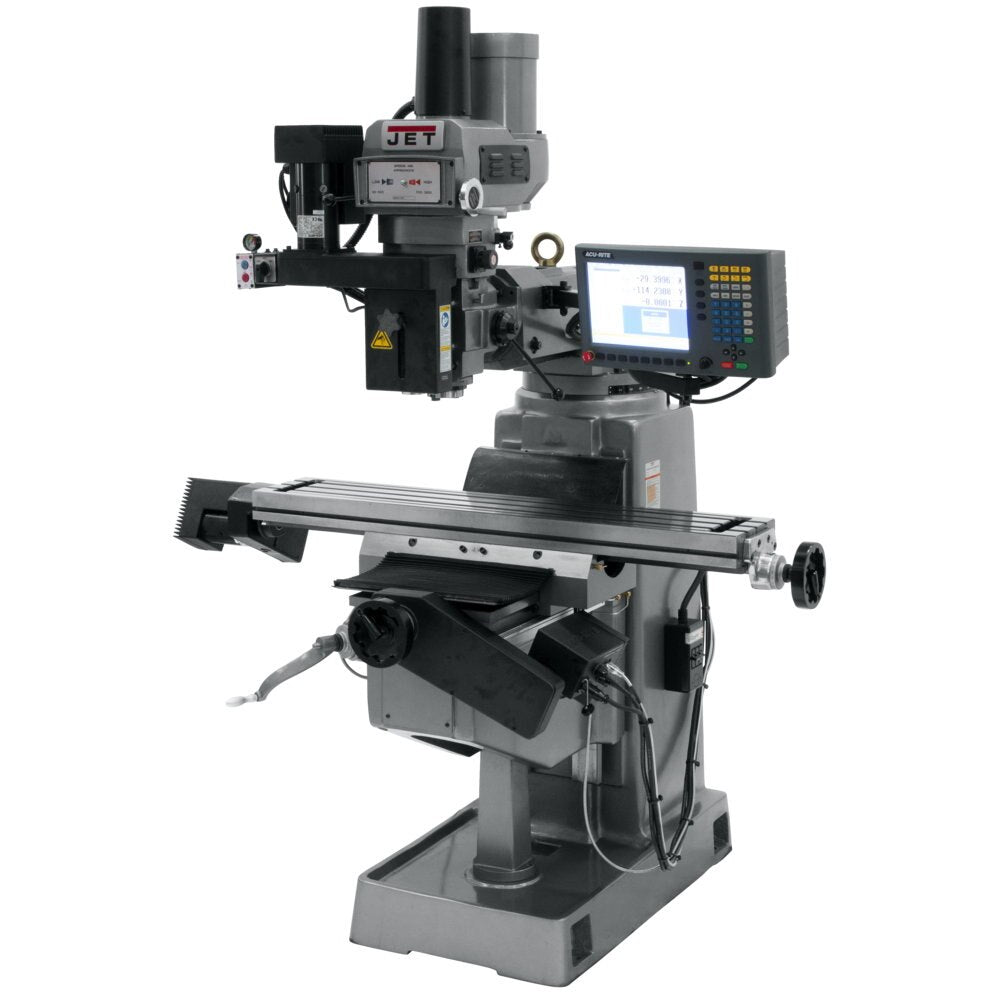

Jet JT9-690576 JTM-949EVS/230 Mill With 3-Axis ACU-RITE G-2 MILLPWR CNC

Free Shipping
$46,031.99 $55,444.20

Description

Jet 690576 Description

JET offers complete, factory-installed CNC packages with your choice of 2 or 3-axis CNC controls. The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite® casted JET Vertical Mills with CNC packages deliver accurate results every time. All the features you've come to expect backed by the industry-leading JET Two Year Warranty

Jet 690576 Features

  • Certified Meehanite® catings
  • Class 7 bearings support the spindle for maximum ridgity in heavy cutting applications
  • Precision bored and honed milling head
  • Spindle head is internally cooled extending bearing, belt and motor life
  • Quick spindle feed nut easily adjusts to different depths
  • One-piece quill pinion and shaft
  • Three-stage power downfeed with automatic stop
  • Heavy-duty spindle brake
  • Precision hardened and ground ways and table

Jet 690576 Specifications

Quill Down Feed Rates (IPR) .0015 - .003 - .006
Travel of Knee (In.) 15-3/4
Head Movement (Deg.) 90° R & L, 45° F & B
Motor (HP) 3HP, 230V, 3Ph
Overall Dimensions (L x W x H) (In.) 67 x 64 x 86
Spindle Travel (In.) 5
Style (Type) CNC
Spindle Taper (In. x TPI) R-8
Work Table Weight Capacity (Lbs.) 720
CNC Package ACU-RITE MILLPWR® G2
Table Longitudinal Travel (In.) 36
Table Size (L x W) (In.) 9 x 49
Weight (Lbs.) 2,420
T-Slots Number and Size (In.) 3 and 5/8
Table Cross Travel (In.) 12-5/8
Number of Spindle Speeds Variable
T-Slot Centers (In.) 2-1/2
Range of Spindle Speeds (RPM) 60 - 4,500
Travel of Ram (In.) 15-1/4
Distance Spindle to Column (Max.) (In.) 18-1/8
Distance Spindle to Column (Min.) (In.) 4-3/4
Quill Diameter (In.) 3-3/8
Number of Axis 3
Collet Capacity 1/8 - 7/8
Max Distance Spindle to Table (In.) 20-3/4
Column Width (In.) 18
Saddle Width (In.) 11-1/2
Inverter Type Delta, B
Table Longitudinal Travel With Powerfeed (In.) 30-3/4
