Jet  |  SKU: JT9-690620  |  Barcode: 731325452204

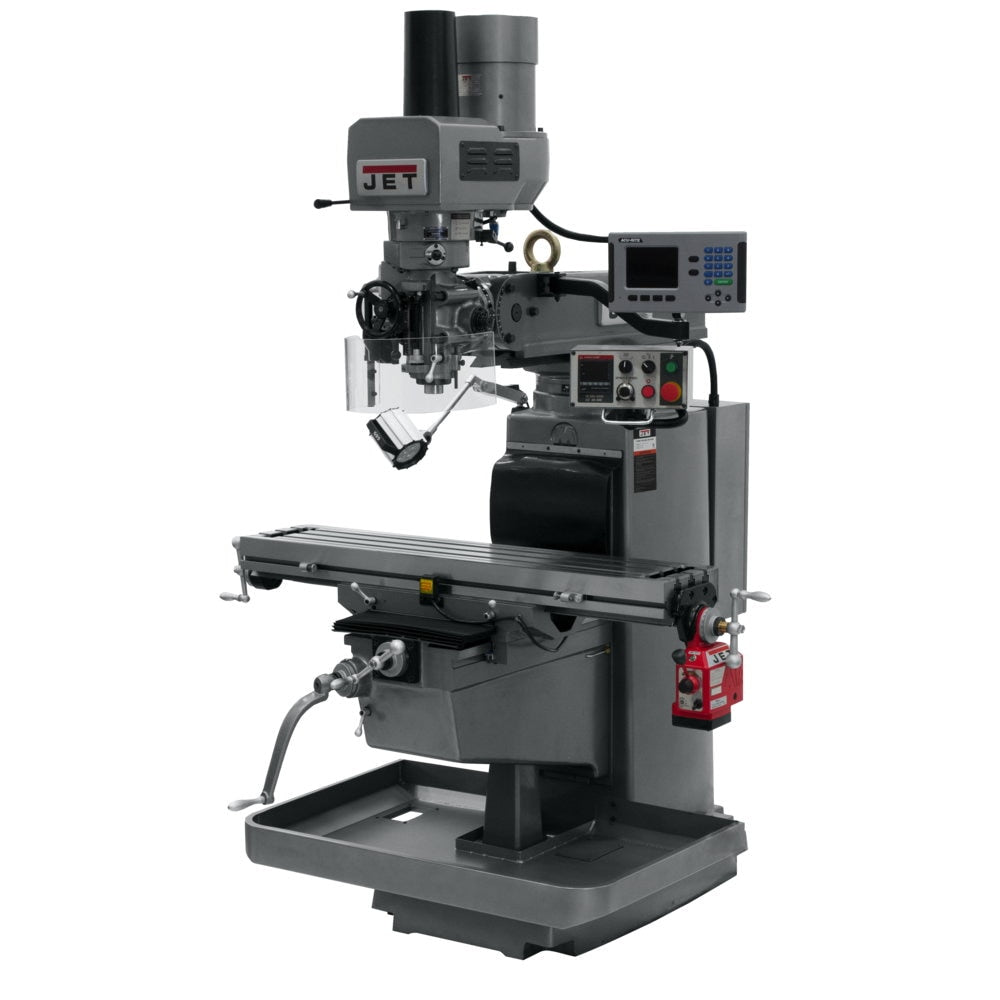

Jet JT9-690620 JTM-1050EVS2/230 Mill With Acu-Rite 200S DRO With X Powerfeed, Air Powered Drawbar

Free Shipping
$23,899.00 $29,694.29

Description

Jet 690620 Description

Constructed using the Meehanite® casting process, the JTM-1050EVS2/230, 10" x 50" Electronic Variable Speed Milling Machine provides consistent and reliable operation. The newly designed column and base incorporates a rigid, robust design that is easily leveled without lifting the machine. JET Mills have features you've come to expect and are backed by the industry-leading JET Two Year Warranty

Jet 690620 Features

  • JET designed Certified Meehanite® casting with enhanced ribbing ensures rigidity and tolerance retention
  • Swing away control box houses an e-stop and puts all controls at the operators fingertips
  • The innovative design of the machine base provides an easier solution to level the machine without raising it up off the floor
  • Automatic oiler releases 3 to 6 cc/cy of lubrication at adjustable time intervals
  • For added safety, the heavy-duty spindle break stops the spindle and interrupts the power, preventing accidental start-ups
  • The electrical box has been relocated to the back of the mill and houses two 115V outlets for powered accessories
  • CSA/CUS Certified
  • Class 7 spindle bearings support the spindle for maximum rigidity in heavy cutting applications
  • Spindle head is internally cooled extending bearing, belt and motor life
  • Table and ways are hardened up to 54 HRC and precision ground for greater accuracy

Jet 690620 Specifications

Spindle Travel (In.) 5
Table Cross Travel (In.) 14-3/4
T-Slot Centers (In.) 2-1/2
Min. Distance Spindle to Column (Min.) (In.) 4-3/4
Quill Down Feed Rates (IPR) .0015 - .003 - .006
Work Table Weight Capacity (Lbs.) 840
Quill Diameter (In.) 3-3/8
Collet Capacity 1/8 - 7/8
Overall Dimensions (L x W x H) (In.) 66 x 63 x 87
Number of Spindle Speeds Variable
Range of Spindle Speeds (RPM) 60 - 4,500
Head Movement (Deg.)
Motor (HP) 3 HP, 230V, 3Ph
Style (Type) EVS
Table Size (L x W) (In.) 10 x 50
Max. Distance Spindle to Column 26-3/4
T-Slots Number and Size (In.)
Digital Readout ACU-RITE 200S
Powerfeed X-Axis
Power Draw Bar Pneumatic
Travel of Knee (In.)
Travel of Ram (In.)
Max Distance Spindle to Table (In.)
Table Longitudinal Travel (In.)
Table Longitudinal Travel With Powerfeed (In.)
Saddle Width (In.)
Column Width (In.)
Inverter Type Delta, B
Spindle Taper (In. x TPI) R-8
