Jet  |  SKU: JT9-690940  |  Barcode: 731325335118

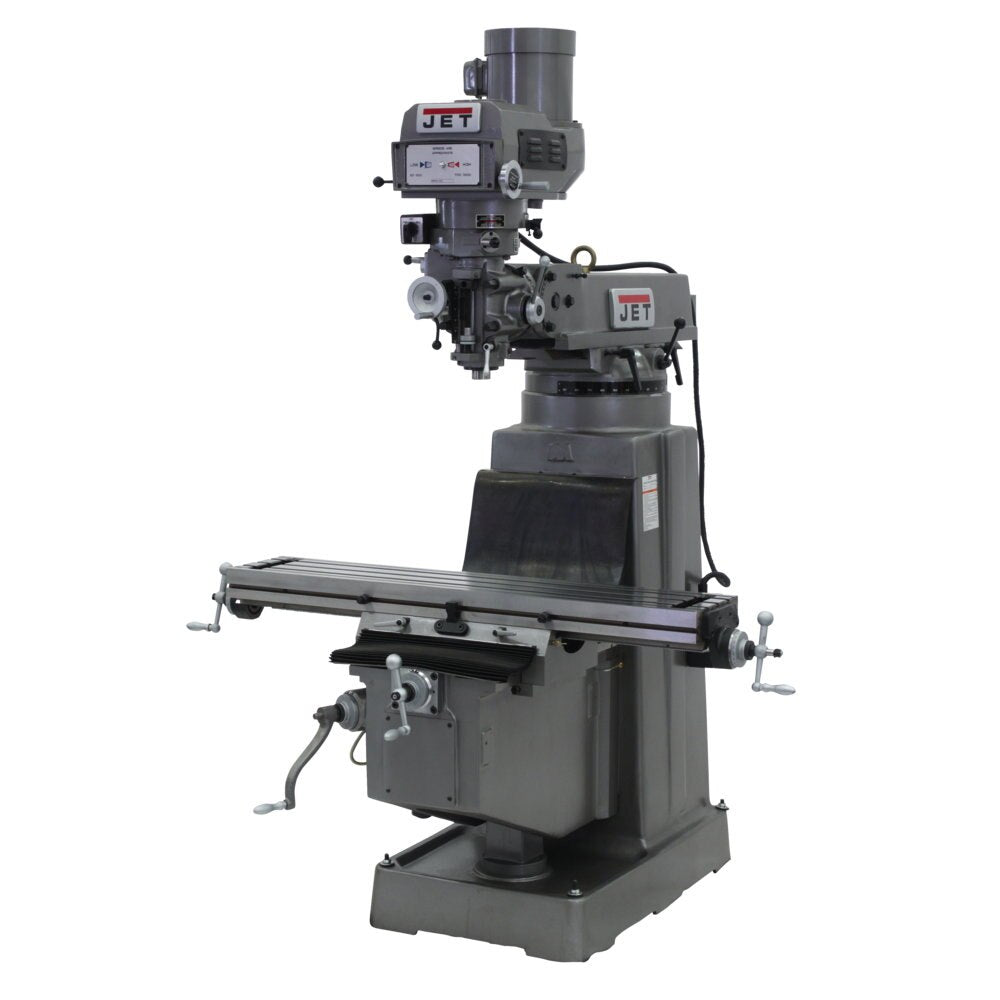

Jet JT9-690940 JTM-1050 Mill With 3-Axis ACU-RITE G-2 MILLPWR CNC

Free Shipping
$53,399.00 $65,604.49

Description

Jet 690940 Description

JET offers complete, factory-installed CNC packages with your choice of 2 or 3-axis CNC controls. The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite® casted JET Vertical Mills with CNC packages deliver accurate results every time. All the features you've come to expect backed by the industry-leading JET Two Year Warranty

Jet 690940 Features

  • CNC Vertical Milling Machine Package JTM-1050
  • Features of the ACU-RITE MILLPWR G2 CNC Package
  • Precision Ground Ball Screws eliminate backlash for precice lateral movements
  • Closed loop feedback using Acu-Rite precision linear encoders with 0.00005" resolution
  • Powerful DC Servo motor assemblies that include mounting castings and hardware
  • Handwheels are included for manual operation
  • Features of the ACU-RITE MILLPWR G2 CONTROLLER
  • USB + Ethernet compatible
  • Simplified navigation that eliminates multiple menu screens
  • 12.1" High resolution display (1024 x 768) with 3D graphics

Jet 690940 Specifications

Quill Down Feed Rates (IPR) .0015 - .003 - .006
Travel of Knee (In.) 14-1/4
Head Movement (Deg.) 90 R & L, 45 F & B
Motor (HP) 3 HP, 230/460V, 3Ph
Overall Dimensions (L x W x H) (In.) 96 x 69 x 87
Spindle Travel (In.) 5
Style (Type) CNC
Spindle Taper (In. x TPI) R-8
Work Table Weight Capacity (Lbs.) 720
CNC Package ACU-RITE MILLPWR® G2
Table Longitudinal Travel (In.) 35
Table Size (L x W) (In.) 10 x 50
Weight (Lbs.) 3,200
T-Slots Number and Size (In.) 3 - 5/8
Table Cross Travel (In.) 15-1/4
Number of Spindle Speeds Variable
T-Slot Centers (In.) 2-1/2
Range of Spindle Speeds (RPM) 70-3,800
Travel of Ram (In.) 20-1/2
