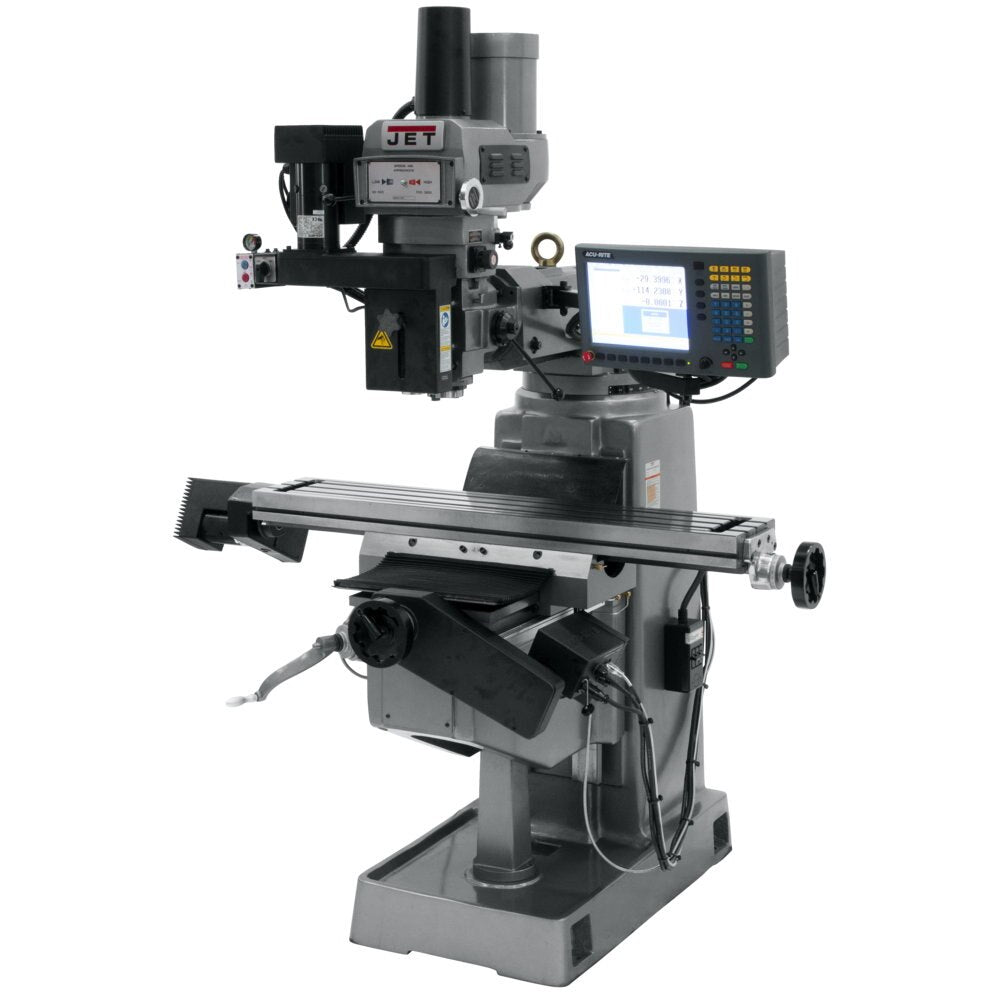

Jet JT9-690950 JTM-4VS-1 Mill With 3-Axis ACU-RITE G-2 MILLPWR CNC
Free Shipping
$43,299.00
$53,195.91
Unit price
/
Unavailable
Description
Description
Jet 690950 Description
JET offers complete, factory-installed CNC packages with your choice of 2 or 3-axis CNC controls. The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite® casted JET Vertical Mills with CNC packages deliver accurate results every time. All the features you've come to expect backed by the industry-leading JET Two Year Warranty
Jet 690950 Features
- CNC Electronic Variable Speed Vertical Milling Machine Package JTM-1050EVS
- Features of the ACU-RITE MILLPWR G2 CNC Package
- Precision Ground Ball Screws eliminate backlash for precice lateral movements
- Closed loop feedback using Acu-Rite precision linear encoders with 0.00005" resolution
- Powerful DC Servo motor assemblies that include mounting castings and hardware
- Handwheels are included for manual operation
- Features of the ACU-RITE MILLPWR G2 CONTROLLER
- USB + Ethernet compatible
- Simplified navigation that eliminates multiple menu screens
- 12.1" High resolution display (1024 x 768) with 3D graphics
Jet 690950 Specifications
| Quill Down Feed Rates (IPR) | .0015 - .003 - .006 |
| Travel of Knee (In.) | 14-1/2 |
| Head Movement (Deg.) | 90 R & L, 45 F & B |
| Motor (HP) | 2 HP, 115/230V, 1Ph |
| Overall Dimensions (L x W x H) (In.) | 66 x 63 x 85 |
| Spindle Travel (In.) | 5 |
| Style (Type) | CNC |
| Spindle Taper (In. x TPI) | R-8 |
| Work Table Weight Capacity (Lbs.) | 660 |
| CNC Package | ACU-RITE MILLPWR® G2 |
| Table Longitudinal Travel (In.) | 34 |
| Table Size (L x W) (In.) | 9 x 49 |
| Weight (Lbs.) | 2,420 |
| T-Slots Number and Size (In.) | 3 - 5/8 |
| Table Cross Travel (In.) | 12 |
| Number of Spindle Speeds | Variable |
| T-Slot Centers (In.) | 2-1/2 |
| Range of Spindle Speeds (RPM) | 60-4,200 |
| Travel of Ram (In.) | 13-3/8 |
