Jet  |  SKU: JT9-691173  |  Barcode: 662755513916

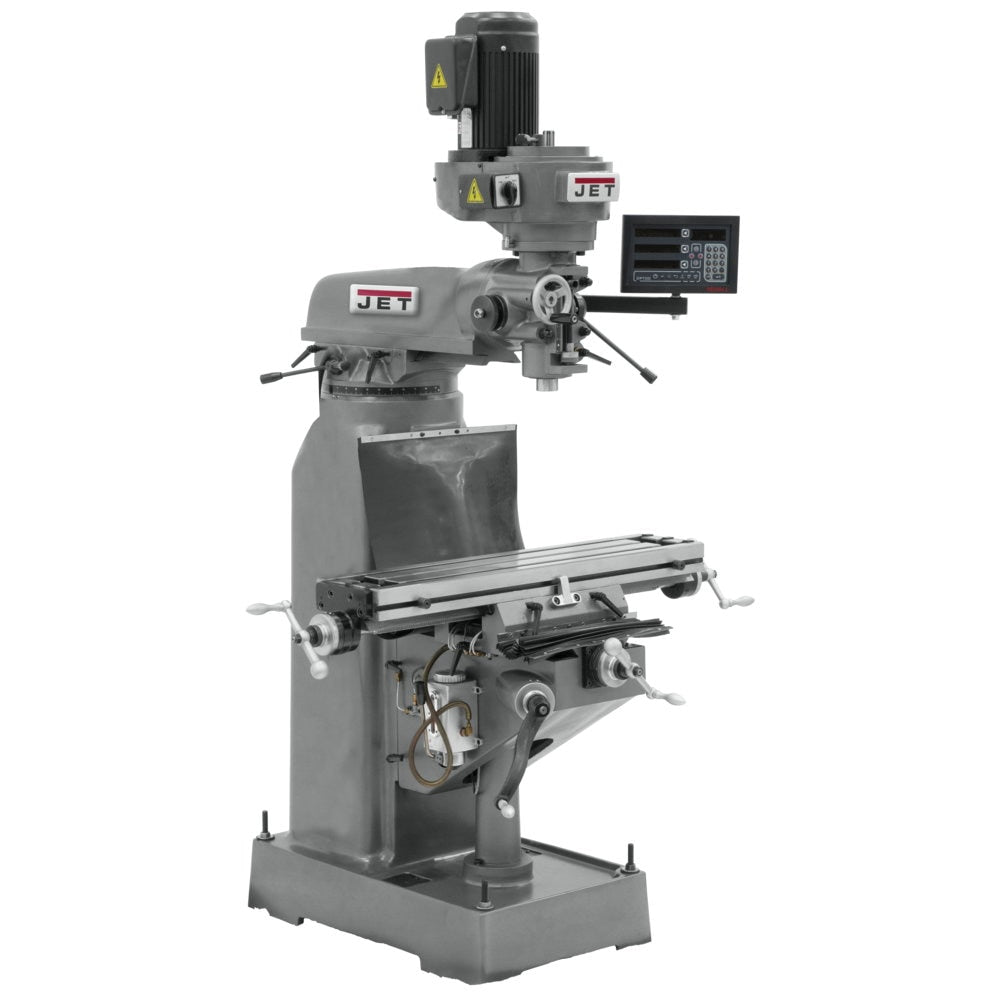

Jet JT9-691173 JVM-836-1 Mill With Newall DP700 DRO

Free Shipping
$12,259.00 $14,954.29

Description

Jet 691173 Description

The precision bored and honed milling head, coupled with the hardened and ground 8” x 36” table ensures retention of tolerances, while locks on all moving surfaces increase user safety. The JET JVM-836 has features you've come to expect that are backed by the industry-leading JET Two Year Warranty

Jet 691173 Features

  • Precision bored and honed milling head
  • Large diameter quill is chromed
  • High precision spindle bearings
  • Over 10” of front to back ram travel
  • Locks on all movable surfaces
  • Hardened and ground precision table
  • Head tilts left or right
  • Graduated scale on column
  • Precision ground dovetail ways
  • One shot lubrication system

Jet 691173 Specifications

Spindle Travel (In.) 5
Table Cross Travel (In.) 9-1/2
T-Slot Centers (In.) 2-1/2
Distance Spindle to Column (Min.) (In.) 5-1/4
Work Table Weight Capacity (Lbs.) 500
Quill Diameter (In.) 3-3/8
Collet Capacity 1/8 - 7/8
Overall Dimensions (L x W x H) (In.) 55 x 52 x 78
Number of Spindle Speeds 5
Range of Spindle Speeds (RPM) 240 - 1,550
Head Movement (Deg.) 90 R & L
Number of Axis 2
Weight (Lbs.) 1,617
Motor (HP) 1-1/2 HP, 115/230V, 1Ph
Style (Type) Step Pulley R8
Table Size (L x W) (In.) 7-7/8 x 35-3/4
Distance Spindle to Column (Max.) (In.) 15-3/4
T-Slots Number and Size (In.) 3 and 5/8
Digital Readout Newall DP700
