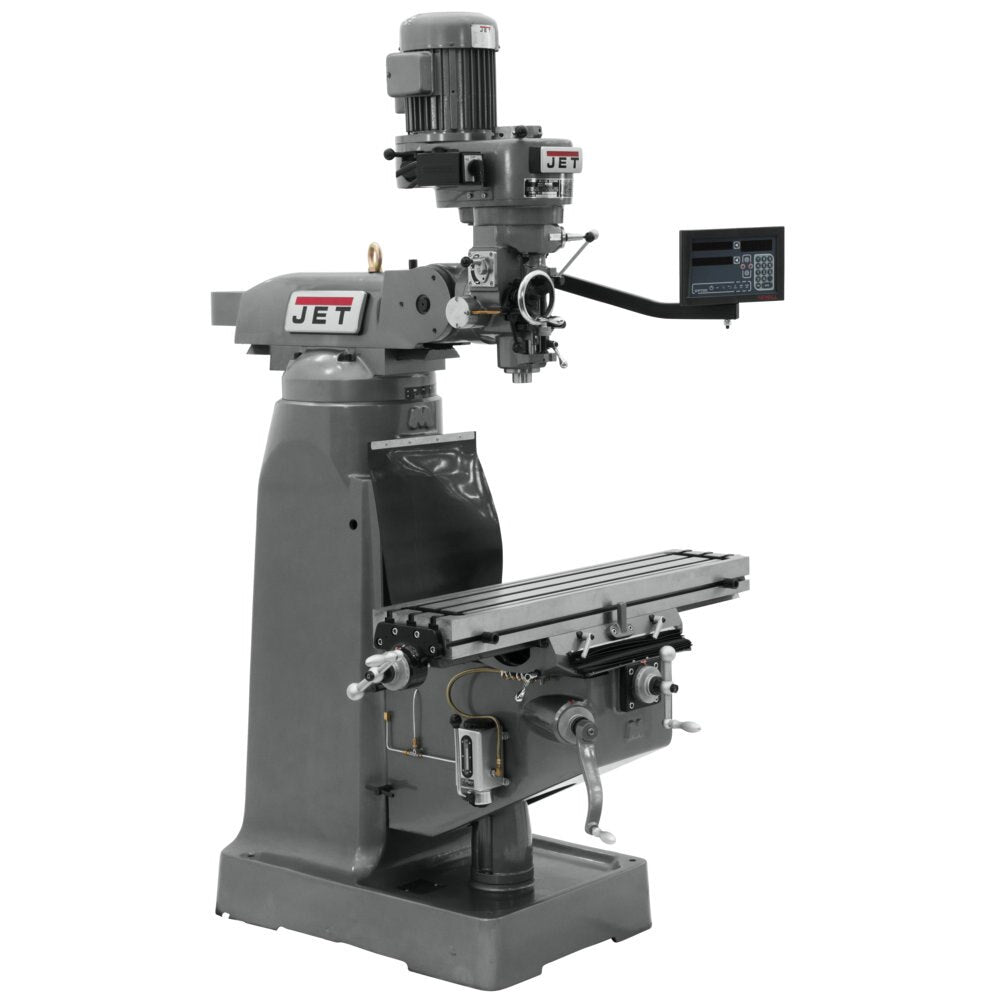

Jet JT9-691228 JVM-836-1 Mill With 3-Axis Newall DP700 DRO (Knee)
Free Shipping
$13,259.00
$16,227.14
Unit price
/
Unavailable
Description
Description
Jet 691228 Description
The precision bored and honed milling head, coupled with the hardened and ground 8” x 36” table ensures retention of tolerances, while locks on all moving surfaces increase user safety. The JET JVM-836 has features you've come to expect that are backed by the industry-leading JET Two Year Warranty
Jet 691228 Features
- Precision bored and honed milling head
- Large diameter quill is chromed
- High precision spindle bearings
- Over 10” of front to back ram travel
- Locks on all movable surfaces
- Hardened and ground precision table
- Head tilts left or right
- Graduated scale on column
- Precision ground dovetail ways
- One shot lubrication system
Jet 691228 Specifications
| Spindle Travel (In.) | 5 |
| Table Cross Travel (In.) | 9-1/2 |
| T-Slot Centers (In.) | 2-1/2 |
| Distance Spindle to Column (Min.) (In.) | 5-1/4 |
| Work Table Weight Capacity (Lbs.) | 500 |
| Quill Diameter (In.) | 3-3/8 |
| Collet Capacity | 1/8 - 7/8 |
| Overall Dimensions (L x W x H) (In.) | 55 x 52 x 78 |
| Number of Spindle Speeds | 5 |
| Range of Spindle Speeds (RPM) | 240 - 1,550 |
| Head Movement (Deg.) | 90 R & L |
| Number of Axis | 3 (Knee) |
| Weight (Lbs.) | 1,617 |
| Motor (HP) | 1-1/2 HP, 115/230V, 1Ph |
| Style (Type) | Step Pulley R8 |
| Table Size (L x W) (In.) | 7-7/8 x 35-3/4 |
| Distance Spindle to Column (Max.) (In.) | 15-3/4 |
| T-Slots Number and Size (In.) | 3 and 5/8 |
| Digital Readout | Newall DP700 |
