Jet  |  SKU: JT9-691500  |  Barcode: 731325425451

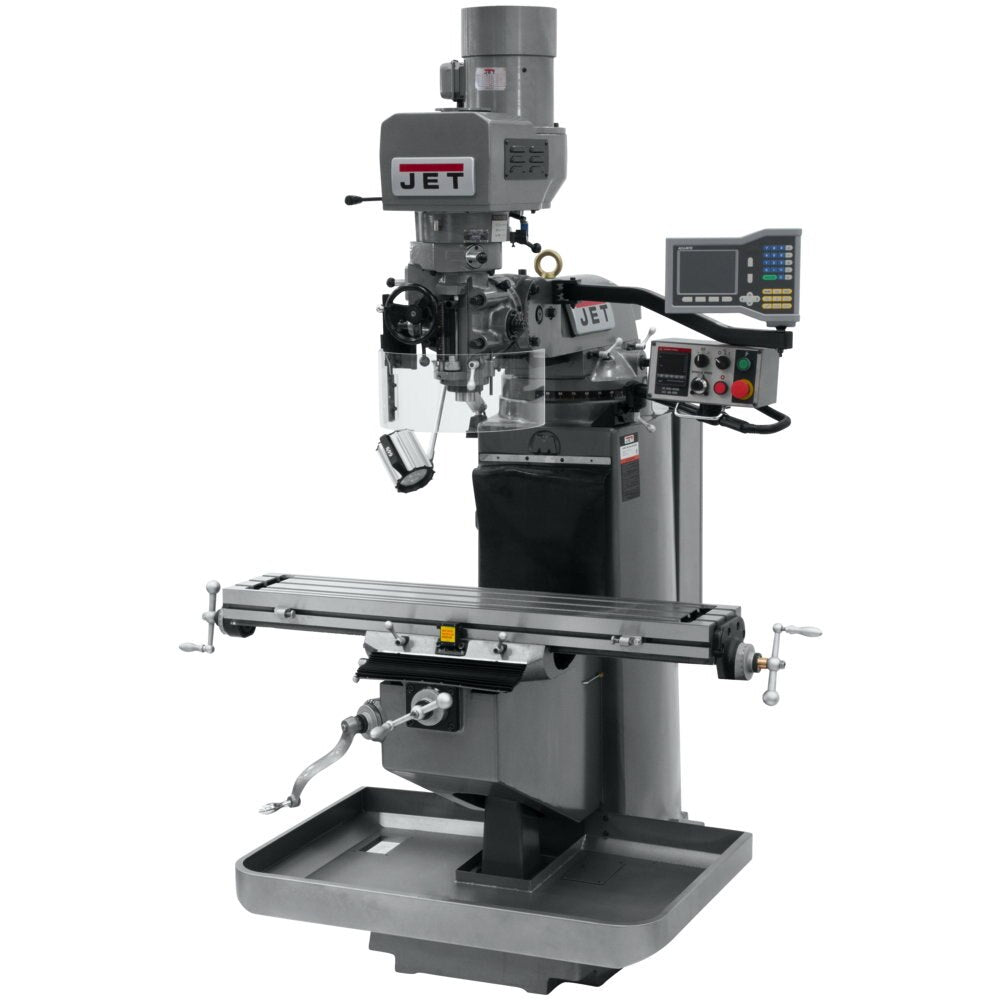

Jet JT9-691500 JTM-949EVS/230 Electronic Variable Speed Vertical Milling Machine 230V 3Ph

$16,757.99 $20,248.57

Description

Jet 691500 Features

  • New! JET designed Certified Meehanite® casting with enhanced ribbing ensures rigidity and tolerance retention
  • Swing away control box houses an e-stop and puts all controls at the operators fingertips
  • The innovative design of the machine base provides an easier solution to level the machine without raising it up off the floor
  • Automatic oiler releases 3 to 6 cc/cy of lubrication every 30 minutes
  • For added safety, the heavy-duty spindle break stops the spindle and interrupts the power, preventing accidental start-ups
  • The electrical box has been relocated to the back of the mill and houses two 115V outlets for powered accessories
  • CSA/CUS Certified
  • Class 7 spindle bearings support the spindle for maximum rigidity in heavy cutting applications
  • Spindle head is internally cooled extending bearing, belt and motor life
  • Table and ways are hardened up to 54 HRC and precision ground for greater accuracy

Jet 691500 Specifications

Spindle Travel 5"
Table Cross Travel 12-5/8"
T-Slot Centers 2-1/2"
Min. Distance Spindle to Column 4-3/4"
Quill Down Feed Rates (IPR) .0015 - .003 - .006
Work Table Weight Capacity 720 lbs
Quill Diameter 3-3/8"
Collet Capacity 1/8 - 7/8
Overall Dimensions (L x W x H) (In.) 66 x 63 x 86
Number of Spindle Speeds Variable
Range of Spindle Speeds 60 - 4,500 RPM
Head Movement 90° R & L, 45° F & B
Motor 3 HP, 230V, 3Ph
Style EVS
Table Size (L x W) (In.) 9 x 49
Max. Distance Spindle to Column 18-1/8"
T-Slots Number and Size 3 and 5/8"
Travel of Knee 15-3/4"
Travel of Ram 15-1/4"
Max Distance Spindle to Table 20-3/4"
Table Longitudinal Travel 36"
Table Longitudinal Travel With Powerfeed 30-3/4"
Saddle Width 11-1/2"
Column Width 18"
Inverter Type Delta, B
Spindle Taper (In. x TPI) R-8
