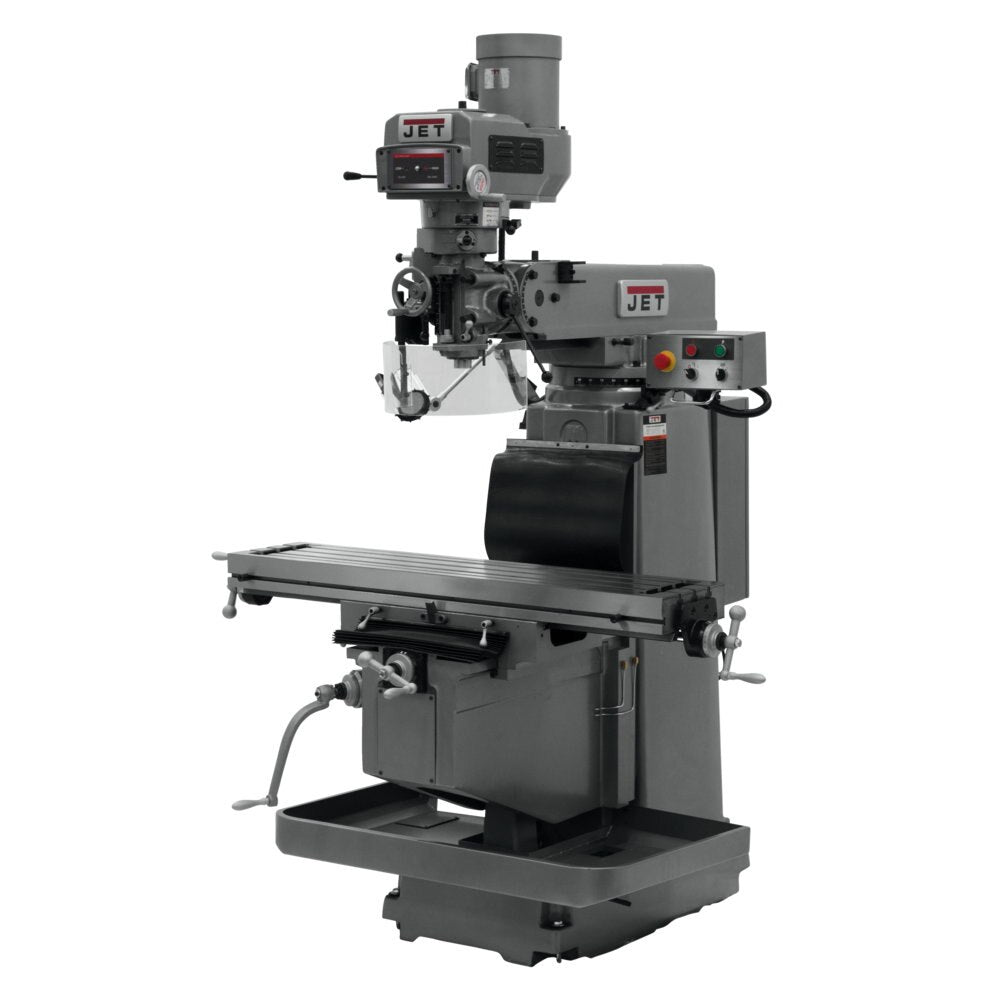

Jet JT9-691943 JTM-1254RVS with 2-Axis ACU-RITE G-2 MILLPOWER CNC
Free Shipping
$43,459.00
$53,392.49
Unit price
/
Unavailable
Description
Description
Jet 691943 Description
JET offers complete, factory-installed CNC packages with your choice of 2 or 3-axis CNC controls. The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite® casted JET Vertical Mills with CNC packages deliver accurate results every time. All the features you've come to expect backed by the industry-leading JET Two Year Warranty
Jet 691943 Features
- CNC Vertical Milling Machine Package JTM-1254RVS
- Features of the ACU-RITE MILLPWR G2 CNC Package
- Certified Meehanite® Castings
- Precision bored and honed milling head
- High precision Class 7 spindle bearings
- Quick Spindle Feed Nut
- Features of the ACU-RITE MILLPWR G2 CONTROLLER
- USB + Ethernet compatible
- Simplified navigation that eliminates multiple menu screens
- 12.1" High resolution display (1024 x 768) with 3D graphics
Jet 691943 Specifications
| Quill Down Feed Rates (IPR) | .0015 - .003 - .006 |
| Travel of Knee (In.) | 19-1/4 |
| Head Movement (Deg.) | 90°R & L 45° F & B |
| Motor (HP) | 5HP, 230/460V, 3Ph |
| Overall Dimensions (L x W x H) (In.) | 104-1/4 x 79-7/8 x 92-1/8 |
| Spindle Travel (In.) | 5 |
| Style (Type) | CNC |
| Spindle Taper (In. x TPI) | R-8 |
| Work Table Weight Capacity (Lbs.) | 925 |
| Table Longitudinal Travel (In.) | 33-7/8 |
| Table Size (L x W) (In.) | 12 x 54 |
| Table Cross Travel (In.) | 15-1/3 |
| T-Slot Centers (In.) | 2-1/2 |
| Range of Spindle Speeds (RPM) | 80 - 3,800 |
| Travel of Ram (In.) | 25 |
| Distance Spindle to Column (Max.) (In.) | 27-3/4 |
| Distance Spindle to Column (Min.) (In.) | 7-1/2 |
| Quill Diameter (In.) | 4-1/8 |
| Max Distance Spindle to Table (In.) | 23 |
| Column Width (In.) | 14-1/4 |
| Saddle Width (In.) | 25-5/8 |
