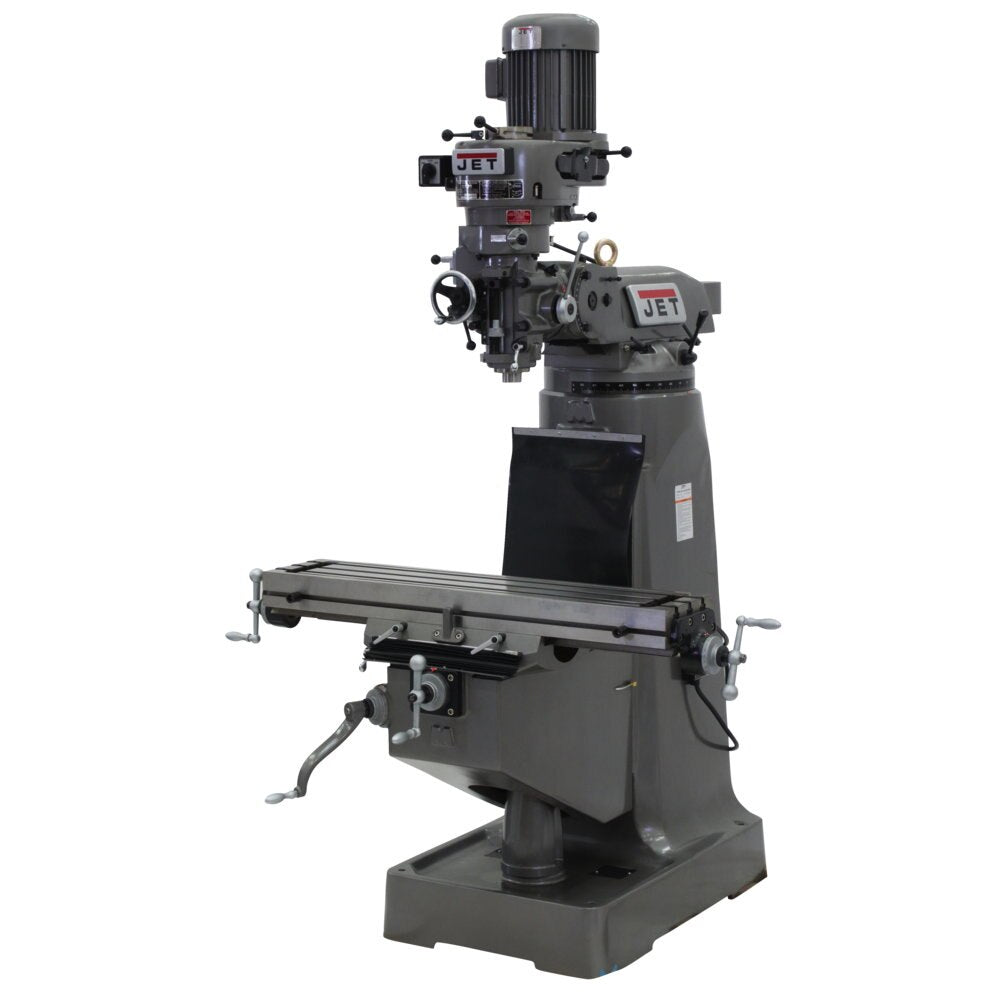

Jet JT9-692195 JTM-2 Mill With Newall DP500 DRO With X & Y-Axis Powerfeeds
Free Shipping
$14,999.00
$18,542.86
Unit price
/
Unavailable
Description
Description
Jet 692195 Description
Three-stage power down feed with auto stop, high precision Class 7 spindle bearings and the rugged stability of Meehanite® castings ensures you get everything you need from the JTM-1 and 2 models. The internally cooled spindle head prevents seizing, and JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty
Jet 692195 Features
- Certified Meehanite® Castings
- Precision bored and honed milling head
- Large diameter quill is chromed
- High precision Class 7 spindle bearings
- Spindle head is internally cooled
- Heavy duty splined motor drive
- One piece quill pinion and shaft
- Three stage power downfeed with automatic stop
- Heavy duty spindle brake
- Precision hardened and ground ways
Jet 692195 Specifications
| Spindle Travel | 5" |
| Table Cross Travel | 12-1/2" |
| T-Slot Centers | 2-1/2" |
| Min. Distance Spindle to Column | 4-1/2" |
| Quill Down Feed Rates (IPR) | .0015 - .003 - .006 |
| Work Table Weight Capacity | 550 lbs |
| Quill Diameter | 3-3/8" |
| Collet Capacity | 1/8 - 7/8 |
| Overall Dimensions (L x W x H) (In.) | 57 x 64 x 82 |
| Number of Spindle Speeds | 8 |
| Range of Spindle Speeds | 80 - 2,720 RPM |
| Head Movement | 90° R & L, 45° F & B |
| Motor | 2 HP, 115/230V, 1Ph |
| Style | Step Pulley R8 |
| Table Size (L x W) (In.) | 9 x 42 |
| Max. Distance Spindle to Column | 19" |
| T-Slots Number and Size | 3 and 5/8" |
| Digital Readout | Newall DP500 |
| Powerfeed | X and Y-Axis |
| Travel of Knee | 14-1/2" |
| Travel of Ram | 13-3/8" |
| Max Distance Spindle to Table | 17-1/2" |
| Table Longitudinal Travel | 23-7/8" |
| Table Longitudinal Travel With Powerfeed | 20-2/7" |
| Spindle Taper (In. x TPI) | R-8 |
