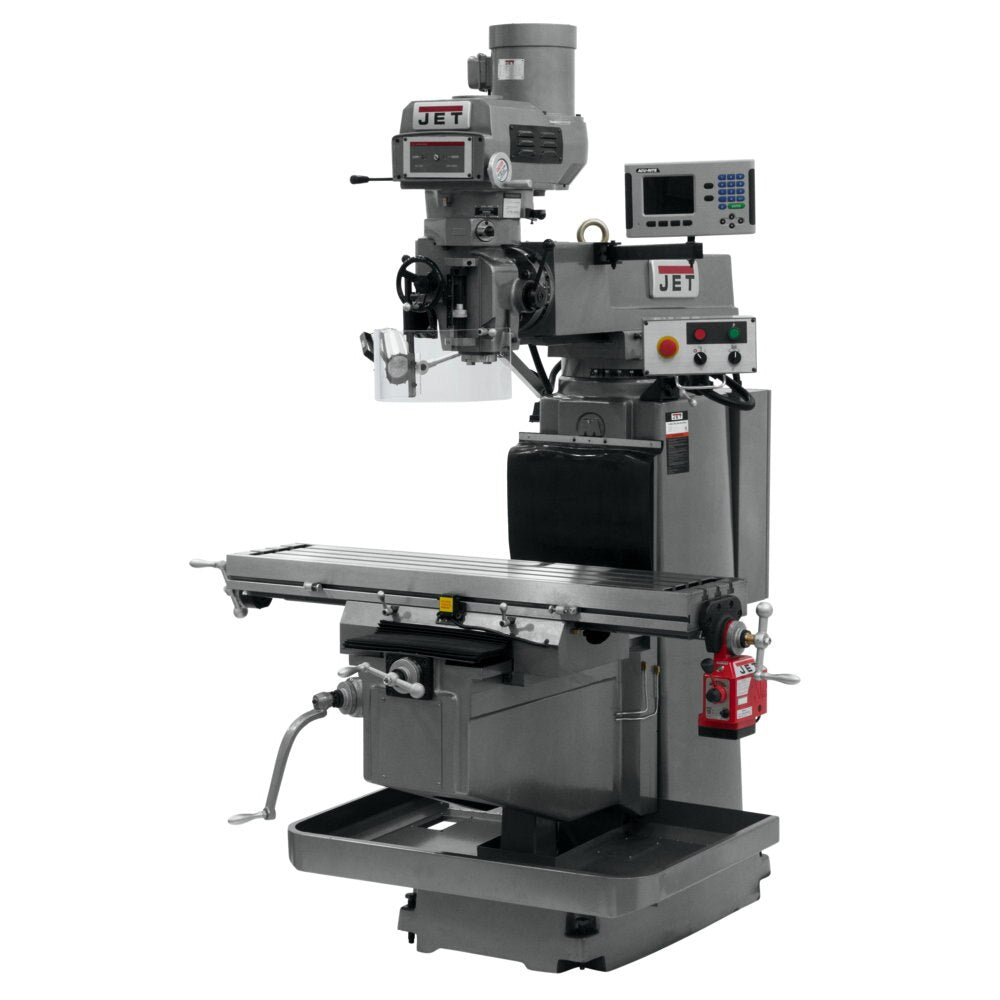

Jet JT9-698049 JTM-1254VS Vertical Mill with 200S DRO, X Powerfeed
Free Shipping
$23,799.00
$29,238.57
Unit price
/
Unavailable
Description
Description
Jet 698049 Description
The JET JTM-1254RVS and JTM-1254VS combine durability, strength and precision engineering, resulting in 12" x 54" Variable Speed Vertical Milling Machines that turn out high quality components. These heavy-duty mills are offered in both R-8 & NT-40 Spindles with all the features you've come to expect backed by the industry-leading JET Two Year Warranty.
Jet 698049 Features
- Certified Meehanite® Castings
- Precision bored and honed milling head
- High precision Class 7 spindle bearings
- Quick Spindle Feed Nut
- Three-stage power downfeed with automatic stop
- Heavy-duty spindle brake
- Precision hardened and ground ways and table
- Three Precision ground t-slots
- Turcite B on X & Y Axis
- Adjustable gibs throughout
Jet 698049 Specifications
| Spindle Travel (In.) | 5 |
| Table Cross Travel (In.) | 15-1/3 |
| T-Slot Centers (In.) | 2-1/2 |
| Distance Spindle to Column (Min.) (In.) | 7 1/2 |
| Quill Down Feed Rates (IPR) | .0015–.003–.008 |
| Work Table Weight Capacity (Lbs.) | 925 |
| Quill Diameter (In.) | 4-1/8 |
| Collet Capacity | 1/8 - 1 |
| Overall Dimensions (L x W x H) (In.) | 92-1/8 x 79-7/8 x 104-1/4 |
| Range of Spindle Speeds (RPM) | 80 - 3,800 |
| Head Movement (Deg.) | 90°R & L 45° F & B |
| Number of Axis | 2 |
| Motor (HP) | 5HP, 230/460V, 3Ph |
| Style (Type) | Variable Speed NT40 |
| Table Size (L x W) (In.) | 12 x 54 |
| Distance Spindle to Column (Max.) (In.) | 27-3/4 |
| Digital Readout | ACU-RITE 200S |
| Powerfeed | X-Axis |
| Travel of Knee (In.) | 19-1/4 |
| Travel of Ram (In.) | 25 |
| Max Distance Spindle to Table (In.) | 23 |
| Table Longitudinal Travel (In.) | 33-7/8 |
| Table Longitudinal Travel With Powerfeed (In.) | 28-1/4 |
| Saddle Width (In.) | 25-5/8 |
| Column Width (In.) | 14-1/4 |
| number of axis | 2 |
| Spindle Taper (In. x TPI) | NST #40 |
