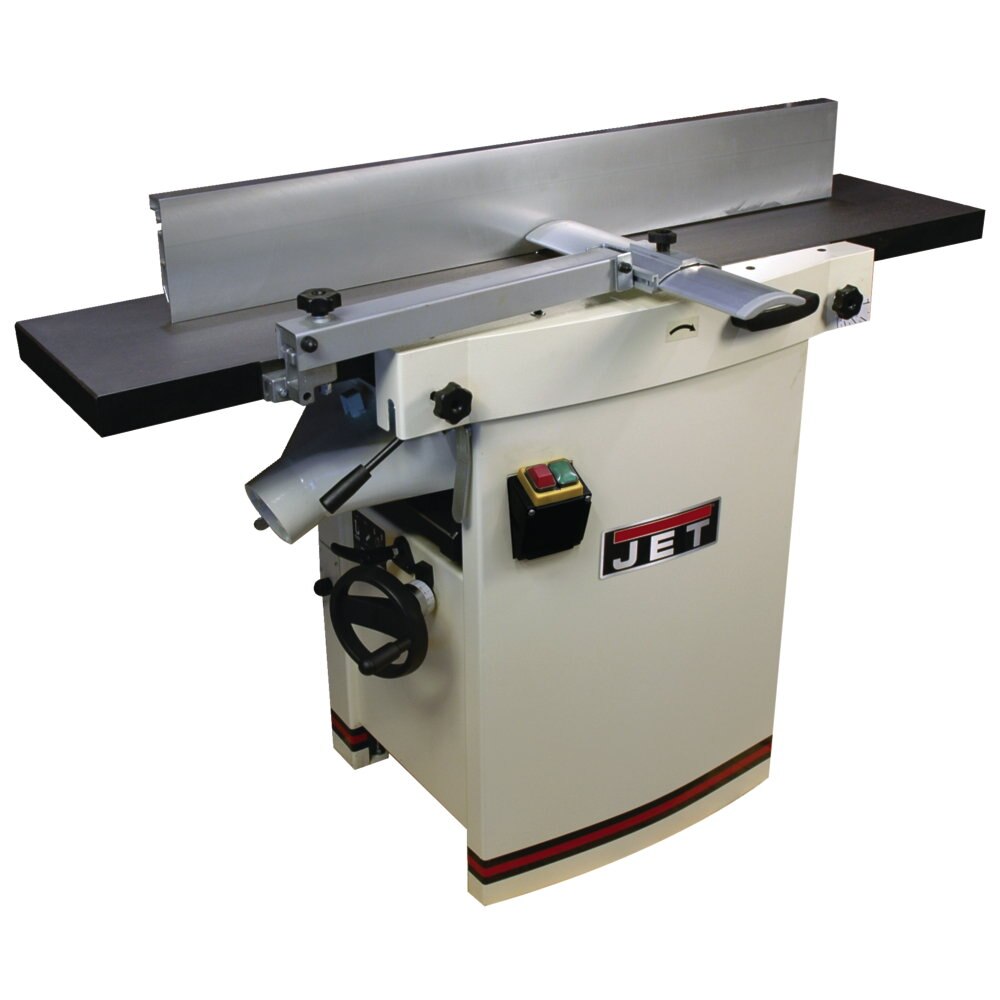

Jet JT9-708476 JJP-12HH 12" Planer /Jointer with Helical Head
Description
Description
Jet 708476 Description
The innovative JET JJP-12HH Helical Head 12" Jointer/Planer takes our award-winning jointer/planer combination machine and makes it an ever better investment. With the addition of our quality helical cutterhead with indexable carbide inserts, the all-new JJP-12HH sets the standard for creating superior stock in your own workshop.
Jet 708476 Features
- Helical cutterhead with indexable carbide inserts for a superior finish and quieter cut
- Parallelogram design keeps the table close to the cutterhead for improved finish and allows for precise depth of cut adjustments
- Extra large aluminum extruded fence with centered controls for quick adjustments
- Extremely quick changeover between jointing and planing functions. Fence does not need to be removed
- Powerful 3HP induction motor easily handles the toughest jointing and planing tasks
- Heavy-duty, one-piece steel closed stand includes mounting tabs for increased stability
- Built-in dust chute with 4" dust port used for both jointing and planing operations
- Large handwheel for quick and precise adjustments of planer table
- Heavy-duty cast iron tables with a machined finish to ensure accuracy and flatness
- Magnetic switch provides safer and more reliable operation
Jet 708476 Specifications
Jointer Cutting Capacity (W x D) (In.) | 12 x 1/8 |
Jointer Table Size (L x W) (In.) | 55 x 12 |
Cutterhead Diameter (In.) | 2-3/4 |
Prewired Voltage (V.) | 230 |
Fence Positive Stops (Deg.) | 90, 45 R |
Helical Knife Size (L x W x T) (In.) | 59/100 x 59/100 x 1/100 |
Style (Type) | Planer/Jointer |
Planer Cutting Capacity (W x D) (In.) | 12 x 5/32 |
Fence Size (L x H) (In.) | 43 x 6 |
Planer Table Size (L x W) (In.) | 21-1/4 x 12 |
Motor Power (HP) | 3 |
Cutterhead Speed (RPM) | 5500 |
Dust Port Outside Diameter (In.) | 4 |
Motor Voltage (V.) | 230 |
Dust Collection Minimum CFM Required (CFM) | 400 |
Fence Tilt (Deg.) | 90 - 45 R |
