Jet  |  SKU: JT9-708524  |  Barcode: 662755171147

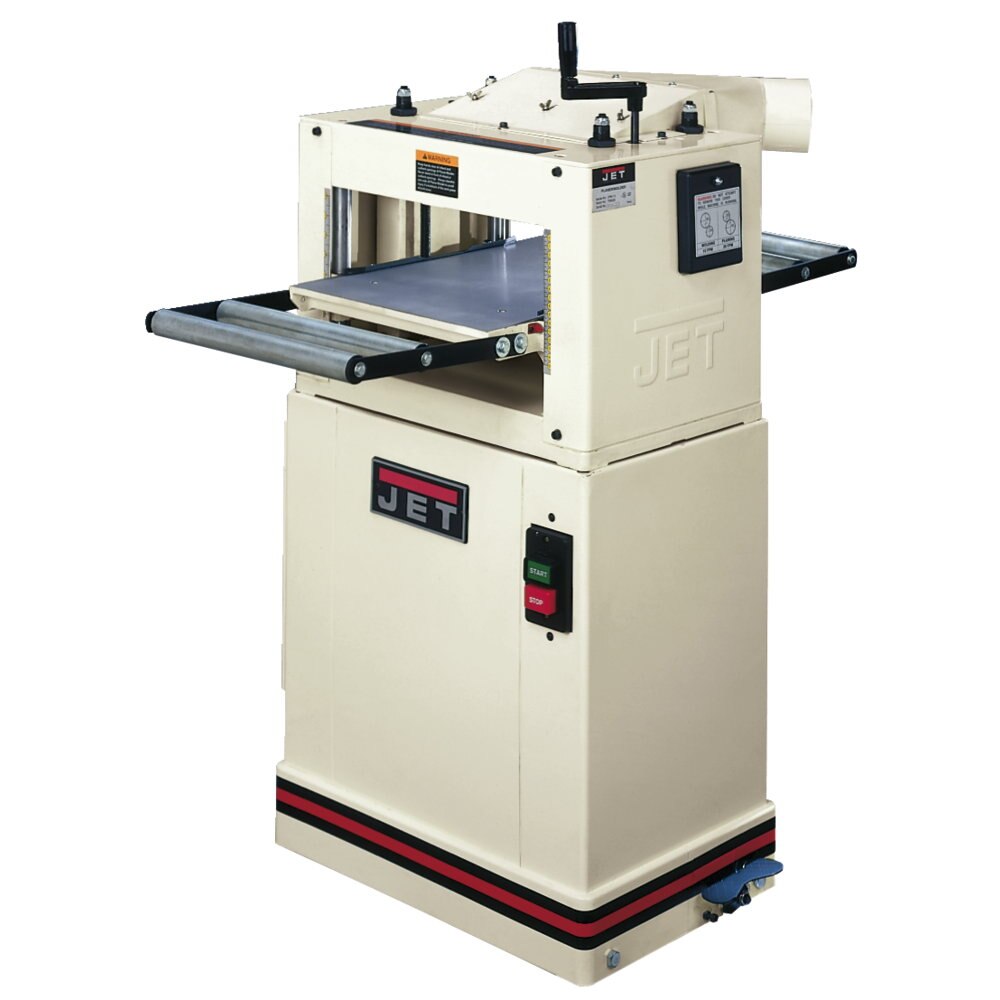

Jet JT9-708524 JPM-13CS, 13" Closed Stand Planer / Molder, 1-1/2HP, 1Ph, 115/230V

Free Shipping
$1,699.99 $2,088.56

Description

Jet 708524 Description

The JET JPM-13CS 13" Closed Stand Planer / Molder boasts a 1.5 HP motor. The sturdy cast iron table and base provide strength and reduce vibration during use. The Three cutter head design produces a superior finish. Built in lockable caster add support and stability to the machine while allowing it to be maneuverable.

Jet 708524 Features

  • Cast iron table and base provide strength and reduce vibration during use
  • Four precision-ground column design feature adds stability when raising and lowering the table
  • Three cutter head design produces a superior finish in either application
  • Two speed gear box has feed rates set for optimum planing and molding results
  • Molding cutter head accommodates over 40 standard molding cutter sets; most 2" or smaller heads can be installed without removing the planning knives to save you set-up time
  • Infeed and outfeed rollers are adjustable and rubber-coated to support your workpiece without marring the wood
  • Top-mounted height adjustment handle is easy to use for quick table height changes
  • Totally enclosed fan-cooled 1-1/2HP motor uses two matched V-belts to deliver smooth, consistent power to the cutter head
  • Exclusive angled 4" dust port keeps the dust hose out of the way while providing efficient chip and dust removal
  • Built-in lockable casters add support and stability to machine while in use

Jet 708524 Specifications

Prewired Voltage (V.) 115
Cutterhead Diameter (In.) 2-9/16
Dust Port Outside Diameter (In.) 4
Motor Phase (PH) 1
Number of Knives 3
Motor Voltage (V.) 115/230
Cutterhead Speed (RPM) 4500
Style (Type) Planer/Molder
Motor Amps 15/7.5
Motor Power (HP) 1-1/2
Cuts Per Minute 13500
Minimum Planing Length (In.) 14
Maximum Planing Width (In.) 13
Feed Rate - Planing (FPM) 20
Feed Rate - Molding (FPM) 10
Maximum Planing Thickness (In.) 6-1/8
