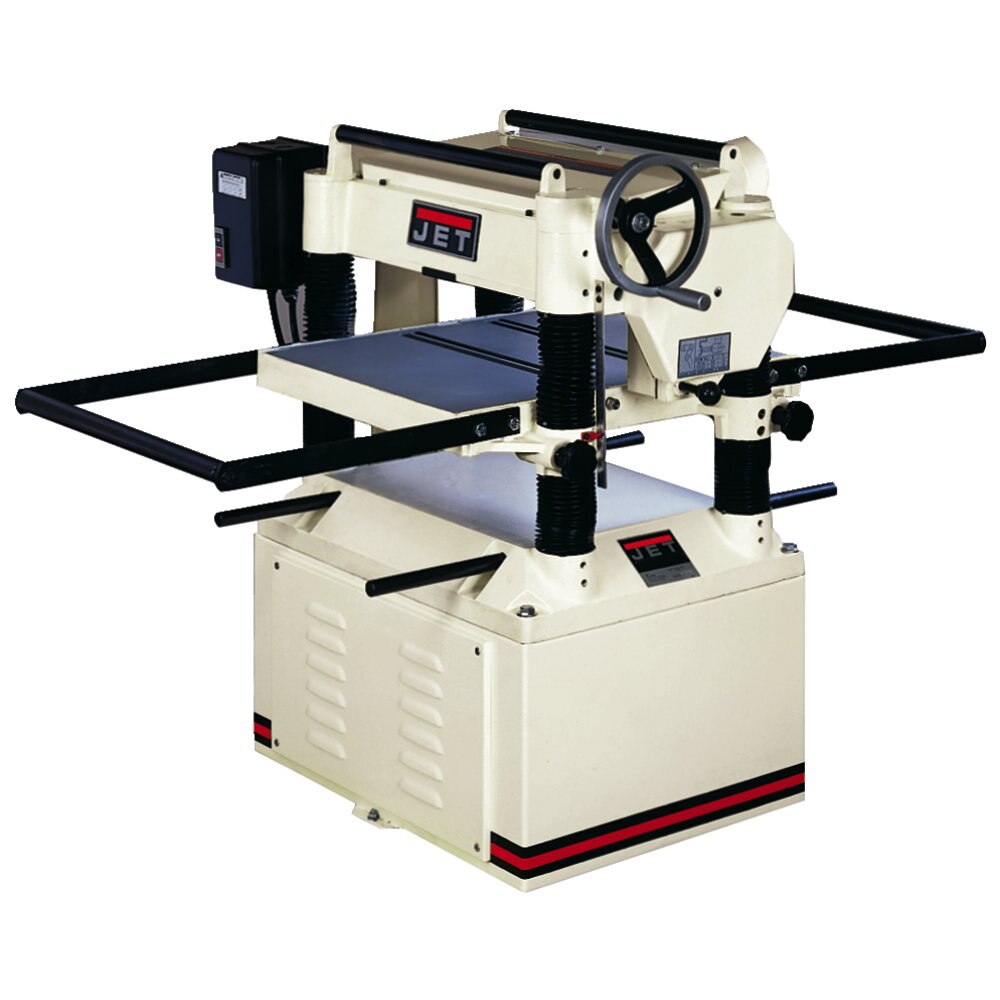

Jet JT9-708528 JWP-208-1, 20" 3HP, 1Ph Planer
Description
Description
Jet 708528 Description
The JET JWP-208-1 planer quickly and quietly transforms rough lumber into smooth boards, with a full 20” planing width. Its heavy-duty cast iron and steel construction keeps the workpiece steady and supported, while the conveniently located two-speed gear box allows for quick and easy feed rate adjustments. This machine means business with a powerful 3 HP induction motor. You’ll appreciate the sets of three steel infeed and outfeed rollers to help prevent annoying snipe. A large cast-iron table with smooth-as-glass surface makes this planer a beautiful addition to the shop. And since planers kick up a lot of dust, we made dust collection easy with an exclusive angled 4" dust port to keep your hose out of the way.
Jet 708528 Features
- Four high-speed steel cutter knives produce faster, smoother cutting
- Heavy-duty cast iron and steel construction for added strength and durability
- Two-speed gear box with automatic chain tensioner lets you adjust the feed rate to meet your needs
- Large, cast iron, precision ground table for precise workpiece support
- Powerful 3 HP TEFC induction motor with three V-belt transmission for smooth and consistent power
- Sets of three steel infeed and outfeed rollers to help in the prevention of snipe
- Positive gear drive moves table quickly and accurately
- Work table is precision-ground and polished for consistently smooth operation
- Large handwheel with positive gear drive allows for quick and accurately table adjustments
Jet 708528 Specifications
| Cutterhead Speed (RPM) | 5000 |
| Feed Rate (FPM) | 24/31 |
| Motor Power (HP) | 3 |
| Dust Collection Minimum CFM Required (CFM) | 400 |
| Number of Knives | 4 |
| Maximum Planing Thickness (In.) | 8 |
| Cutterhead Diameter (In.) | 3-3/16 |
| Motor Amps | 14 |
| Dust Port Outside Diameter (In.) | 5 |
| Motor Phase (PH) | 1 |
| Prewired Voltage (V.) | 230 |
| Maximum Planing Width (In.) | 20 |
| Minimum Planing Length (In.) | 6-3/4 |
| Motor Voltage (V.) | 230 |
| Style (Type) | Planer |
| Maximum Full Width Depth of Cut (In.) | 3/32 |
| Table Size (L x W) (In.) | 25-3/4 x 20 |
