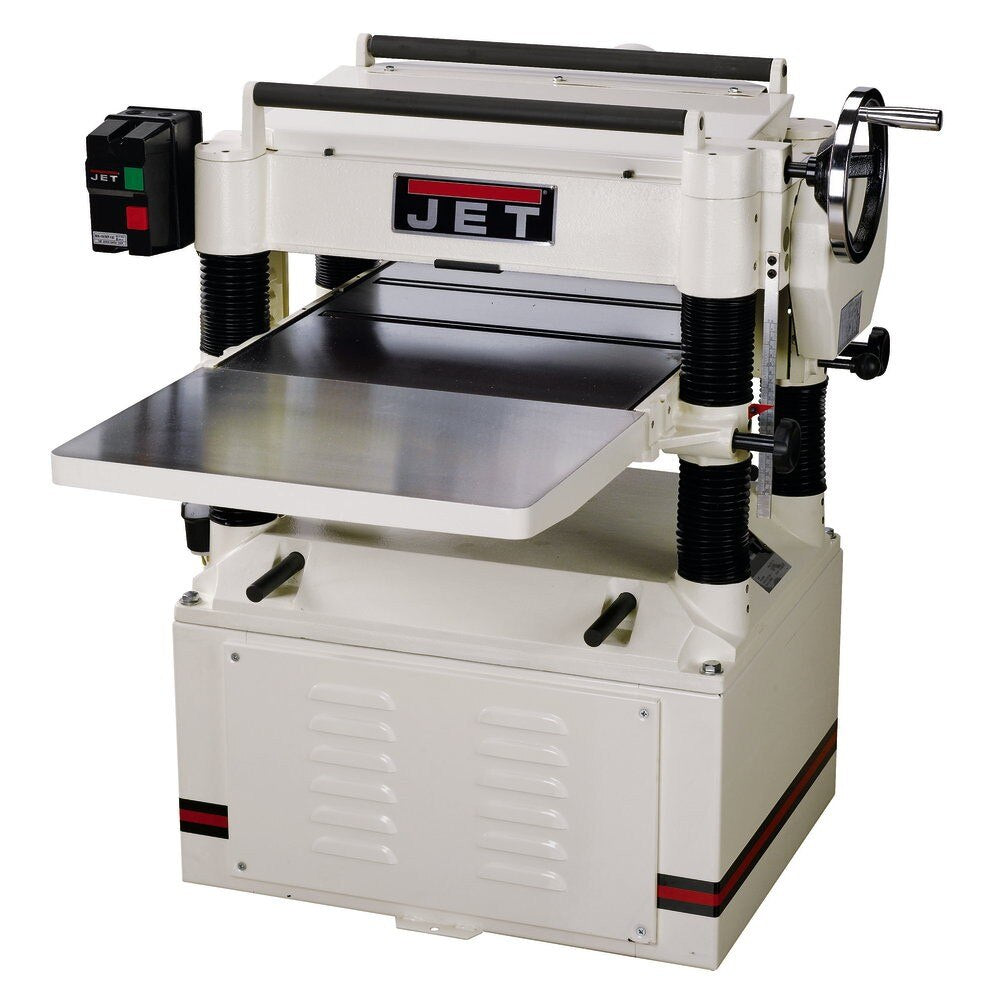

Jet JT9-708544 JWP-208HH, 20" Planer 5HP 1Ph, Helical Head
Description
Description
Jet 708544 Description
JWP-208HH-1 helical head planer quickly and quietly transforms rough lumber into smooth boards, with a full 20” planing width. Its heavy-duty cast iron and steel construction keeps the workpiece steady and supported, while the conveniently located two-speed gear box allows for quick and easy feed rate adjustments. This machine means business with a powerful 5 HP induction motor combined with a helical insert cutterhead housing 92 staggered carbide knives. You’ll appreciate the sets of three steel infeed and outfeed rollers to help prevent annoying snipe. A large cast-iron table with smooth-as-glass surface makes this planer a beautiful addition to the shop.
Jet 708544 Features
- Helical cutterhead with indexable carbide inserts for a superior finish and quieter cut
- Heavy-duty cast iron and steel construction for added strength and durability
- Two-speed gear box with automatic chain tensioner lets you adjust the feed rate to meet your needs
- Large, cast iron, precision ground table for precise workpiece support
- Powerful 5 HP TEFC induction motor with three V-belt transmission for smooth and consistent power
- Positive gear drive moves table quickly and accurately
- Cast iron infeed and outfeed tables come with the machine
- Large handwheel with positive gear drive allows for quick and accurately table adjustments
Jet 708544 Specifications
| Cutterhead Speed (RPM) | 5000 |
| Feed Rate (FPM) | 24/31 |
| Motor Power (HP) | 5 |
| Dust Collection Minimum CFM Required (CFM) | 400 |
| Number of Speeds | 2 |
| Number of Knives | 92 Four-Sided Inserts |
| Maximum Planing Thickness (In.) | 8 |
| Cutterhead Diameter (In.) | 3-3/16 |
| Motor Amps | 27 |
| Dust Port Outside Diameter (In.) | 5 |
| Motor Phase (PH) | 1 |
| Prewired Voltage (V.) | 230 |
| Maximum Planing Width (In.) | 20 |
| Minimum Planing Length (In.) | 6-3/4 |
| Motor Voltage (V.) | 230 |
| Style (Type) | Planer |
| Maximum Full Width Depth of Cut (In.) | 3/32 |
| Table Size (L x W) (In.) | 25-3/4 x 20 |
