Jet JT9-708675PK DELUXE XACTA SAW 3HP, 1Ph, 50" Rip
Description
Description

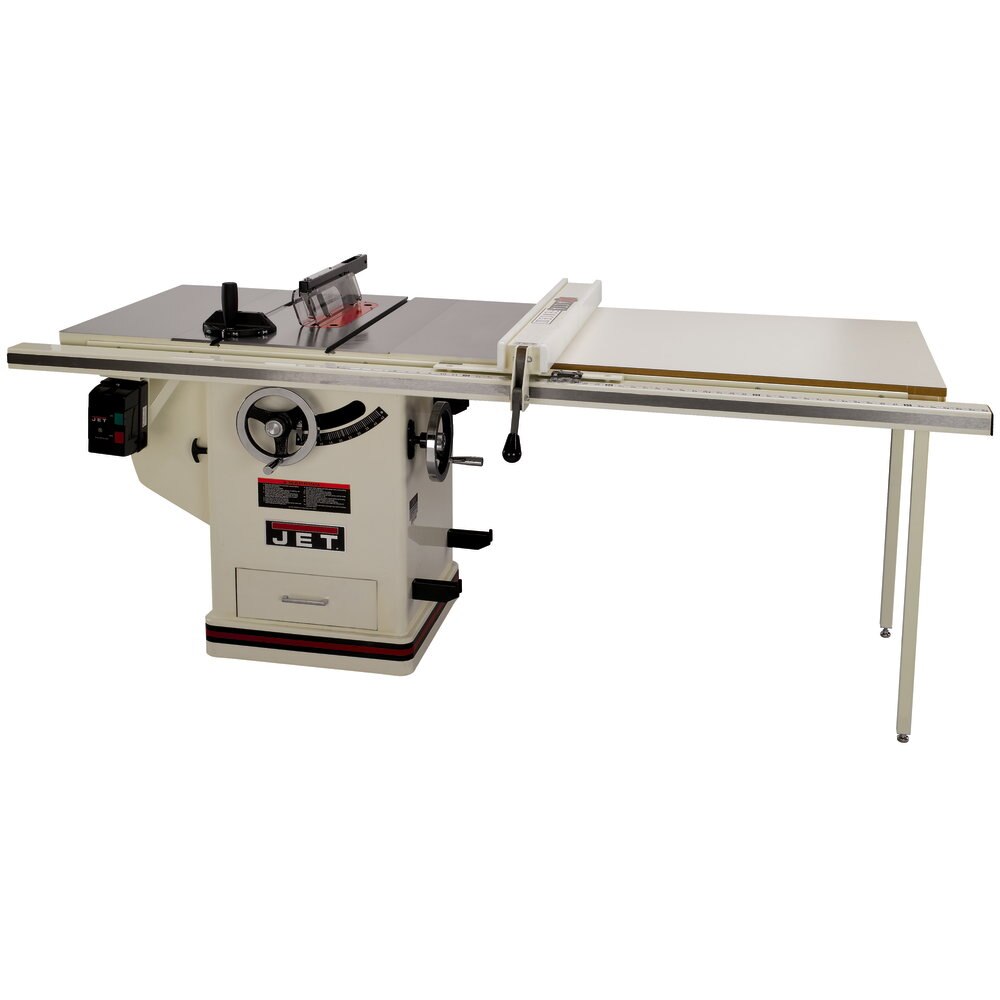

Jet 708675PK Description
If you've ever wondered about what a table saw can really do, look no further. Introducing the new JET® 10" DELUXE XACTA® SAW. The Quick release riving knife and integrated arbor lock keeps the operator safe and more efficient. The DELUXE XACTA® SAW offers an upgraded Poly-V belt drive system for smooth operation and optimal power transfer, a fully shrouded blade for highly efficient dust collection. The 26" x 30" wings and deeper table gives you even more cast iron to work on. A built-in 12.5" x 18" x 4 " storage drawer sealed from the cabinet keeps your necessities within arms reach, also includes an on-board fence and miter gauge storage.
Jet 708675PK Features
- EXCLUSIVE 50" Commercial XACTA® Fence II with T-square design
- Quick release riving knife greatly reduces binding/kickback risk
- Push button arbor lock for rapid blade change
- Shrouded Blade increases dust collection efficiency
- Standard 11" left and right cast iron extension wings provides the largest table surface in its class
- Poly-V drive belt system delivers quiet, efficient operation
- Rail-mounted magnetic switch is easy to reach and provides overload protection
- Enclosed cabinet with built-in sealed storage drawer
- Hinged motor cover on cabinet gives quick access to the motor and belts
- Deluxe miter gauge with adjustable positive stops and large soft grip handles provides large crosscutting capacity and accurate miters
Jet 708675PK Specifications
| Motor Voltage (V.) | 230 |
| Maximum Depth of Cut at 45 Degrees (In.) | 2-1/8 |
| Motor Power (HP) | 3 |
| Maximum Width of Dado (In.) | 13/16 |
| Table Size (L x W) (In.) | 29 x 20 |
| Table in Front of Saw Blade at Maximum Depth of Cut (In.) | 10 |
| Table Size with Extension (L x W) (In.) | 29 x 42 |
| Motor Amps | 14.5 |
| Motor Phase (PH) | 1 |
| Arbor Speed (RPM) | 4300 |
| Maximum Rip Left of Blade (In.) | 13 |
| Maximum Depth of Cut (In.) | 3 |
| Miter Gauge Type | Deluxe |
| Table Type | Cast Iron |
| Arbor Diameter (In.) | 5/8 |
| Dust Collection Minimum CFM Required (CFM) | 350 |
| Maximum Rip Right of Blade (In.) | 50 |
| Prewired Voltage (V.) | 230 |
| Maximum Diameter of Dado (In.) | 8 |
