Jet  |  SKU: JT9-710704K  |  Barcode: 731325175370

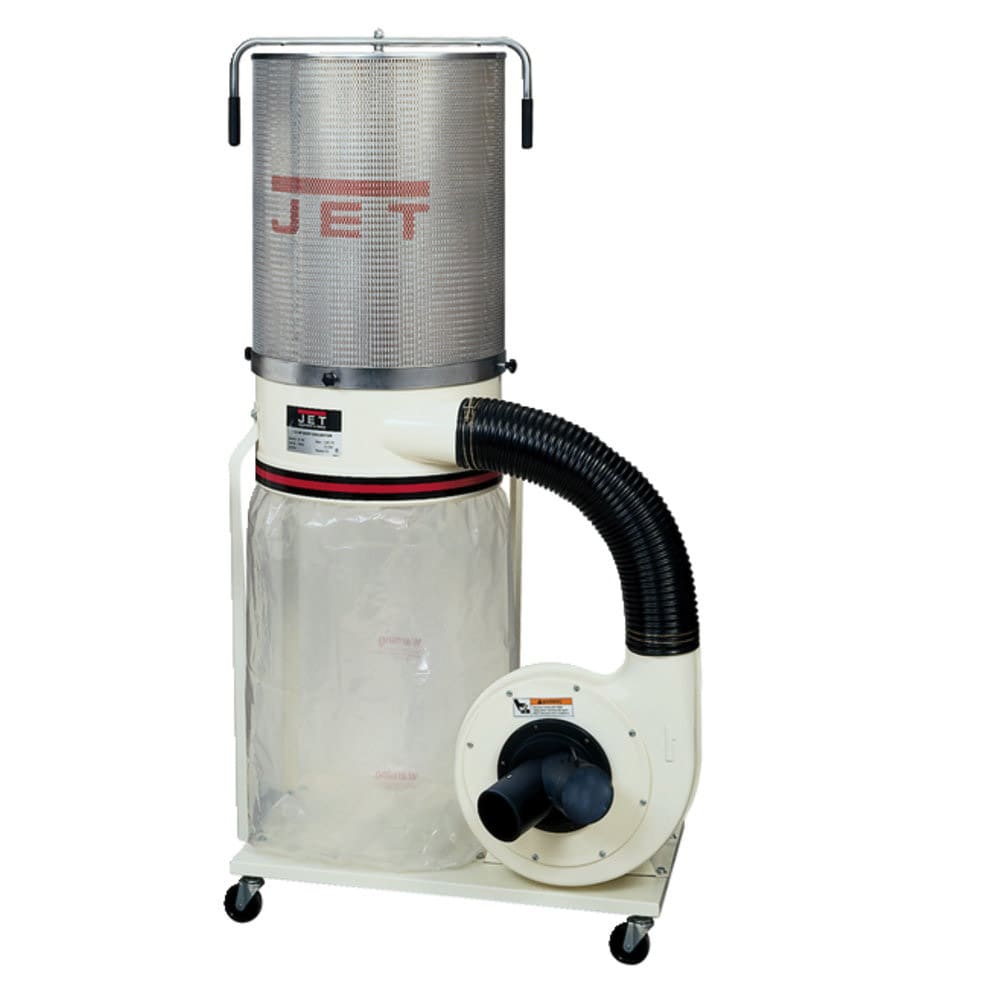

Jet JT9-710704K DC-1200VX-CK3 Dust Collector, 2HP 3PH 230/460V, 2-Micron Canister

Free Shipping
$1,099.99 $1,351.41

Description

Jet 710704K Description

The JET DC-1200VX features the exclusive Vortex Cone™ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The high air velocity (CFM) stands up to any competitive specifications, and the industrial controls are designed for years of durable use. Collection bags have a snap ring for fast installation and removal. Casters offer maneuverability within the shop.

Jet 710704K Features

  • Vortex Cone improves chip separation and collector bag packing efficiency
  • Eliminates premature filter clogging for sustained performance
  • Single-stage design for economical and quiet operation
  • Industrial controls designed for years of trouble-free use
  • Quick-connect collection bags with elastic band for fast, easy installation and removal
  • High air velocity (CFM) design stands up to any competitive specifications
  • Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
  • Includes four casters for maneuverability and total portability

Jet 710704K Specifications

Style (Type) Canister
Prewired Voltage (V.) 230
Motor Power (HP) 2
1-Hose Connection Diameter (In.) 6
Collection Bag Length (In.) 29
Velocity @ 4" (FPM) 13,745
Filter Bag/Canister Length (In.) 25
Impeller Diameter (In.) 12
Motor Voltage (V.) 230/460
Air Flow @ 4" (CFM) 1200
Motor Phase (PH) 3
Collection Bag Capacity (Cu. Ft.) 5-3/10
Impeller Material Steel
Number of Air Inlets 1 at 6", 2 at 4"
Static Pressure (Wc.) 11-1/2
Sound Rating (Db.) 80 - 85
Bag Diameter (In.) 20
2-Hoses Connection Diameter (In.) 4
Motor Amps 6/3
