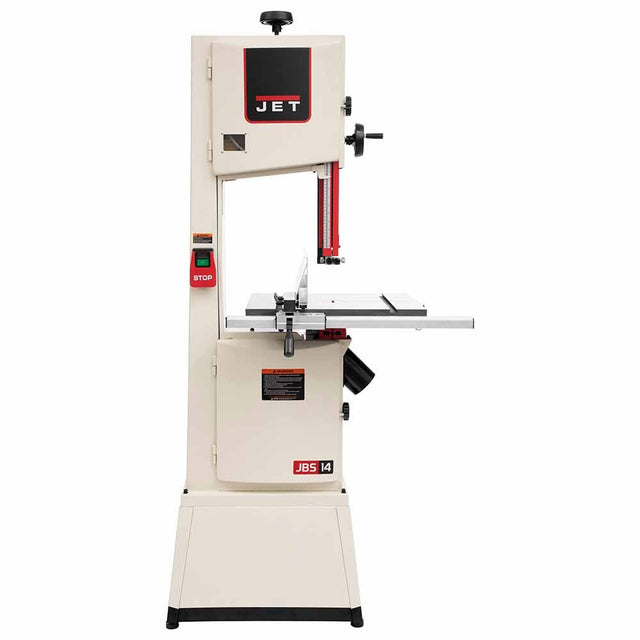

Jet 714400K Description

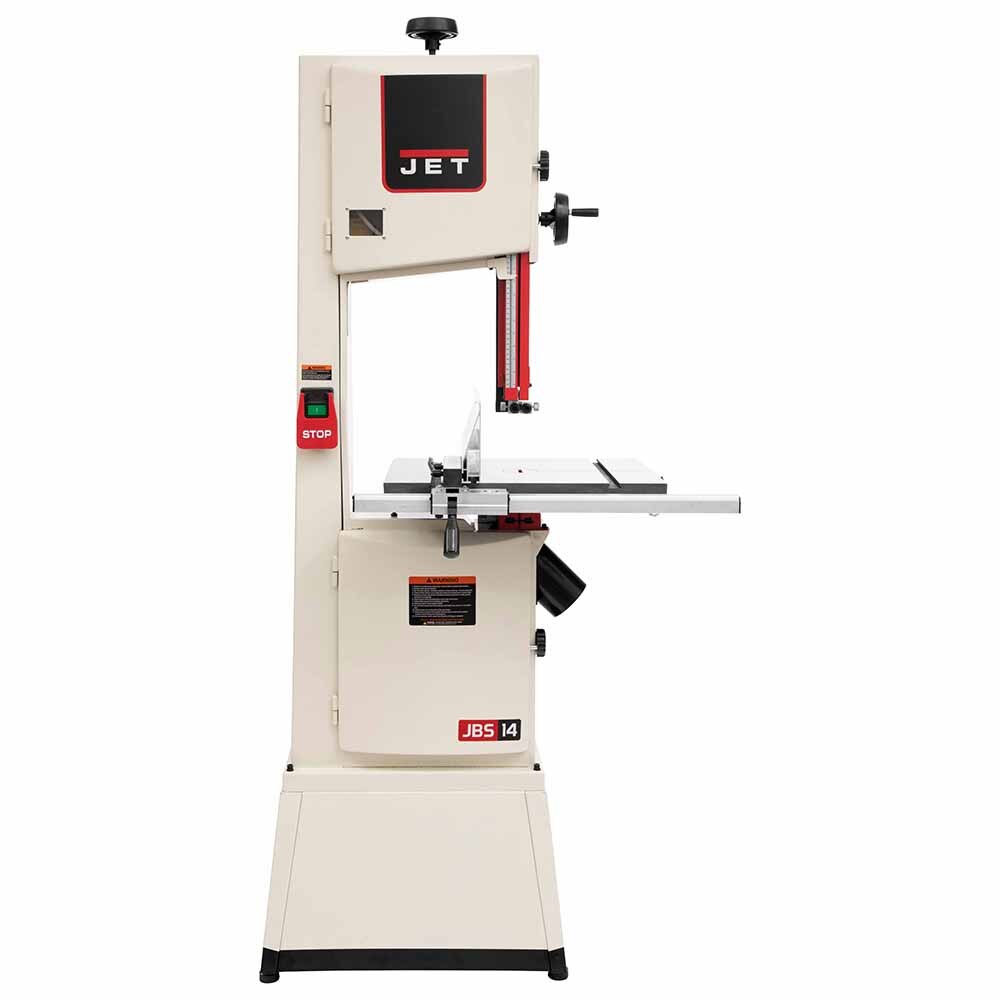

Introducing the Bigger, Heavier JET 14" SFX Bandsaw with its best in class resaw capacity, large throat depth and heavy-duty design. The JET 14" SFX Bandsaw features a deeper table with a massive 360 sq. in. cast iron work surface for greater work piece support. With over a 13" resaw capacity, this band saw is built for cutting large pieces of wood, slicing veneers, and cutting book matched panels. Impressive heavy-duty tubular steel welded construction, with a total weight of over 300 lbs! Jet understands the importance of dust collection and has included dual 4" dust ports for maximum dust collection efficiency.
Jet 714400K Includes
- (1) 14'' Steel frame bandsaw
- (1) Steel stand
- (1) Table with insert pre-installed
- (1) Dust chute
- (1) Resaw fence
- (4) Hex wrenches, 2.5/4/5/6mm (not shown)
- (1) Operating Instructions and Parts Manual
- (1) Hardware pack
Jet 714400K Features
- Deeper table with a massive 360 sq. in. of cast iron work surface for greater work piece support
- Over 13" Resaw capacity for cutting large pieces of wood, slicing veneers, and cutting book matched panels
- Heavy duty tubular steel welded construction with a total weight of over 300 lbs

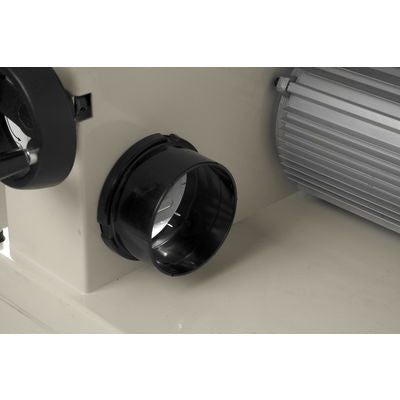

- Dual 4" dust ports for maximum dust collection efficiency

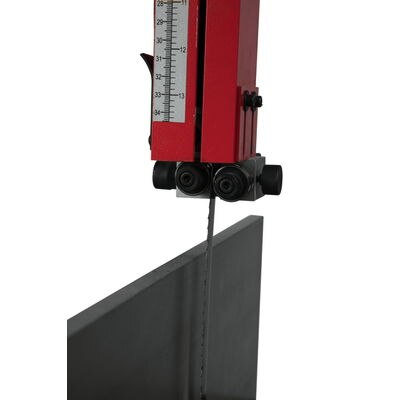

- Independently adjustable, upper and lower ball bearing blade guide

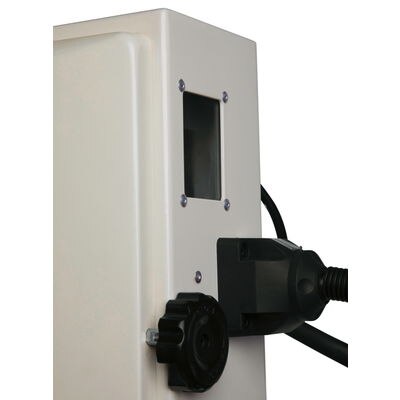

- Convenient 115V AC outlet location for optional accessories

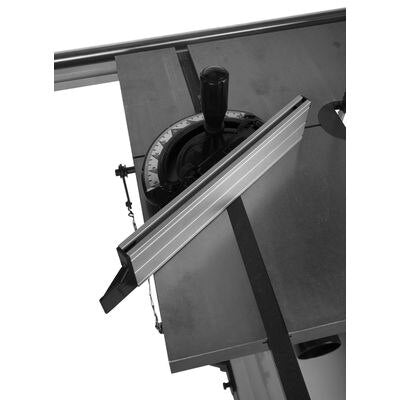

- Premium metal, fully featured miter gauge included
- Engineered die-cast and steel trunnion system, allows for single point adjustments when moving table

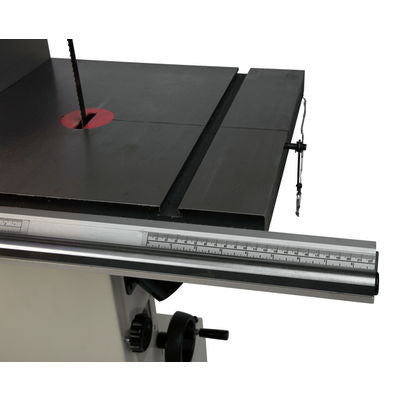

- Larger machined aluminum fence surface with easily visible measurements for the most accurate cutting
- Robust stamped steel doors with welded steel pin hinges for greater product durability
Jet 714400K Specifications
| Minimum Saw Blade Width (In.) | 1/8 |
| Miter Gauge Positive Stops | 0,45R,45L |
| Blade Speed (SFPM) | 3000 |
| Table T-Slot (In.) | 3/4 (x2) |
| Recommended Circuit Size (Amps.) | 20 |
| Stand Type | Closed |
| Motor Power (HP) | 1.75 |
| Motor Voltage (V) | 115/230 |
| Dust Collection Minimum CFM Required (CFM) | 350 |
| Motor Phase (PH) | 1 |
| Prewired Voltage (V) | 115 |
| Motor Amps | 15/7.5 |
| Dust Port Outside Diameter (In.) | 2 x 4 |
| Cutting Capacity Height (In.) | 12 |
| Table Tilt (Deg.) | 45 Right |
| Blade Width (In.) | 1/2 |
| Table Size (L x W) (In.) | 21 x 17 |
| Maximum Saw Blade Width (In.) | 1" |
| Cutting Capacity Width (In.) | 13.3 |
| Band Saw Size/Wheel Diameter (In.) | 14 |
