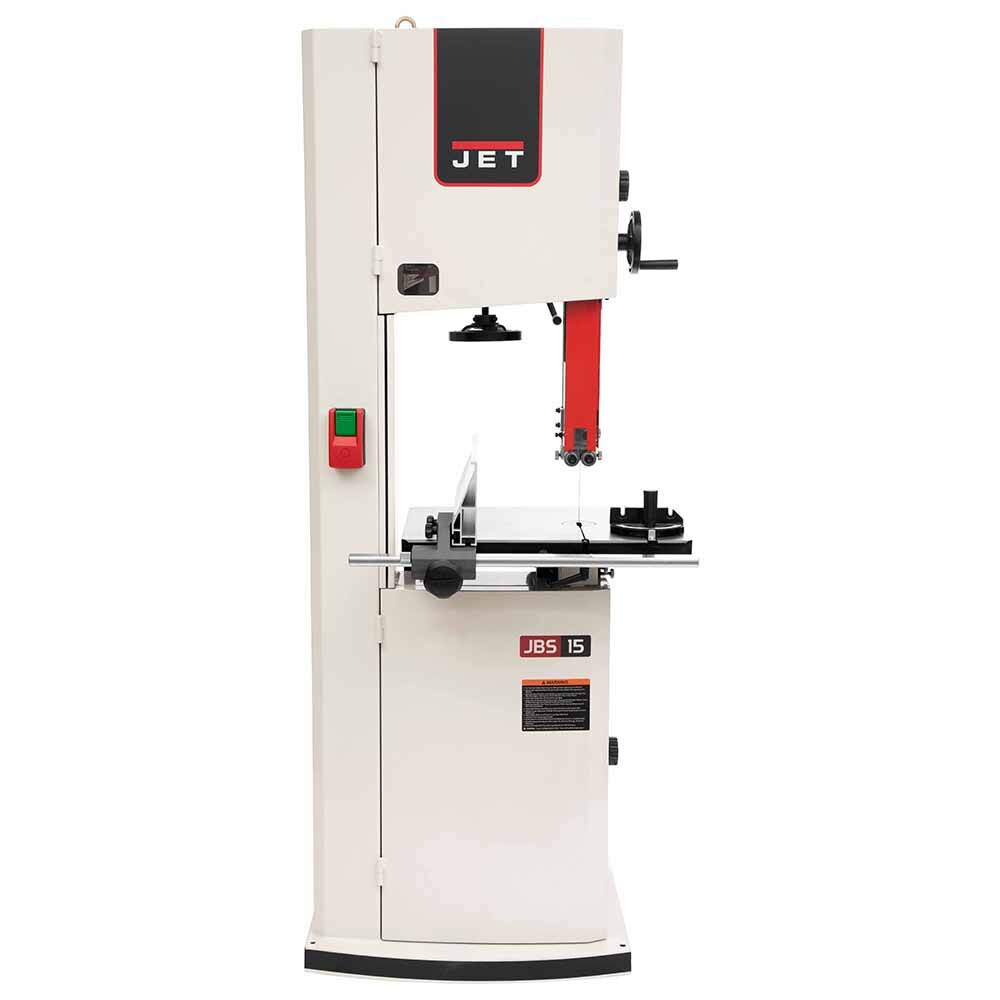

Jet JT9-714600 JWBS-15, 15" Bandsaw, 1-3/4HP, 115/230V
Description
Description
Jet 714600 Description
Designed to perform, the JET 15" bandsaw delivers more re-saw capacity, greater throat depth and the horsepower you need to tackle bigger boards, create smoother edges and master the intricate cuts. The heavy-duty cast-iron fence system is built to give you the sturdiness and support you need for every project and features a micro-adjust dial for exact placement. The table is slotted and the guide post has a stress-free magnetic door on the front for efficient blade changes. Large, independently adjustable guides are tool-less to save you time on set up. The JET 15" steel frame bandsaw is engineered to build great projects through superior performance.
Jet 714600 Features
- 14" Resaw capacity for cutting large pieces of wood, slicing veneers and cutting book matched panels
- 21-1/2" x 16" precision ground cast iron table for added stability and work support
- Fence system features a micro-adjustable, dual-position side plate
- Tool-less, independently adjustable, upper and lower ball bearing guides
- Rigid, four-sided guide post with rack and pinion adjustment for optimum blade support
- Easy-to-read blade tension scale can be viewed through upper door window
- Single knob adjustment simplifies the blade tracking process
- Blade tracking window provides clear view of blade during tracking
- Heavy duty tensioning with quick release features three settings: full tension, partial tension and full release
- Cast iron trunnion for maximum support and stability
Jet 714600 Specifications
| Table Height from Floor | 35" |
| Blade Length | 133" |
| Minimum Saw Blade Width | 1/8" |
| Blade Speed (SFPM) | 3100 |
| Recommended Circuit Size | 20 Amps |
| Motor Power | 1-3/4 HP |
| Motor Voltage | 115/230 V |
| Dust Collection Minimum (CFM) | 400 |
| Motor Phase (PH) | 1 |
| Prewired Voltage | 115 V |
| Motor Amps | 15/7.5 |
| Dust Port Outside Diameter | 4" (x2) |
| Cutting Capacity Height | 14" |
| Table Tilt (Deg.) | -5 to 45 |
| Blade Width | 1/2" x 6TPI |
| Table Size (L x W) | 21-1/2" x 16" x 2" |
| Max Saw Blade Width | 1" |
| Cutting Capacity Width | 14-1/8" |
| Band Saw Size/Wheel Diameter | 14-3/4" |
