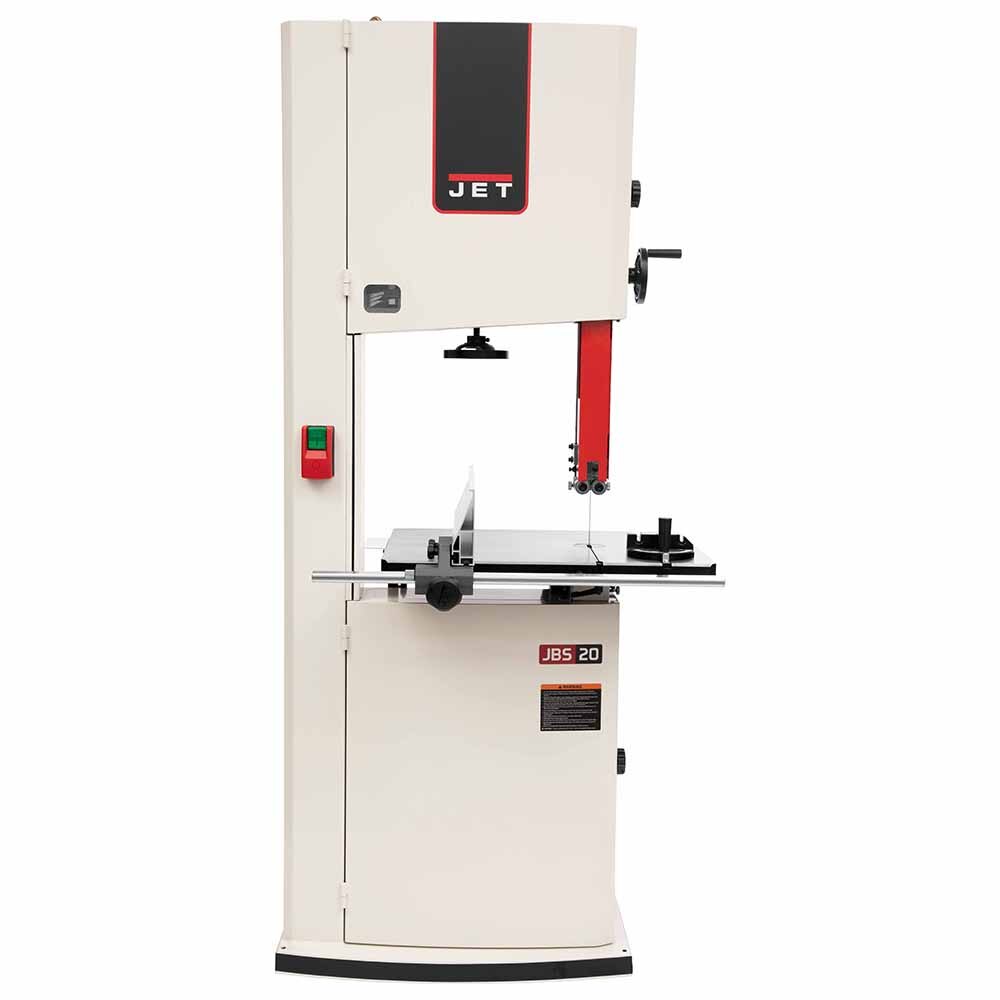

Jet JT9-714800 JWBS-20-3, 20" Bandsaw, 3HP, 230V
Description
Description
Jet 714800 Description
Designed to perform, the JET 20" bandsaw delivers more re-saw capacity, greater throat depth and the horsepower you need to tackle bigger boards, create smoother edges and master the intricate cuts. The heavy-duty cast-iron fence system is built to give you the sturdiness and support you need for every project and features a micro-adjust dial for exact placement. The table is slotted and the guide post has a stress-free magnetic door on the front for efficient blade changes. Large, independently adjustable guides are tool-less to save you time on set up. The JET 20" steel frame bandsaw is engineered to build great projects through superior performance.
Jet 714800 Features
- 16" Resaw capacity for cutting large pieces of wood, slicing veneers and cutting book matched panels
- 27-1/4" x 20" precision ground cast iron table for added stability and work support
- Fence system features a micro-adjustable, dual-position side plate
- Tool-less, independently adjustable, upper and lower ball bearing guides
- Rigid, four-sided guide post with rack and pinion adjustment for optimum blade support
- Easy-to-read blade tension scale can be viewed through upper door window
- Single knob adjustment simplifies the blade tracking process
- Blade tracking window provides clear view of blade during tracking
- Heavy duty tensioning with quick release features three settings: full tension, partial tension and full release
- Cast iron trunnion for maximum support and stability
Jet 714800 Specifications
| Table Height from Floor | 37" |
| Blade Length | 158" |
| Minimum Saw Blade Width | 1/8" |
| Blade Speed (SFPM) | 2530/4850 |
| Recommended Circuit Size | 30 Amps |
| Motor Power | 3 HP |
| Motor Voltage | 230 V only |
| Dust Collection Minimum (CFM) | 400 |
| Motor Phase (PH) | 1 |
| Motor Amps | 12 |
| Dust Port Outside Diameter | 4" (x2) |
| Cutting Capacity Height | 16" |
| Table Tilt (Deg.) | -5 to 45 |
| Blade Width | 1" x 3TPI |
| Table Size (L x W) | 27-1/4" x 20" x 1-5/8" |
| Max Saw Blade Width | 1-1/2" |
| Cutting Capacity Width | 20" |
| Band Saw Size/Wheel Diameter | 20-1/4" |
