Jet | SKU:
JT9-715100

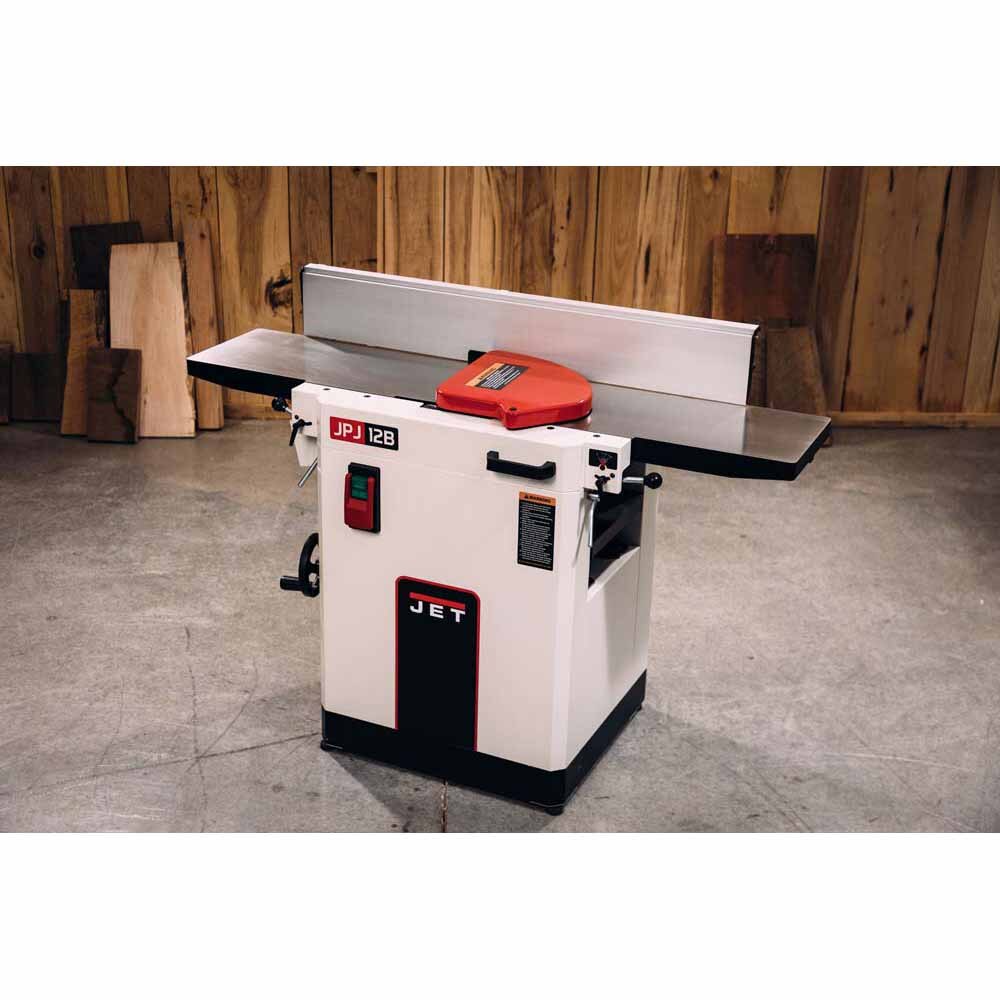

Jet JT9-715100 JPJ-12B 12" Planer/ Jointer 3HP SK 230V
$4,478.86
Unit price
/
Unavailable
Description
Description
12" Planer/Jointer Description
The JET JPJ-12B 12" Planer/Jointer offers both jointing and planing functions without compromise. This machine features a forty-two 4-sided carbide insert cutterhead for rapid cutting and a superior finish. The heavy-duty cast iron tables ensure accuracy and flatness, while the parallelogram design keeps the table close to the cutterhead for a better finish and precise depth adjustments.
Includes
- (1) 12" Planer/Jointer
Features
- Forty-two 4-sided carbide insert cutterhead for superior finish and rapid cutting

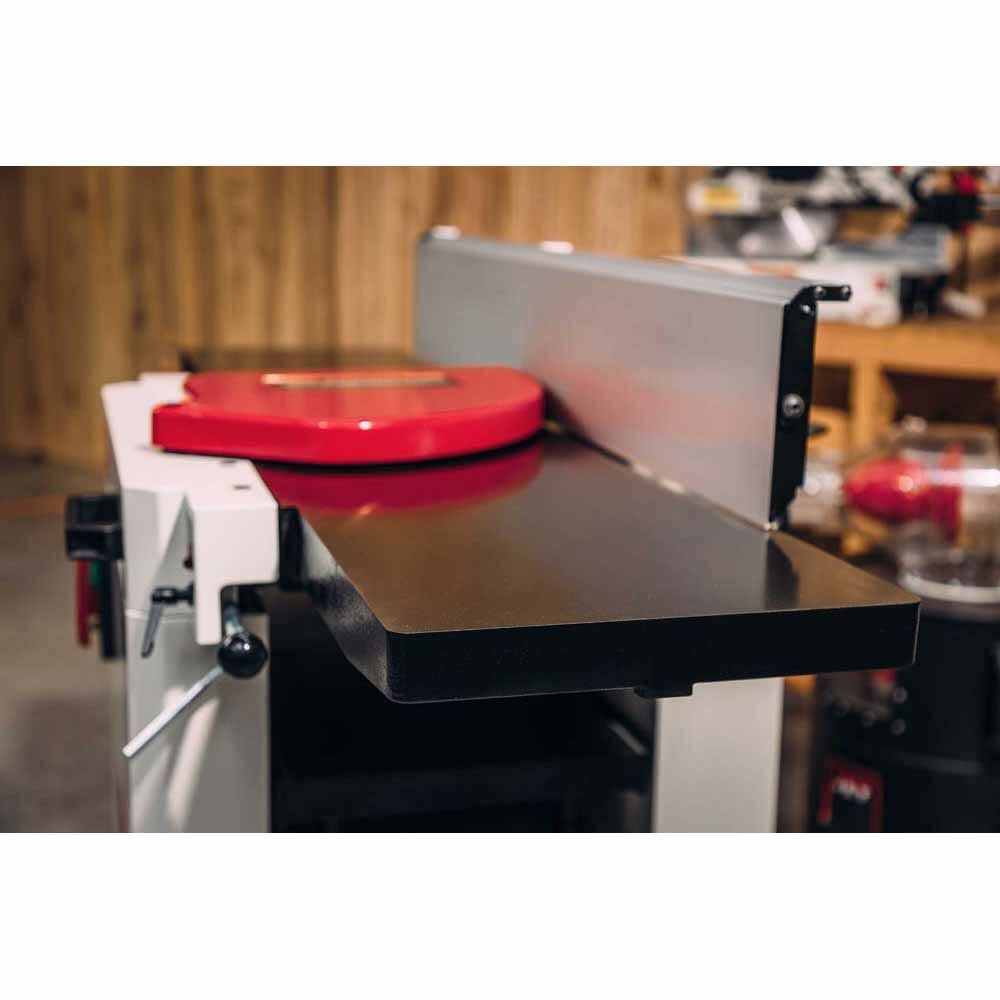

- Heavy-duty cast iron tables with a ground finish for precision
- Heavy-duty, one-piece steel closed stand for increased stability

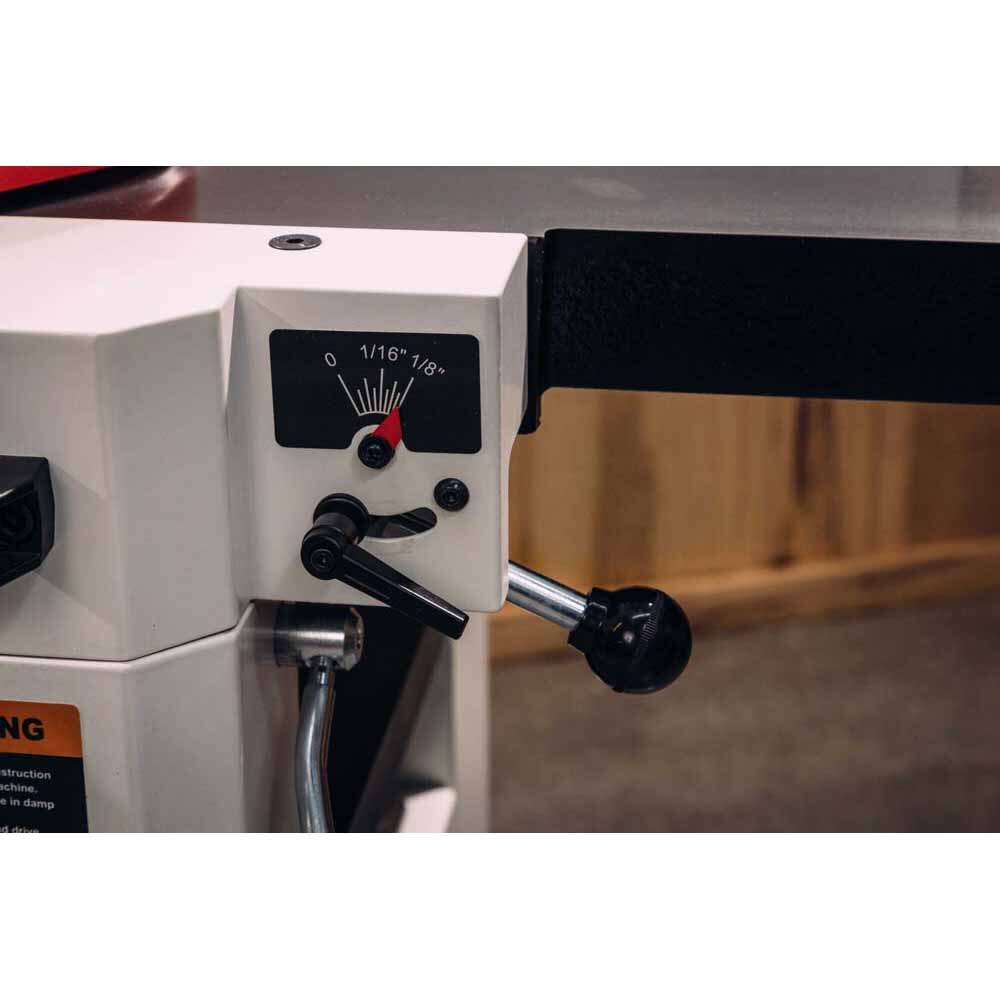

- Large handwheel for quick and precise adjustments of the planer table
- Parallelogram design for close table-to-cutterhead proximity and precise depth adjustments
- Three high-speed steel knife cutter head for superior finish
- Quick changeover between jointing and planing functions

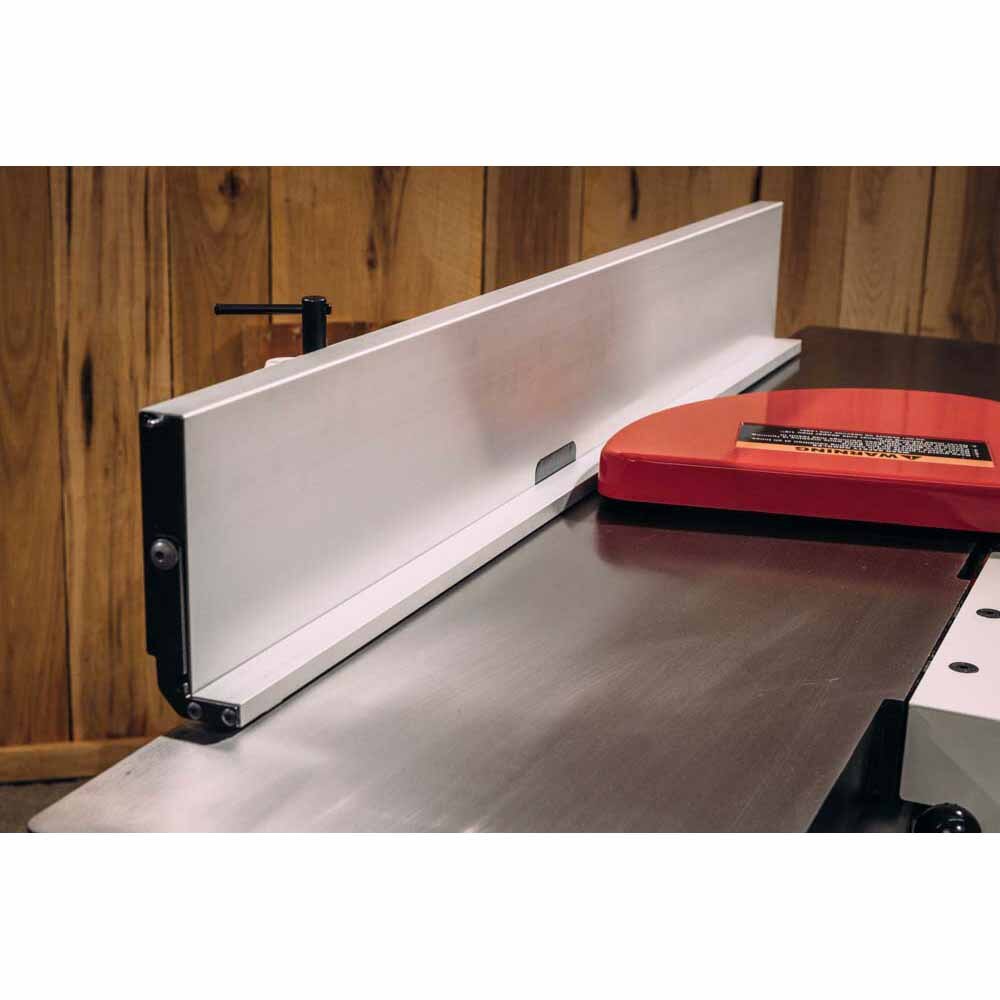

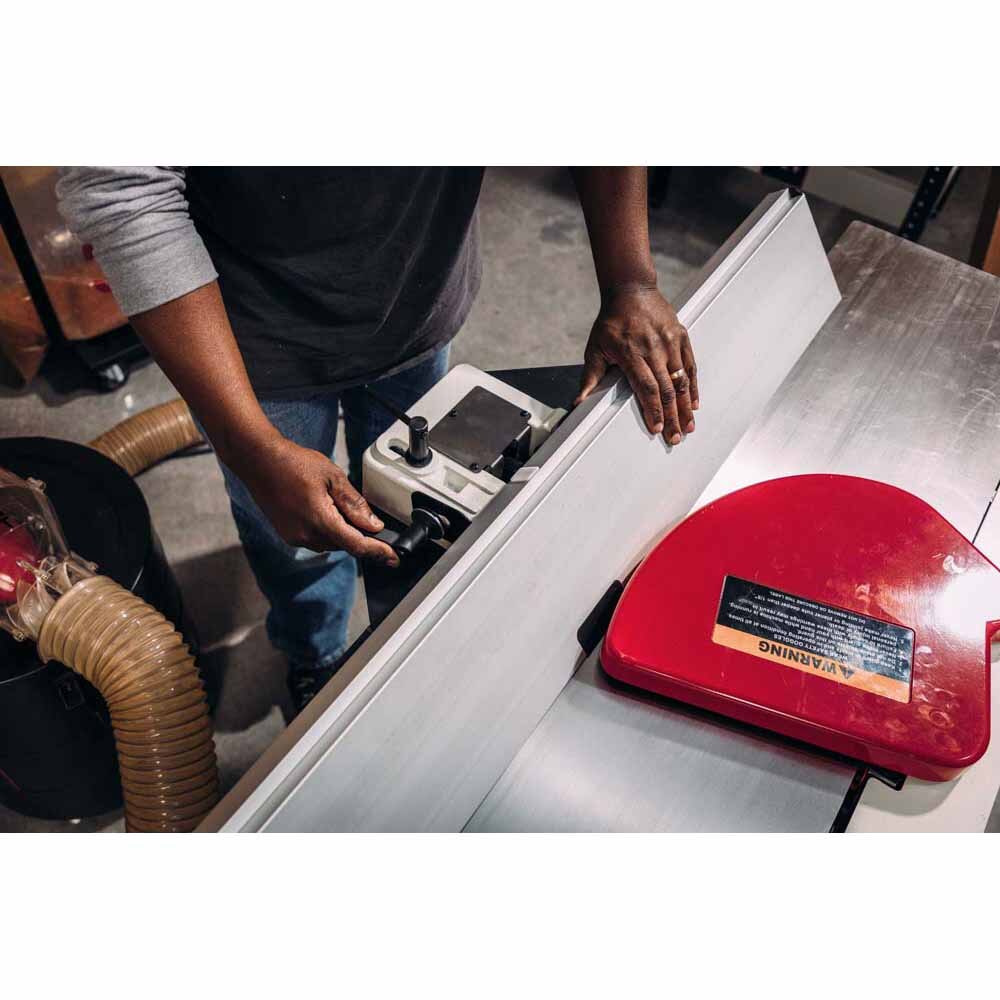

- Extra-large aluminum extruded fence with centered controls for quick adjustments
- Built-in dust chute capable of handling both planing and jointing operations
Specifications
| Cuts Per Minute | 15,900 |
| Cutterhead Diameter (In.) | 2-3/4 |
| Cutterhead Speed (RPM) | 5300 |
| Feed Rate - Planing (FPM) | 16 to 26 |
| Fence Positive Stops (Deg.) | 90 and 45 R |
| Fence Tilt (Deg.) | 90 to 45 R |
| Jointer Cutting Capacity (W x D) (In.) | 12 x 1/8 |
| Jointer Table Size (L x W) (In.) | 55 x 12-1/32 |
| Motor Power (HP) | 3 |
| Motor Voltage (V.) | 230 |
| Net Weight (Lbs.) | 453 |
