Jet JT9-715155 JPJ-12BHH 12" Planer/ Jointer 3HP Helical Head 230V
Description
Description

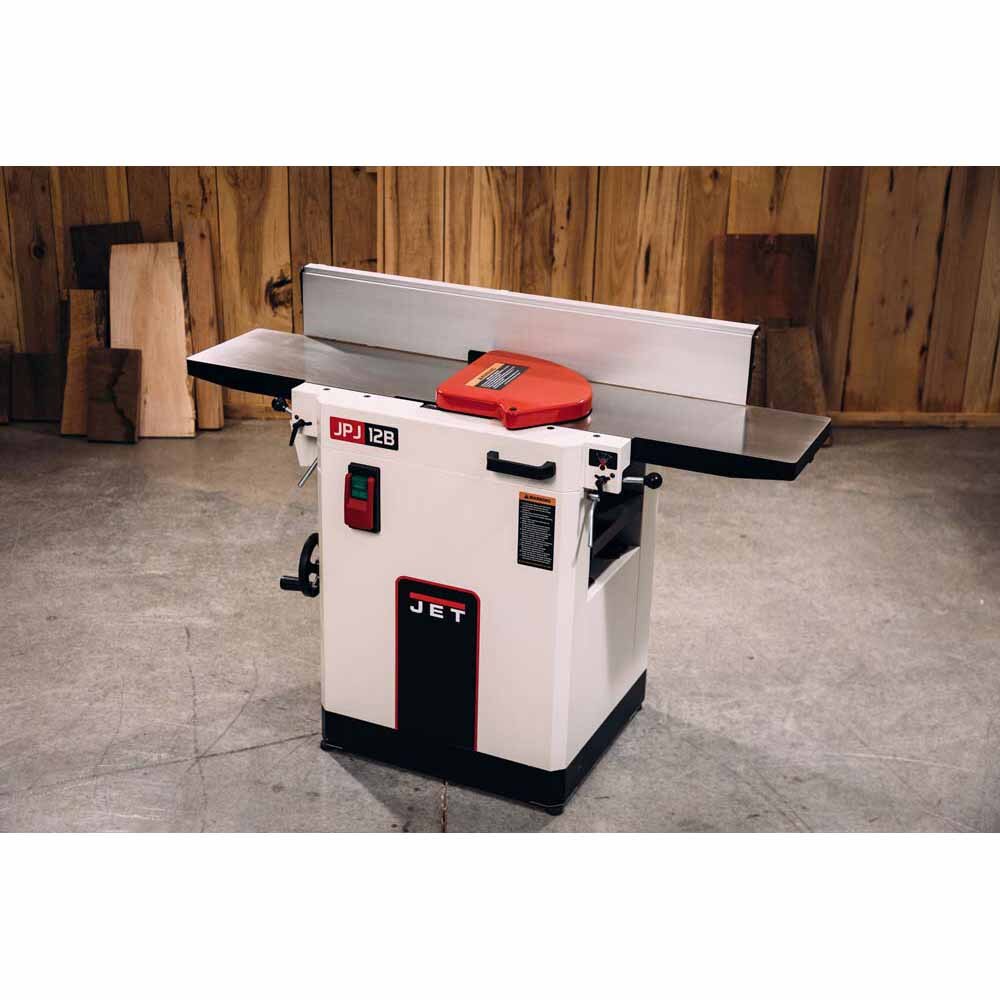

12" Planer/Jointer Description
You don’t have to choose between buying a jointer or a planer – with the JPJ-12B, you can have both. Leave it to JET to design a machine that allows quick changeover between jointing and planing functions. This versatile machine features an extra-large aluminum extruded fence with centered controls for quick adjustments, a built-in dust chute capable of handling both planing and jointing operations, and a powerful 3-horsepower motor that can handle the toughest lumber. A heavy-duty, fully welded steel base cabinet houses the motor and the planer table mechanism, while providing solid mounting for the associated controls and support for the jointer table and fence assemblies. Best of all, the fence can stay put when changing over functions.
Includes
- (1) 12" Planer/Jointer
Features
- Extremely quick changeover between jointing and planing functions. Fence does not need to be removed

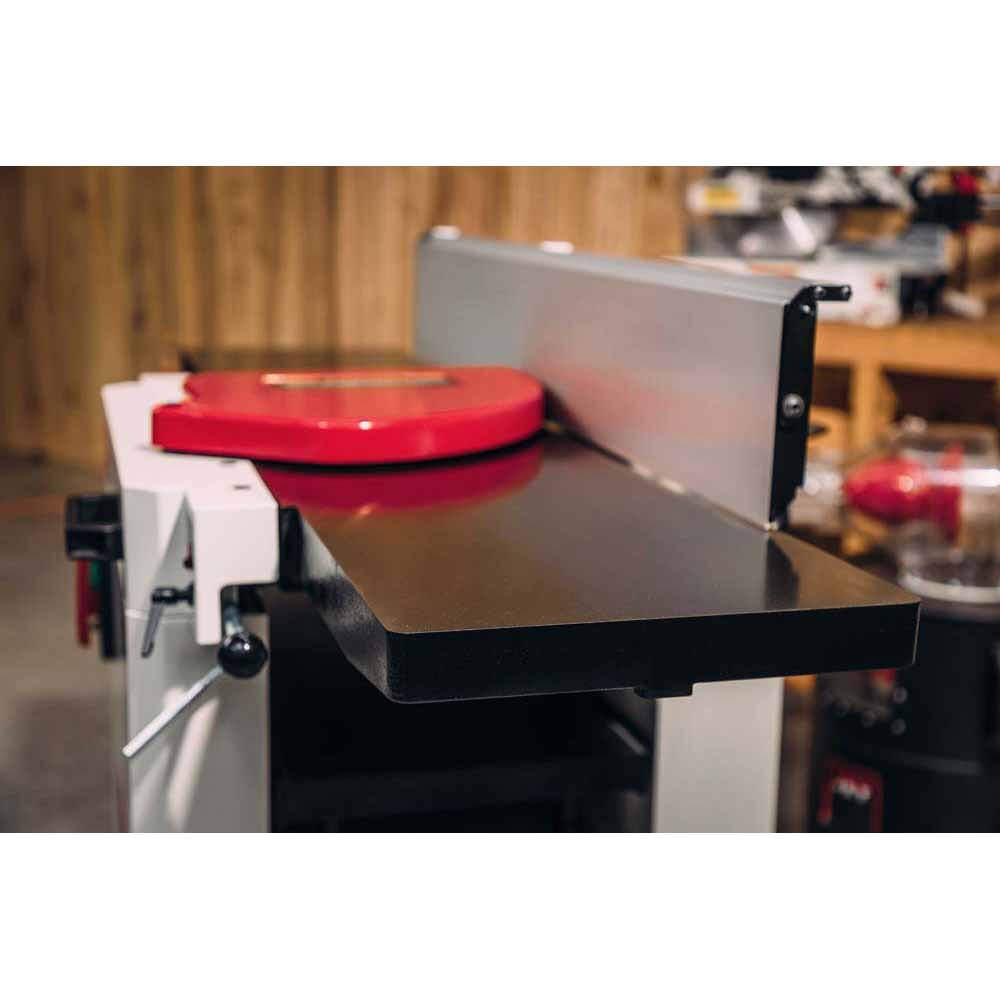

- Heavy-duty cast iron tables with a ground finish to ensure accuracy and flatness
- Heavy-duty, one-piece steel closed stand includes mounting tabs for increased stability

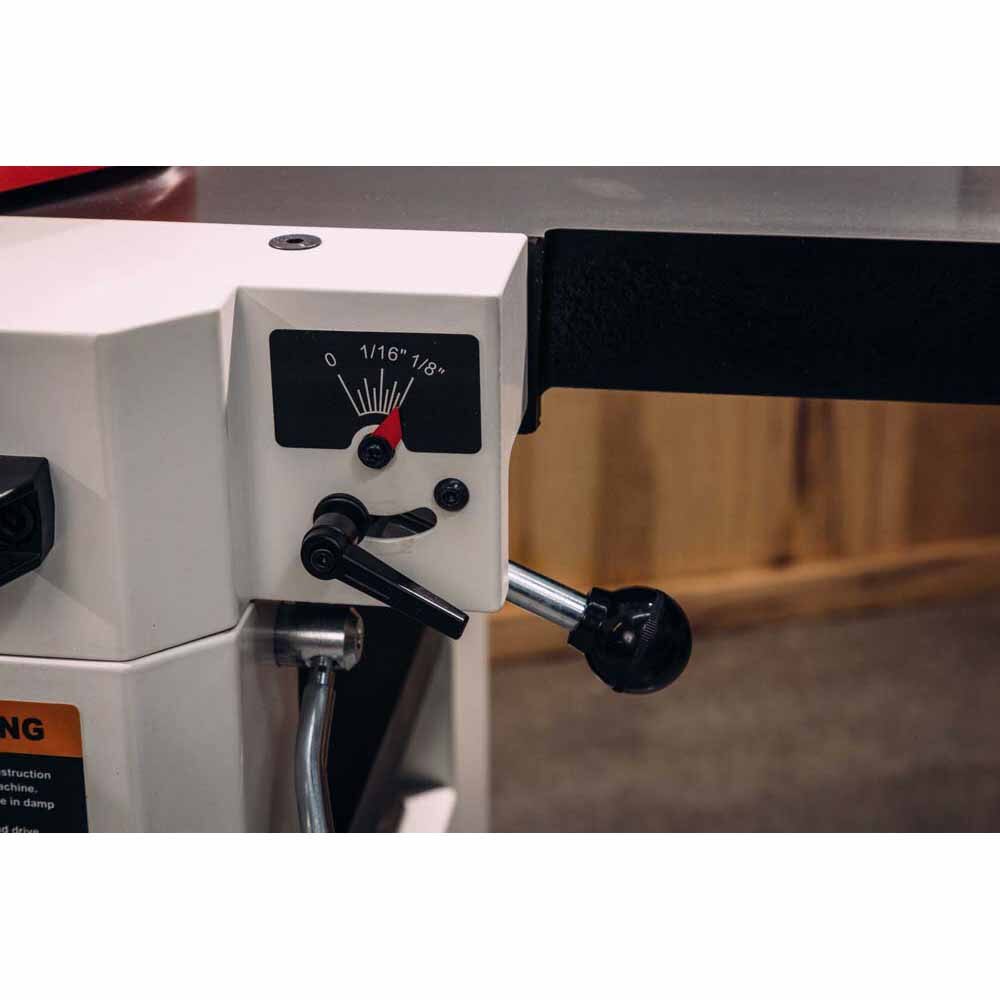

- Large handwheel for quick and precise adjustments of planer table
- Parallelogram design keeps the table close to the cutterhead for improved finish and allows for precise depth of cut adjustments

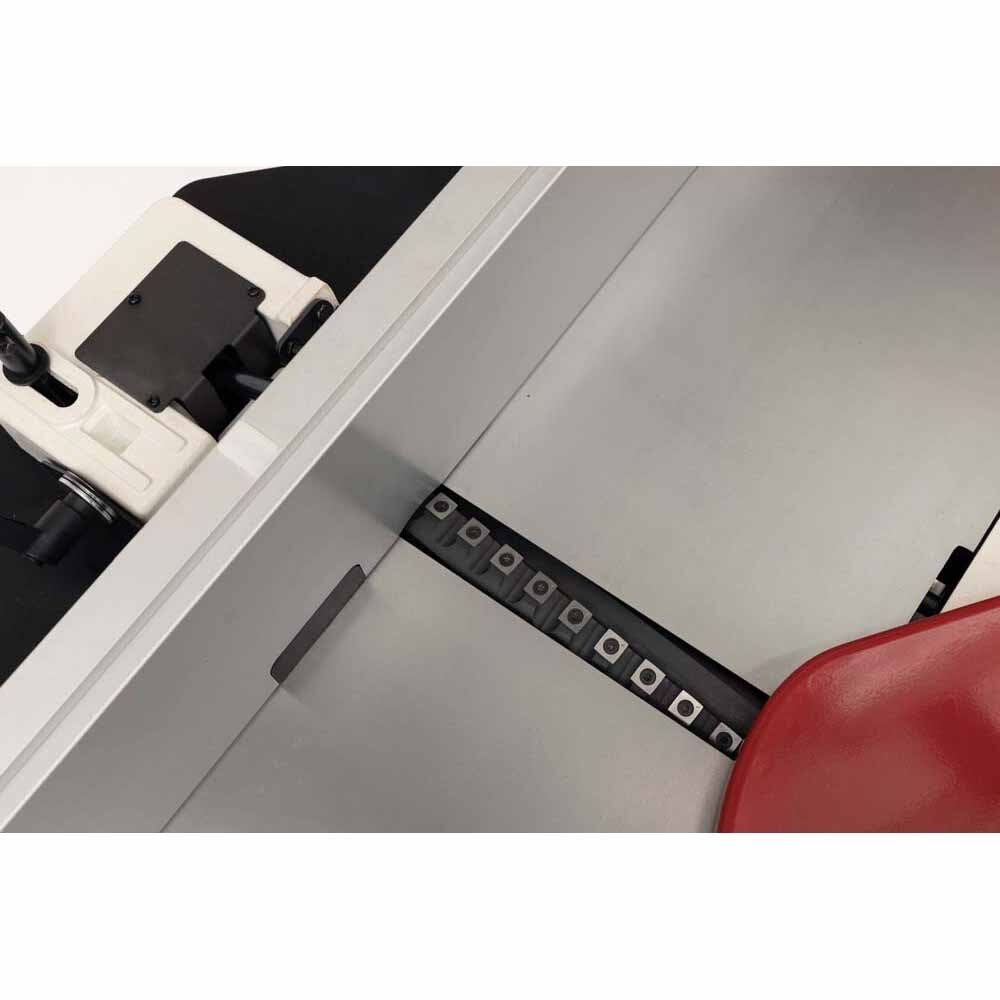

- Forty Two 4-sided Carbide Insert cutterhead provides rapid cutting and a superior finish
Specifications
| Cutterhead Diameter (In.) | 2-3/4 |
| Cutterhead Speed (RPM) | 5300 |
| Dust Collection Minimum CFM Required (CFM) | 550 |
| Dust Port Outside Diameter (In.) | 4 |
| Feed Rate - Planing (FPM) | 2 speed 16 to 26 FPM |
| Fence Positive Stops (Deg.) | 90 and 45 R |
| Fence Size (L x H) (In.) | 43-1/4 x 5-7/8 |
| Motor Power (HP) | 3 |
| Motor Voltage (V) | 230 |
