Jet | SKU:
JT9-716200

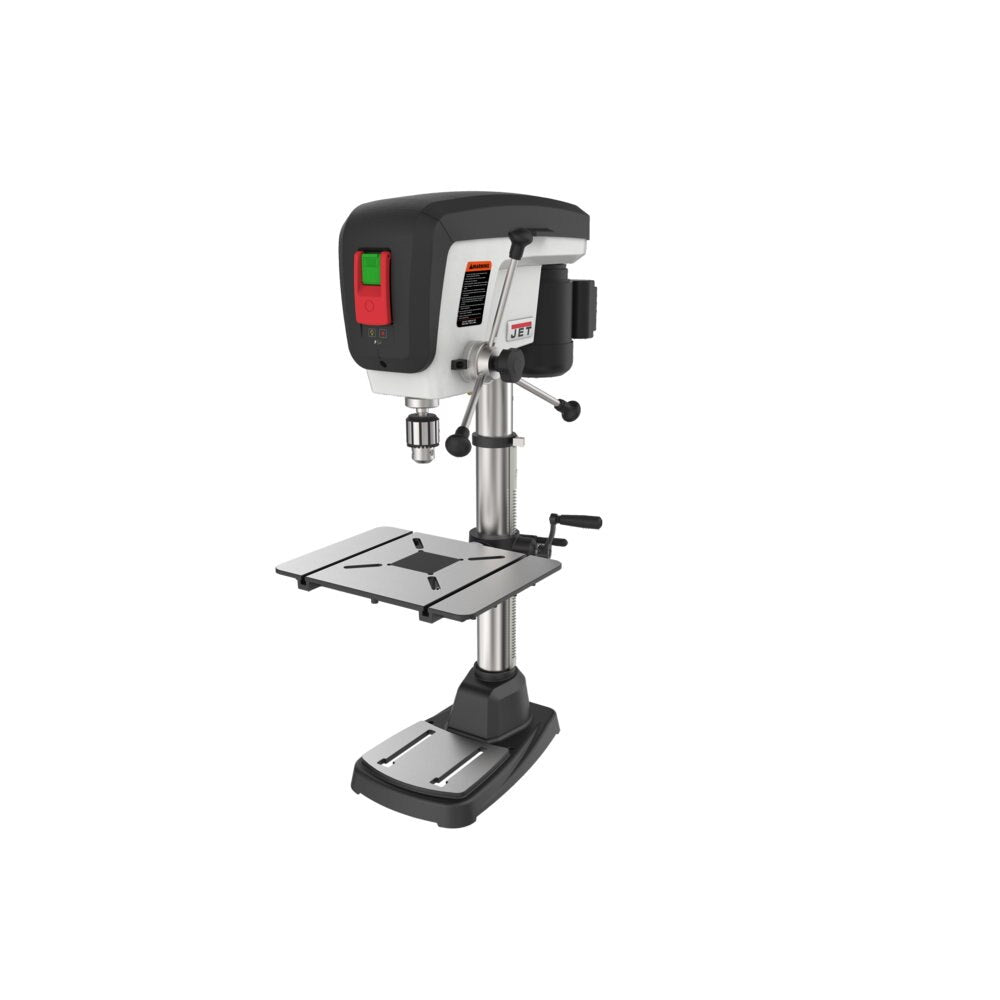

Jet JT9-716200 15" Benchtop Drill Press
$165.00 off
Free Shipping
$934.99
$1,099.99
Unit price
/
Unavailable
Description
Description
Jet 716200 Description
The new JET JDP-15B, 15" Benchtop Drill Press. From a full 3-1/8" of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press also features a one-handed belt-tensioning system and a large 12-1/2" x 17" work table.
Jet 716200 Features
- Spindle travels a full 3-1/8” with one revolution of the handle
- Large 12-1/2" x 17" precision ground work table features twin T-slot grooves and 4 table slots to accommodate any project
- One-handed belt tensioning allows for rapid speed changes
- Power switch features a safety key and large, paddle-style off button
- Integrated depth stop makes repetitive drilling quick and easy
- Xacta-X laser system easily identifies the drill center
- Long-lasting, built-in LED work light reduces shadows
- Table edge lip designed to make clamping easy
- Replaceable MDF table insert
- Large cast iron base provides stability
Jet 716200 Specifications
| Motor Power | 3/4 HP |
| Number of Spindle Speeds | 16 |
| Motor Voltage | 115 V |
| Spindle Speed Range | 210 - 3500 RPM |
| Max Spindle Distance to Table | 18-5/16" |
| Table Tilt (Deg.) | -45 to 45 |
| Column Diameter | 2-3/4" |
| Swing | 15" |
| Chuck Size | 5/8" |
| Base Size | 18" x 11-3/8" |
| Motor Amps | 9 |
| Table Size (L x W) | 12-1/2" x 17" |
| Spindle Travel | 3-1/8" |
| Motor Phase (PH) | 1 |
| Prewired Voltage | 115 V |
| Spindle Taper | MT2/JT3 |
| Spindle Distance to Base | 26-3/4" |
| Assembled Machine Dimensions (L x W x H) | 27" x 17" x 42-1/2" |
