Jet | SKU: JT9-716250 | Barcode: 731325424270

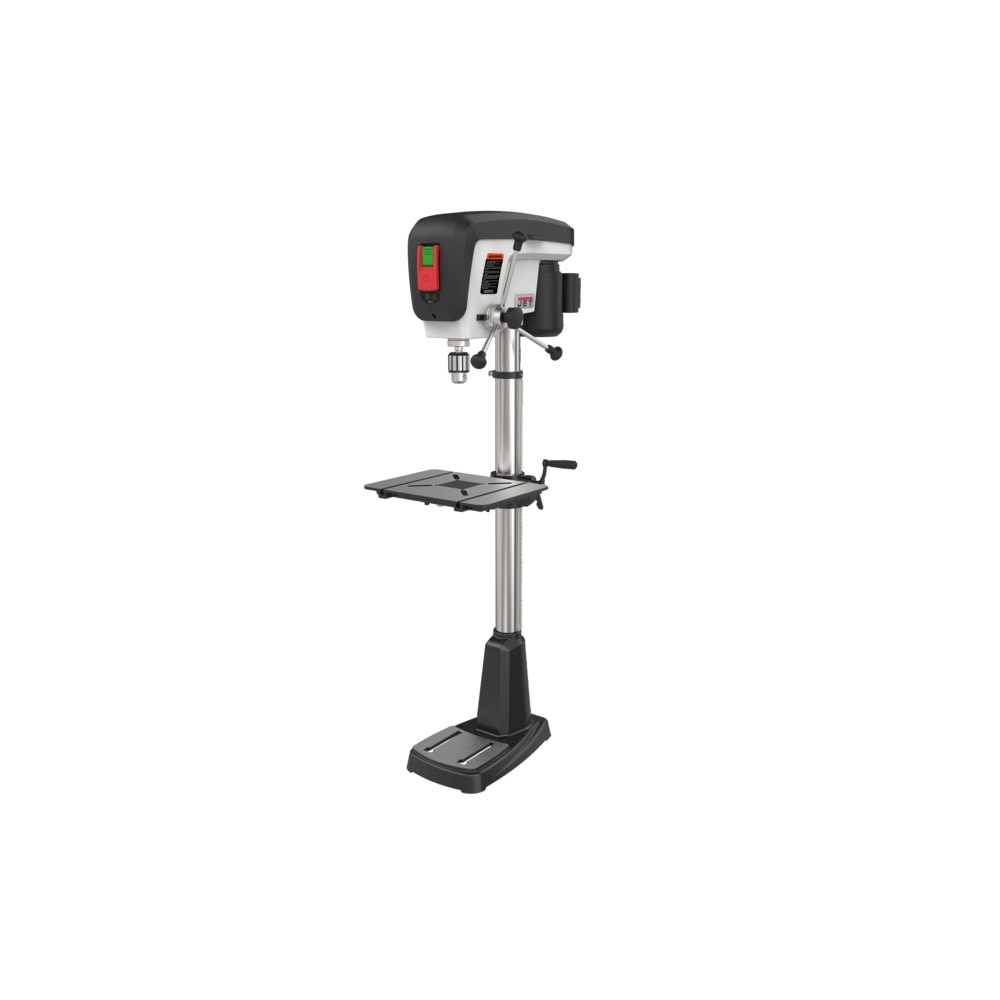

Jet JT9-716250 15" Floorstanding Drill Press

Free Shipping

$1,199.99 ~~$1,474.27~~

Description

Jet 716250 Description

The new JET JDP-15F, 15" Floorstanding Drill Press. From a full 3-1/8" of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press also features a one-handed belt-tensioning system and a large 12-1/2" x 17" work table.

Jet 716250 Features

Spindle travels a full 3-1/8” with one revolution of the handle
Large 12-1/2" x 17" precision ground work table features twin T-slot grooves and 4 table slots to accommodate any project
One-handed belt tensioning allows for rapid speed changes
Power switch features a safety key and large, paddle-style off button
Integrated depth stop makes repetitive drilling quick and easy
Xacta-X laser system easily identifies the drill center
Long-lasting, built-in LED work light reduces shadows
Table edge lip designed to make clamping easy
Replaceable MDF table insert
Large cast iron base provides stability

Jet 716250 Specifications

Motor Power	3/4 HP
Number of Spindle Speeds	16
Motor Voltage	115 V
Spindle Speed Range	210 - 3500 RPM
Max Spindle Distance to Table	30-1/2"
Table Tilt (Deg.)	-45 to 45
Column Diameter	2-3/4"
Swing	15"
Chuck Size	5/8"
Base Size	18-7/8" x 11-3/8"
Motor Amps	9
Table Size (L x W)	12-1/2" x 17"
Spindle Travel	3-1/8"
Motor Phase (PH)	1
Prewired Voltage	115 V
Spindle Taper	MT2/JT3
Spindle Distance to Base	46-1/2"
Assembled Machine Dimensions (L x W x H)	27" x 17" x 63-1/4"
