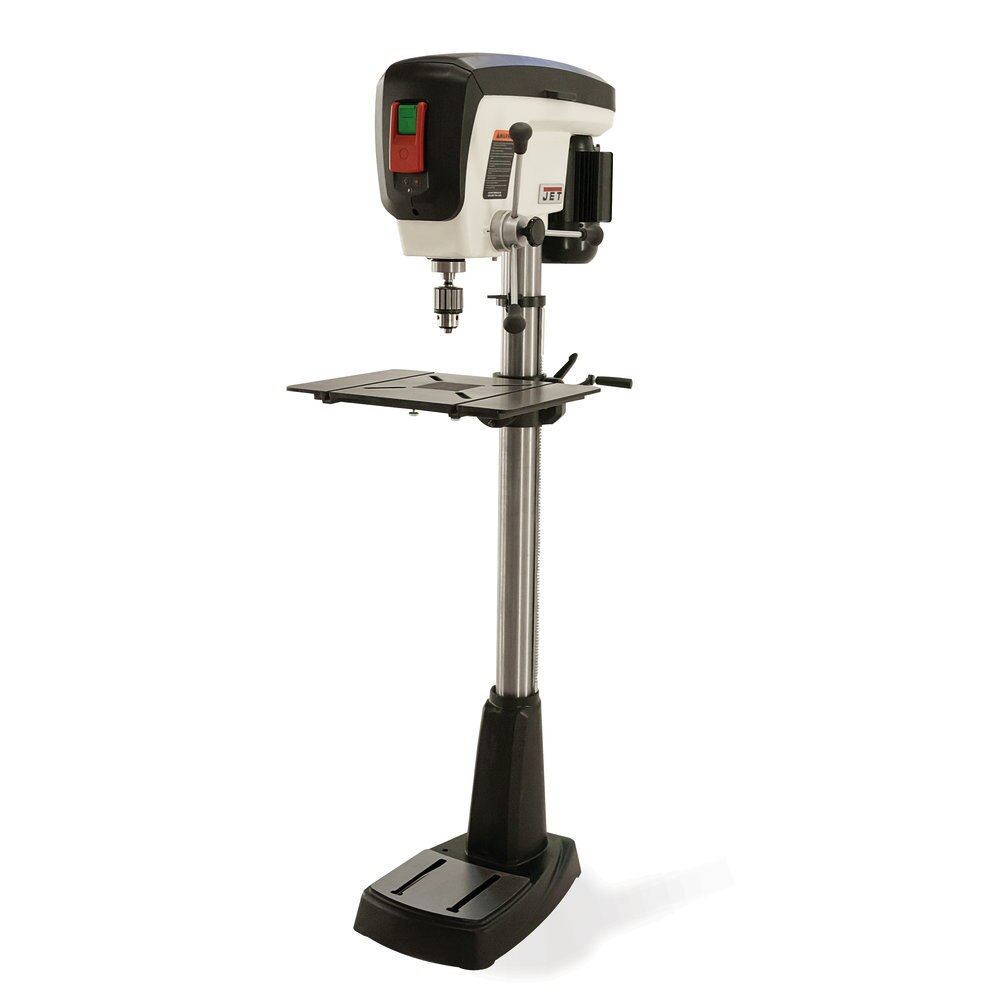

Jet JT9-716300 17" Drill Press
Black Friday Sale
Free Shipping
$1,104.99
$1,299.99
Unit price
/
Unavailable
Description
Description
Jet 716300 Description
Introducing the new JET JDP-17, 17” Drill Press. From a full 5” of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press also features a long-lasting, built-in LED work light to provide direct lighting while reducing shadows. A large 14" x 19" work table provides plenty of support with an edge designed for easy clamping.
Jet 716300 Features
- Spindle travels a full 5” with one revolution of the handle
- Large 14" x 19" precision ground work table features twin T-slot grooves and 4 table slots to accommodate any project
- One-handed belt tensioning allows for rapid speed changes
- Power switch features a safety key and large, paddle-style off button
- Integrated depth stop makes repetitive drilling quick and easy
- Xacta-X laser system easily identifies the drill center
- Long-lasting, built-in LED work light reduces shadows
- Table edge lip designed to make clamping easy
- Replaceable MDF table insert
- Large cast iron base provides stability
Jet 716300 Specifications
| Motor Power (HP) | 3/4 |
| Number of Spindle Speeds | 16 |
| Chuck Distance to Table (In.) | 25-7/8 |
| Chuck Distance to Base (In.) | 42-7/8 |
| Motor Voltage (V) | 115 |
| Spindle Speed Range (RPM) | 210 - 3500 |
| Spindle Distance to Table (Max.) (In.) | 30 |
| Style (Type) | SV_1375591258781 |
| Table Tilt (Deg.) | 90 Left and Right |
| Column Diameter (In.) | 3-5/32 |
| Swing (In.) | 16-7/8 |
| Chuck Size (In.) | 5/8 |
| Base Size (In.) | 20 x 12-5/8 |
| Motor Amps | 6.8 |
| Table Size (L x W) (In.) | 14 x 19 |
| Spindle Travel (In.) | 5 |
| Motor Phase (PH) | 1 |
| Recommended Circuit Size (Amps.) | 15 |
