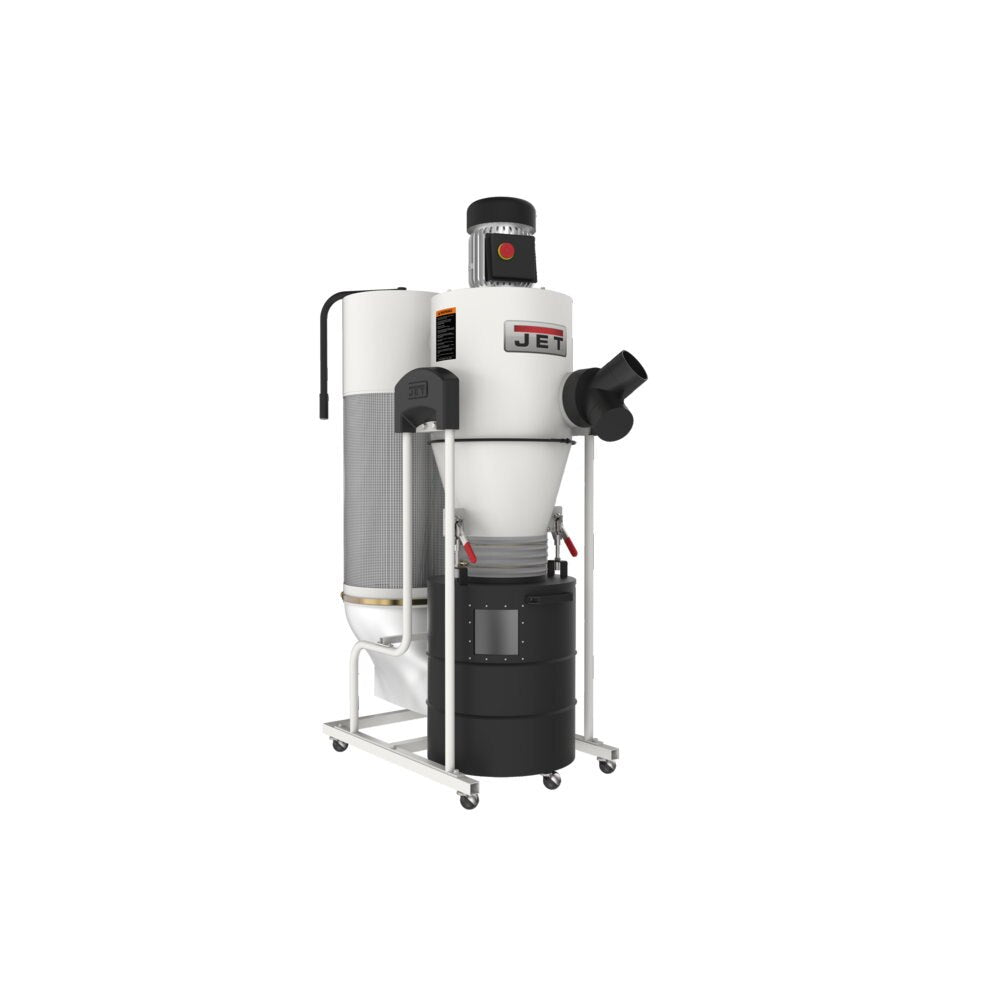

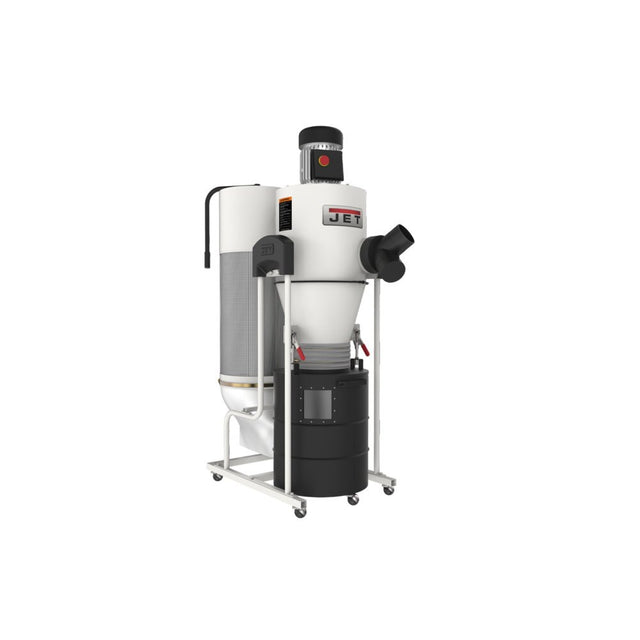

Jet 717515 Description
Are you ready to get more from your dust collector? The Cyclone Dust Collector Collection from JET delivers the efficiency you’ve been waiting for. With a direct mount filter, a radio frequency remote control and a large collection bin these dust collectors take your shop’s capabilities to a new level. Upgrade to a JET Cyclone Dust Collector and experience The Power of Efficiency.
Jet 717515 Features
- The cyclone's two stage separation provides more working CFM than comparable horsepower single stage units
- Heavy debris is pulled down to collection drum before debris stream reaches the filter, providing constant suction
- Direct mounted filter eliminates inefficiencies from ridged flex hosing and bends
- Fine dust particles are filtered through pleated material that captures even the smallest particles down to 1 micron and below
- Heavy debris is captured in 20 gallon drum with quick release levers and independent casters for quick emptying
- Included radio frequency remote control works from up to 50 feet away
- Double paddle manual cleaning system quickly cleans the pleated filter
- Swivel casters make it easy to move the unit around the shop
Jet 717515 Specifications
| Prewired Voltage | 115 V |
| Motor Power | 1.5 HP |
| 1-Hose Connection Diameter | 6" |
| Filter Efficiency (Micron) | 1 |
| Impeller Diameter | 13" |
| Motor Voltage | 115 V |
| Air Flow @ 6" | 1259 CFM |
| Velocity @ 6" | 6396 FPM |
| Motor Phase (PH) | 1 |
| Impeller Material | Steel |
| Number of Air Inlets | 1 at 6", 2 at 4" |
| Static Pressure (Wc.) | 2.7 |
| Sound Rating | 75 Db |
| 2-Hoses Connection Diameter | 4" |
| Motor Amps | 14 |
| Collection Drum Capacity | 20 gal |
| Max. Static Pressure (Wc.) | 8.3 |
| Drum Collection Bag (Dia. x L/In.) | 26 x 27-9/16 |
| Canister Collection Bag (Dia. x L/In.) | 23-5/8 x 19-11/16 |
| Canister Filter Diameter | 14-9/16" |
| Canister Filter Length | 15-3/4" |
| Assembled Dimensions (L x W x H) | 22" x 47" x 67-9/16" |
| Footprint (L x W) | 47" x 22" |
Toolup Part # :
366284
