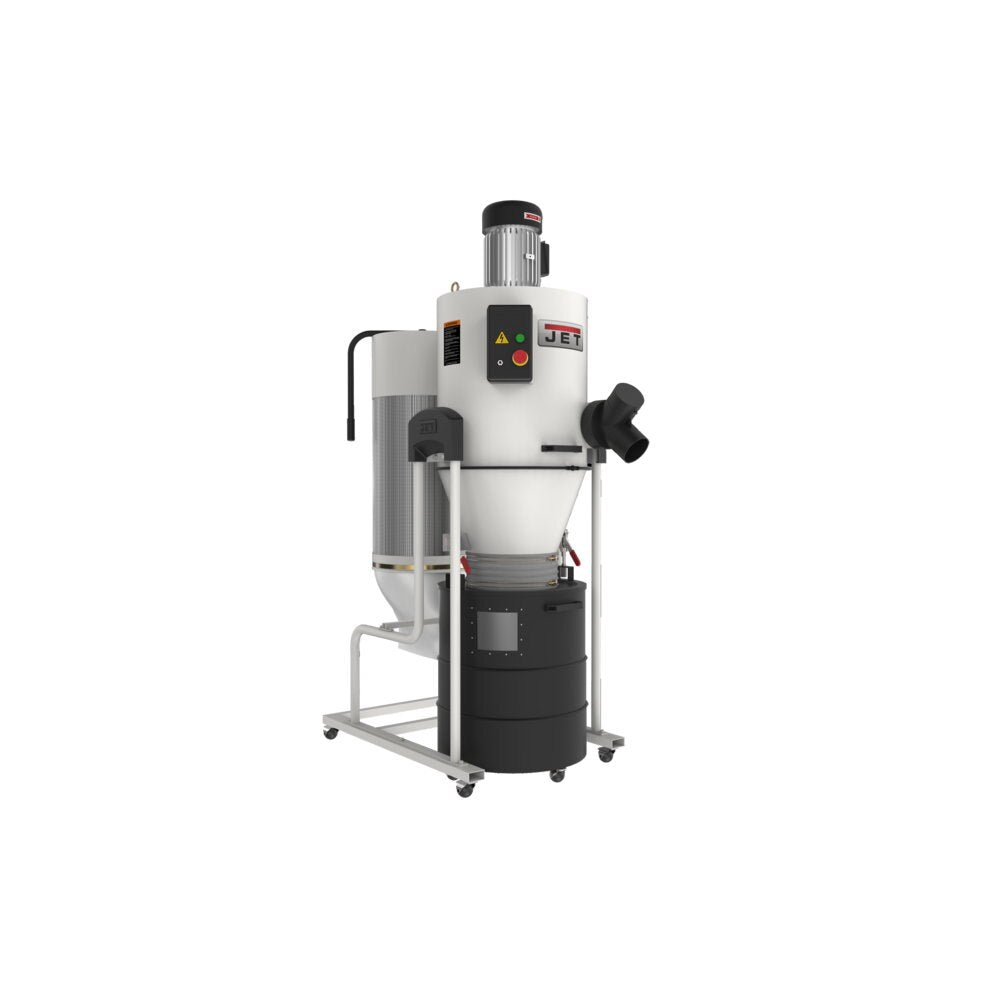

Jet JT9-717520 JCDC-2 Cyclone Dust Collector, 2HP, 230V
Description
Description
Jet 717520 Description
Are you ready to get more from your dust collector? The Cyclone Dust Collector Collection from JET delivers the efficiency you’ve been waiting for. With a direct mount filter, a radio frequency remote control and a large collection bin these dust collectors take your shop’s capabilities to a new level. Upgrade to a JET Cyclone Dust Collector and experience The Power of Efficiency.
Jet 717520 Features
- The cyclone's two stage separation provides more working CFM than comparable horsepower single stage units
- Heavy debris is pulled down to collection drum before debris stream reaches the filter, providing constant suction
- Direct mounted filter eliminates inefficiencies from ridged flex hosing and bends
- Fine dust particles are filtered through pleated material that captures even the smallest particles down to 1 micron and below
- Heavy debris is captured in a 30 gallon drum with quick release levers and independent casters for quick emptying
- Included radio frequency remote control works from up to 50 feet away
- Remote timer settings allows system to run for 2, 4, 6, or 8 hours before automatic shutoff
- Double paddle manual cleaning system quickly cleans the pleated filter
- Swivel casters make it easy to move the unit around the shop
Jet 717520 Specifications
Prewired Voltage | 230 V |
Motor Power | 2 HP |
1-Hose Connection Diameter | 6" |
Filter Efficiency (Micron) | 1 |
Impeller Diameter | 14-1/2" |
Motor Voltage | 230 V |
Air Flow @ 6" | 1538 CFM |
Velocity @ 6" | 7813 FPM |
Motor Phase (PH) | 1 |
Impeller Material | Steel |
Number of Air Inlets | 1 at 6", 2 at 4" |
Static Pressure (Wc.) | 3.8 |
Sound Rating | 76 Db |
2-Hoses Connection Diameter | 4" |
Motor Amps | 9 |
Collection Drum Capacity | 30 gal |
Max. Static Pressure (Wc.) | 10.1 |
Drum Collection Bag (Dia. x L/In.) | 30-11/16 x 32-11/16 |
Canister Collection Bag (Dia. x L/In.) | 23-5/8 x 19-11/16 |
Canister Filter Diameter | 14-9/16" |
Canister Filter Length | 22-5/8" |
Assembled Dimensions (L x W x H) | 25-7/8" x 50-5/8" x 72-1/4" |
Footprint (L x W) | 50-5/8" x 25-7/8" |
