Jet  |  SKU: JT9-719600  |  Barcode: 731325455519

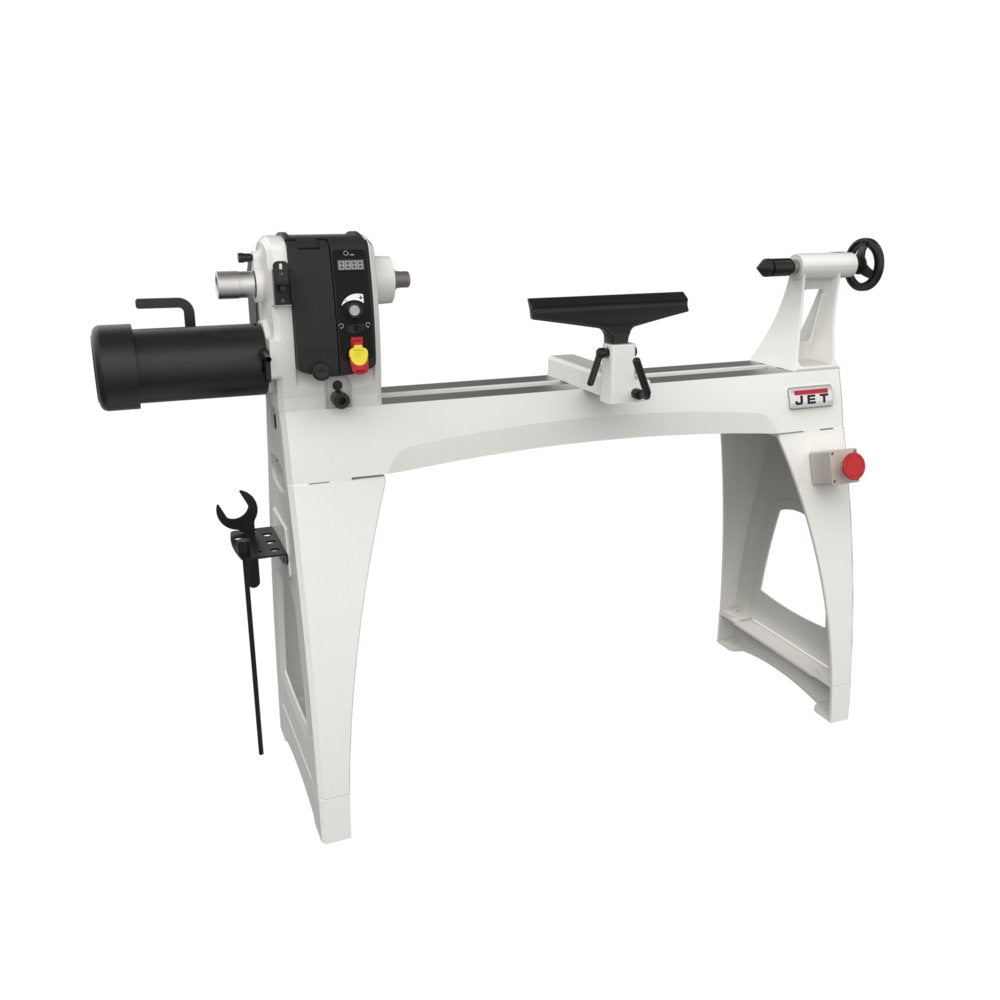

Jet JT9-719600 JWL-1840EVS 18" x 40" Wood Lathe

Free Shipping
$3,399.99 $4,177.13
 More payment options

Description

Jet 719600 Description

Introducing the 1840EVS woodworking lathe from JET. Designed to be as versatile as you are in the shop this lathe features a headstock that slides the full length of the bed. The included four-inch cast iron risers allow you to easily choose the working height that maximizes your comfort.

Jet 719600 Features

  • Extended spindle nose houses dual headstock spindle bearings
  • Four inch cast iron risers allow user to adjust height of lathe for maximum comfort
  • Improved tailstock quill locking mechanism incorporates an anti-rotation key
  • Tailstock features Acme threads for smooth and durable movement
  • Banjo uses non-marring, positive locking wedge system to securely hold tool post
  • Tool post locking mechanism designed for year of consistent strength
  • Spindle lock latch frees up both hands
  • Electronic infinitely variable speed from 40 – 3200 RPM
  • 36 integrated indexing positions

Jet 719600 Specifications

Motor Amps 6.1
Distance Between Centers 40"
Quill Travel 4-1/4"
Prewired Voltage 230 V
Tailstock Bore 3/8"
Swing Over Bed 18-1/2"
Number of Indexing Positions 36
Spindle Bore 5/8"
Motor Power 2 HP
Quill Taper MT2
Spindle Thread 1-1/4" x 8 TPI
Motor Phase (PH) 3
Spindle Speeds High 120-3200/Low 40-1200
Centerline of Spindle to Floor 39-1/4"; 43-1/4" w/risers
Spindle Taper MT2
Headstock Movement Slide & Rotate
Motor Voltage 230 V
Speed Range 40-3200
Swing Over Tool Rest Base 14-1/4"
Recommended Circuit Size 20 Amps
Bed Construction Cast Iron
Wiring Remarks 230V, 1ph input only
Bed Gap 1-3/4"
