Jet | SKU:
JT9-722150

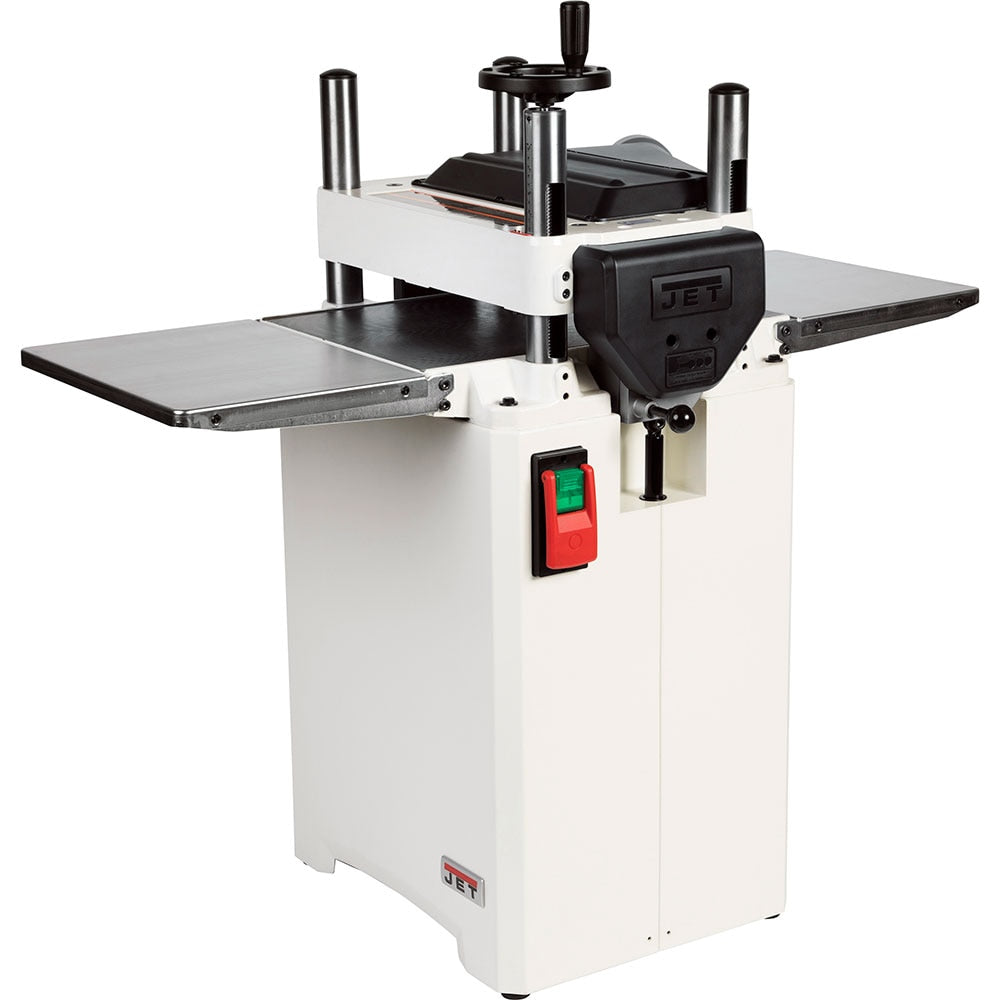

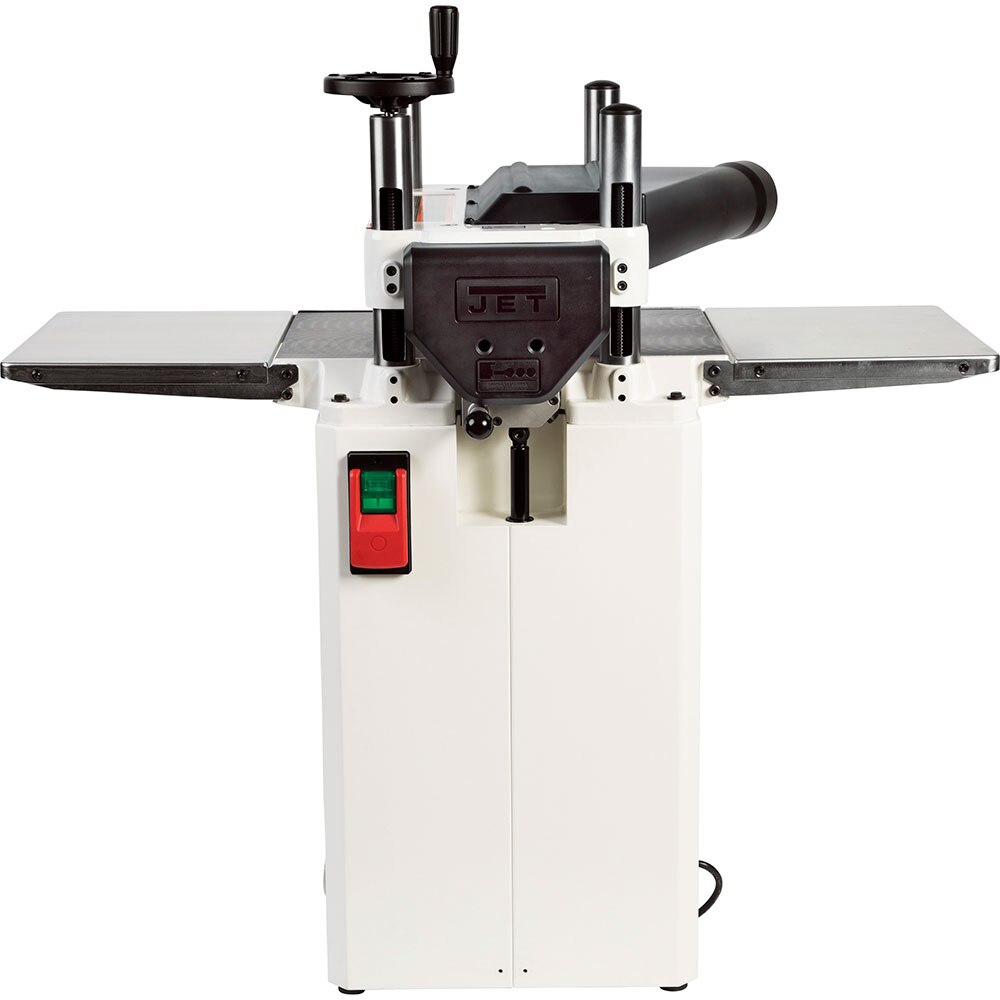

Jet JT9-722150 JWP-15B, 15" JET Straight Knife Planer
Black Friday Sale
Free Shipping
$2,039.99
$2,399.99
Unit price
/
Unavailable
Description
Description
Jet 722150 Description
The New Jet 15" Straight Knife Planer Delivers The Power And Efficiency That Woodworkers Demand In The Shop. Features Include A Straight Knife Cutterhead With 3 High-Speed Steel Precision Sharpened Blades, Innovative Precision Air Strut System Pass™, Rugged 4 Post Design, Adjustable Folding Tables, 2 Infeed Speeds And A Heavy-Duty Cast Iron Base Mounted To A Closed Steel Cabinet.
Jet 722150 Includes
- (1) Straight Knife Planer
- (3) Straight Knives
Jet 722150 Features
- Innovative Jet - Precision Air Strut System (Pass™) Provides Consistent Upward Pressure On The Cutterhead, Reducing The Chance Of Board Snipe

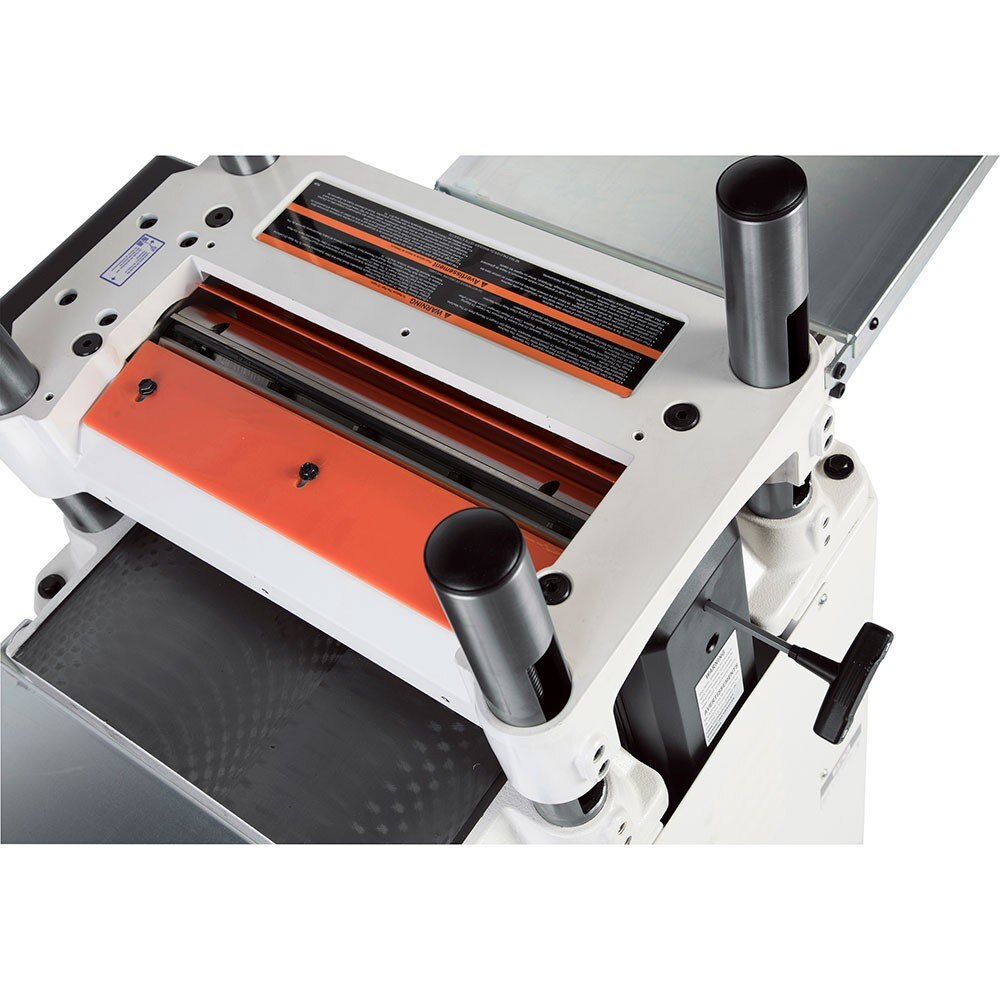

- Straight Cutterhead Has Three High-Speed Steel Knives That Lock Firmly In Place To Prevent Movement While In Use
- Heavy-Duty Precision Ground Cast Iron Table And Four Post Design Provides Maximum Control And Support When Passing Boards Through Planer.
- Powerful 3-Hp Motor With V-Belt Transmission Reduces Vibration And Running Noise
- Dual Infeed Speed Control For 16Fpm Or 20Fpm, Maximizes Cut Efficiency
- Maximum Depth Of Cut 1/8", 6" Cutting Height And 15" Width Capacity

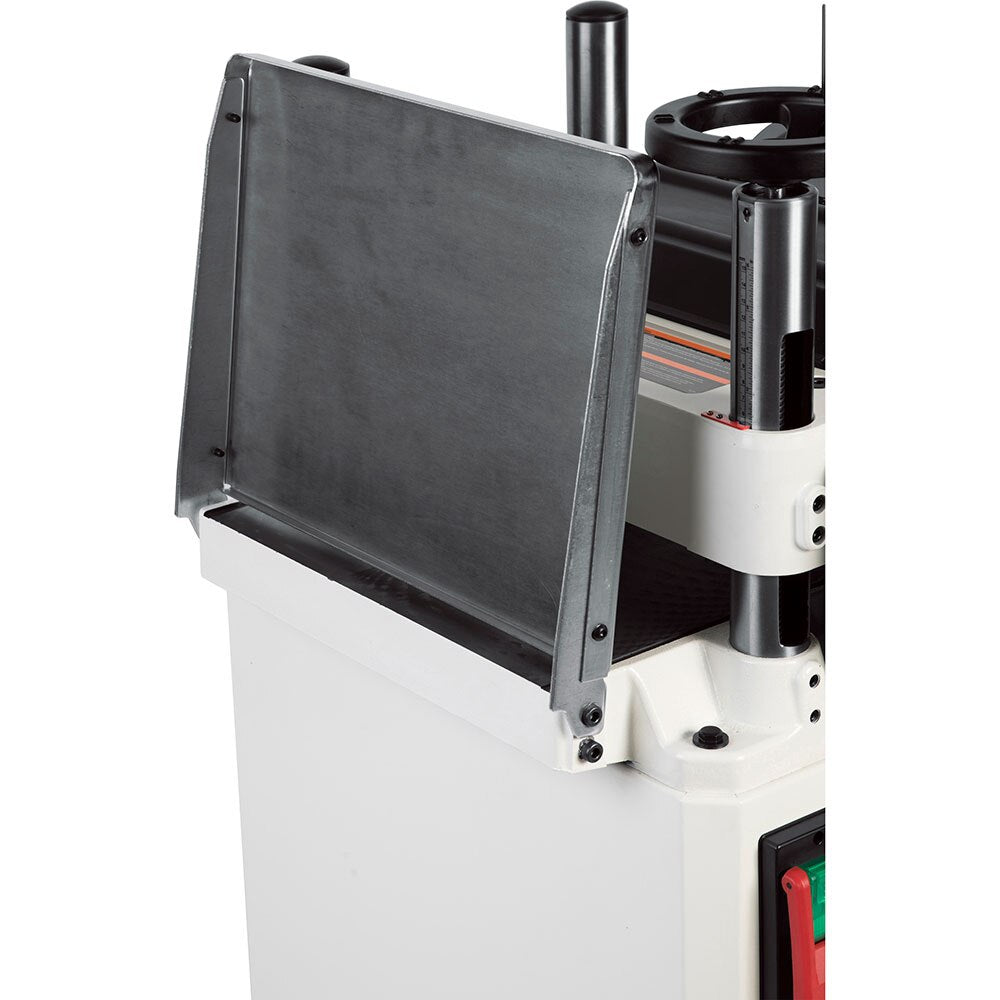

- Heavy-Duty Folding Infeed/Outfeed Tables Provide Support For Work Pieces And Fold For Convenience

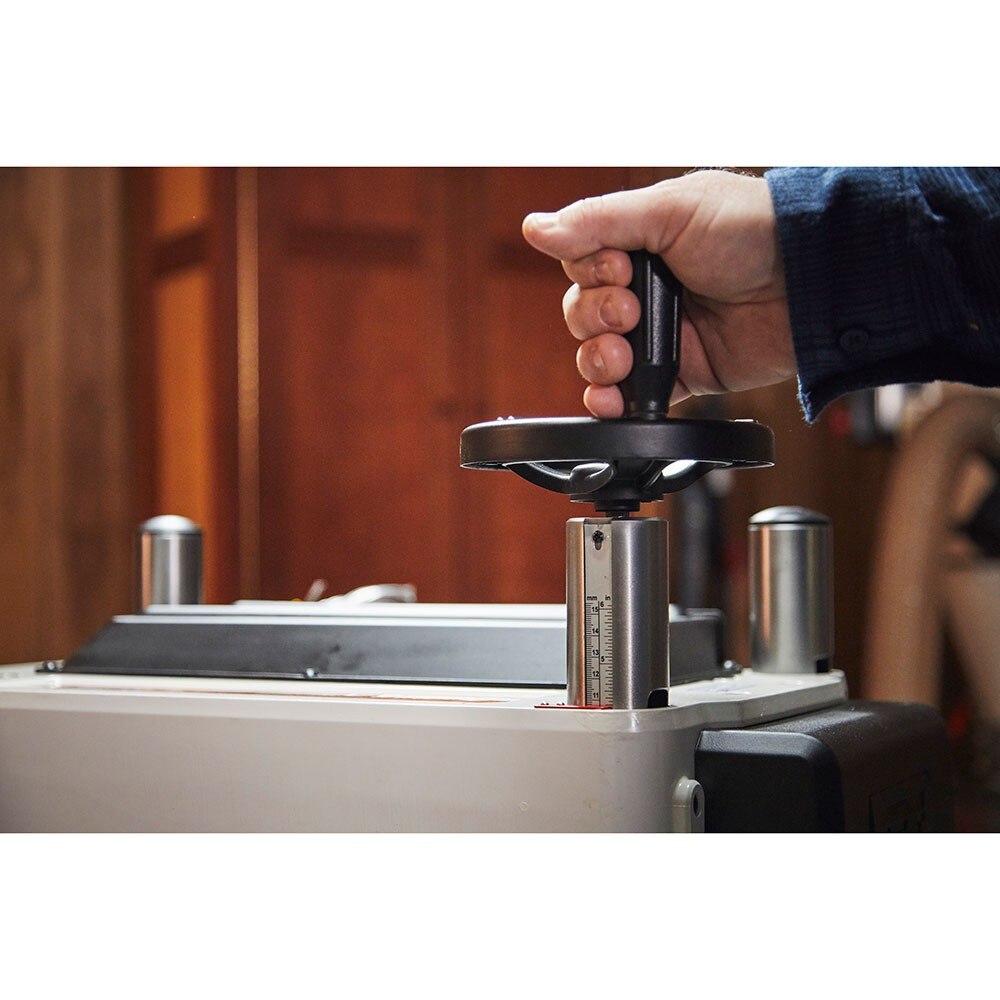

- Large Hand Wheel With Positive Gear Drive Easily Moves The Head To The Desired Board Thickness

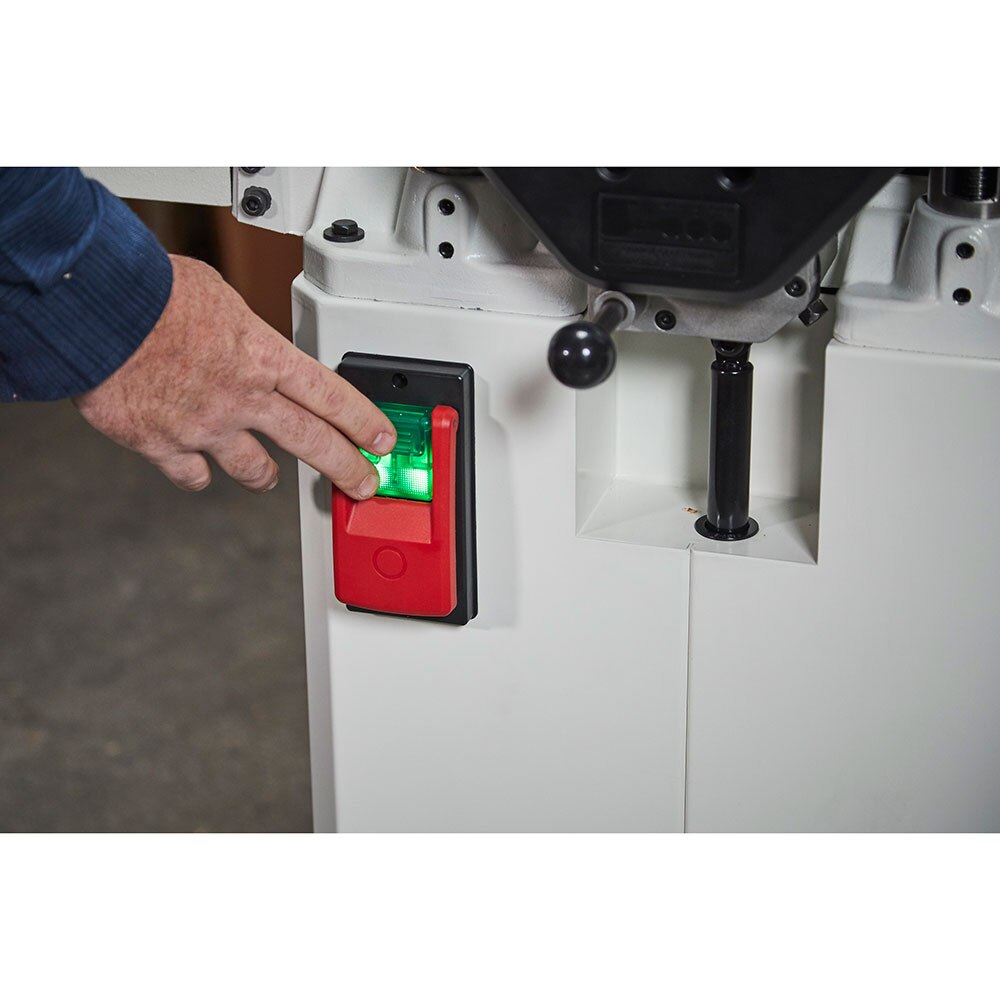

- Magnetic Switch With Green Safety Light Illuminates When Powered

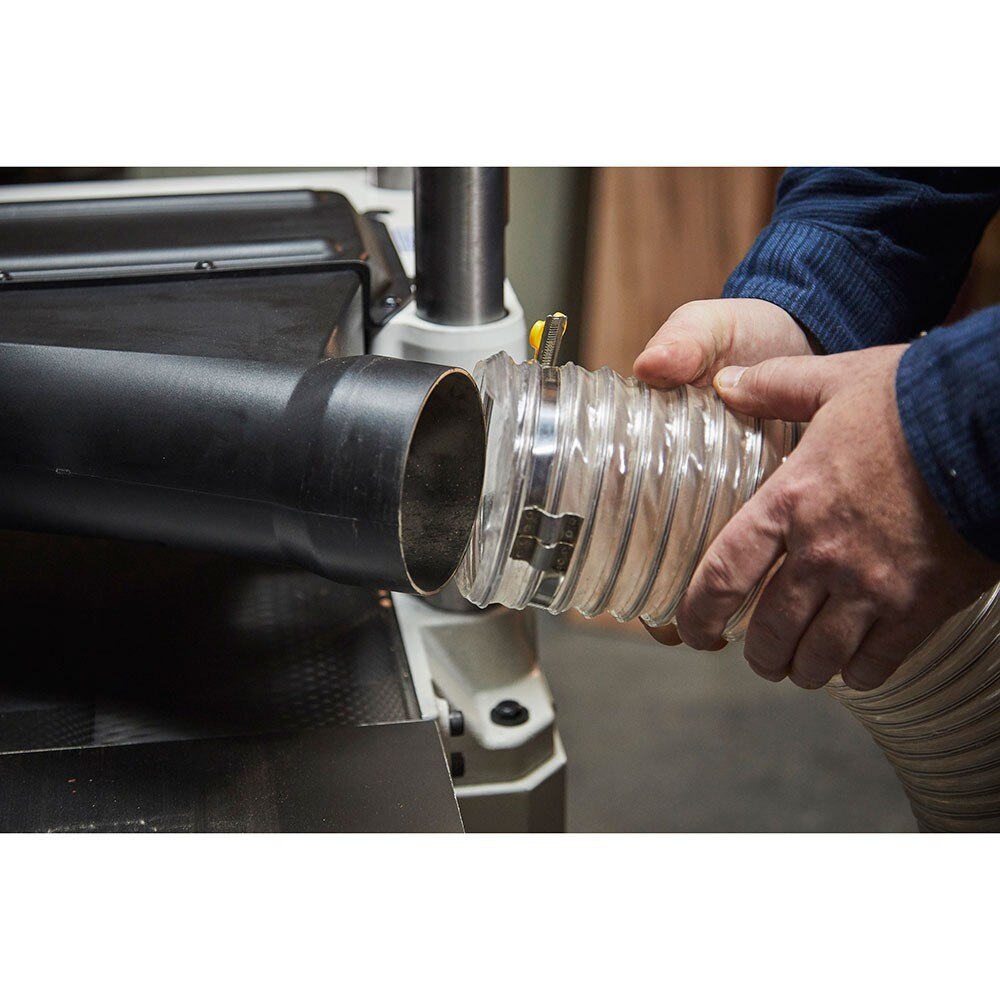

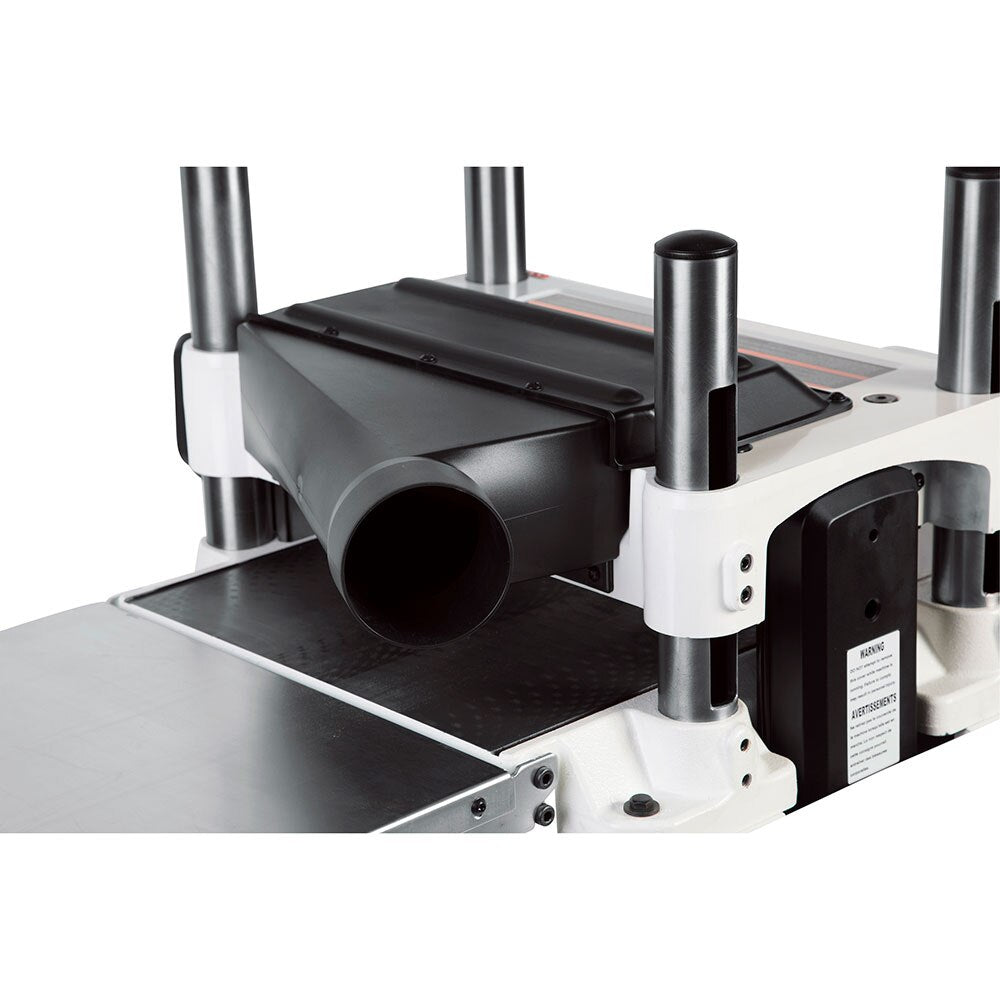

- 4" Dust Port Hooks Up To Dust Management System And Helps Keep Shop Clean
Jet 722150 Specifications
| Height | 44.88" |
| Length | 29.92" |
| Volume | 20.803 |
| Width | 26.77" |
| Prop 65 | Cancer and Reproductive Harm |
| Cutterhead Speed (RPM) | 5,200 |
| Maximum Depth of Cut | 3/16" |
| Feed Rate (FPM) | 16 and 20 |
| Motor Power (HP) | 3 |
| Dust Collection Minimum CFM Required | 600 CFM |
| Number of Speeds | 2 |
| Number of Knives | 3 |
| Maximum Planing Thickness | 6" |
| Cutterhead Diameter | 2-5/8" |
| Motor Amps | 15 |
| Dust Port Outside Diameter | 4" |
| Motor Phase (PH) | 1 |
| Table Size with Extensions (L x W) | 15 x 21.45 in. |
| Type of Cutterhead | Straight Knife |
| Maximum Planing Width | 15" |
